Description

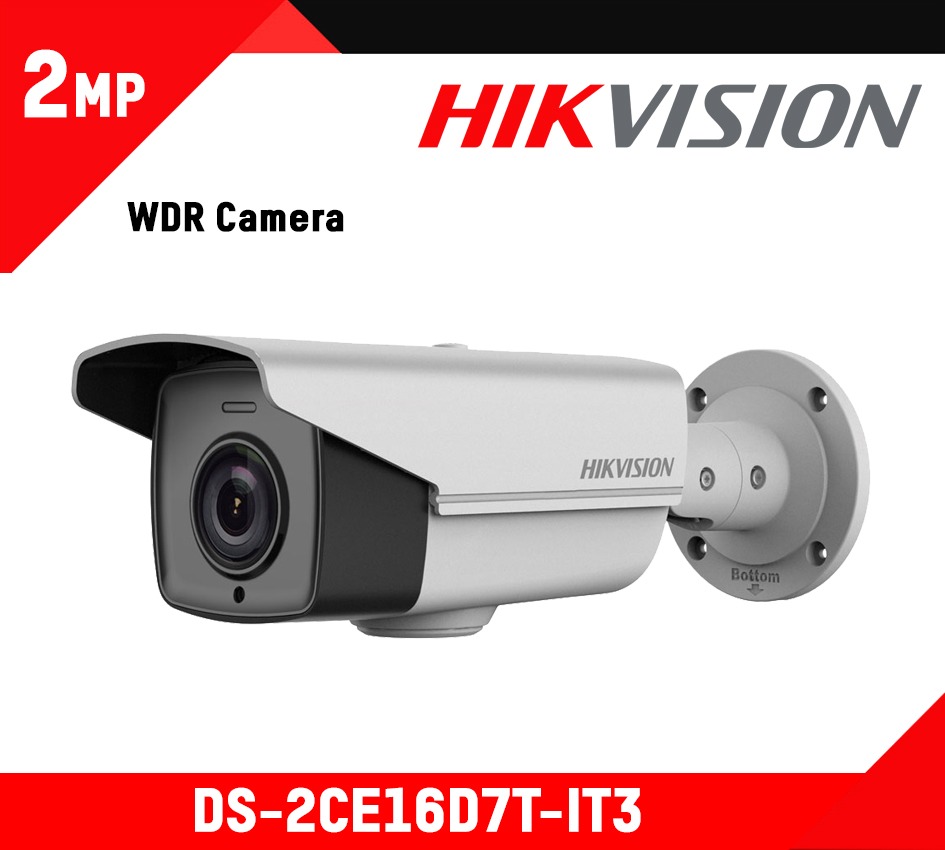

DS-2CE16D7T-IT3 – Product Description
| Model | DS-2CE16D7T-IT3 |
|---|---|
| Image Sensor: | 2MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 1928(H)*1088(V) |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.3°(12mm), 18.8°(16mm) |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° – 360°; Tilt:0° – 90°; Rotate: 0° – 360° |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120dB |
| Video Frame Rate: | 720p@25fps/720p@30fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| S/N Ratio: | More than 62 dB |
| D/N Mode: | Color/BW/SMART |
| Auto White Balance: | Auto/MWB |
| BLC: | Support |
| AGC: | Support |
| Language: | English/Chinese |
| Function: | Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±15% |
| Power Consumption: | Max. 5W |
| Weather Proof: | IP66 |
| IR Range: | Up to 40m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″) |
| Weight: | Approx. 680g (1.5lb) |
