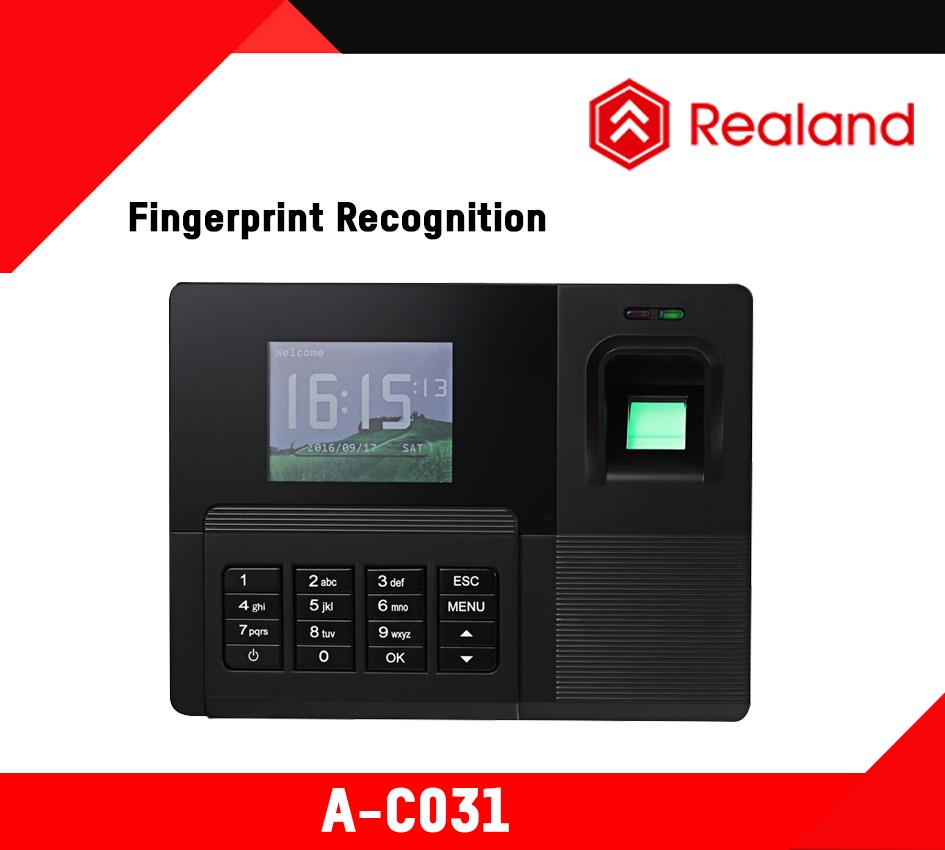

A-C031
A-C031
Availability: not in Stock

A-C031

REALAND

Key Features

  • With the most advanced fingerprint arithmetic in the world automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 0.8 second.
  • Built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination.
  • 2.8 inch TFT color screen
  • Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
  • TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
  • Supports 11 digits for user ID registration, user also could enroll mobile number for ID numbers.
  • Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,500 enrollment and 100,000 records. Warning function for full records and inquiry log functions.
  • Support multi development language(VB, C++, C#,Delphi ect) SDK, and ODM/OEM software development
  • Support English, Germany, Spanish ect different languages.

Description

Model A-C031
LCD Screen 2.8 inch TFT Color Screen
Fingerprint Sensor Resolution 500DPI (Optical sensor)
Hardware Platform REALANDRZDC2911
Algorithm Version REALANDRRSFv5.1
CPU ARM926EJ CPU, Running Frequency:  200MHZ
Communication TCP/IP, USB Memory Disk, USB cable
User Capacity 2,000
Records Capacity 100,000
Software OS XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
Identification Time < 1 S
Authentication Method Fingerprint/ RFID Card (125Khz, EM4100) /Password
Language Chinese / English / Spanish/Arabic/ German (could customize others)
Bell Built-in timing bell
Operation Mode Off-line/Online
Power DC 12V/0.5A
FRR <1%
FAR <0.00001%
Operating Mode Off-line/On-lin
Authentication Mode 1:1, 1:N
Operating environment Operating Temp: 0ºC-50ºC, Humidity:80%
Certificates CE, Type Inspection Report of Chinese Police Product
Dimension(L*W*H)mm Terminal – 180*134*36mm
Package – 325*105*258 mm
Weight Terminal – 0.356 Kg
Package – 0.865Kg
