Description

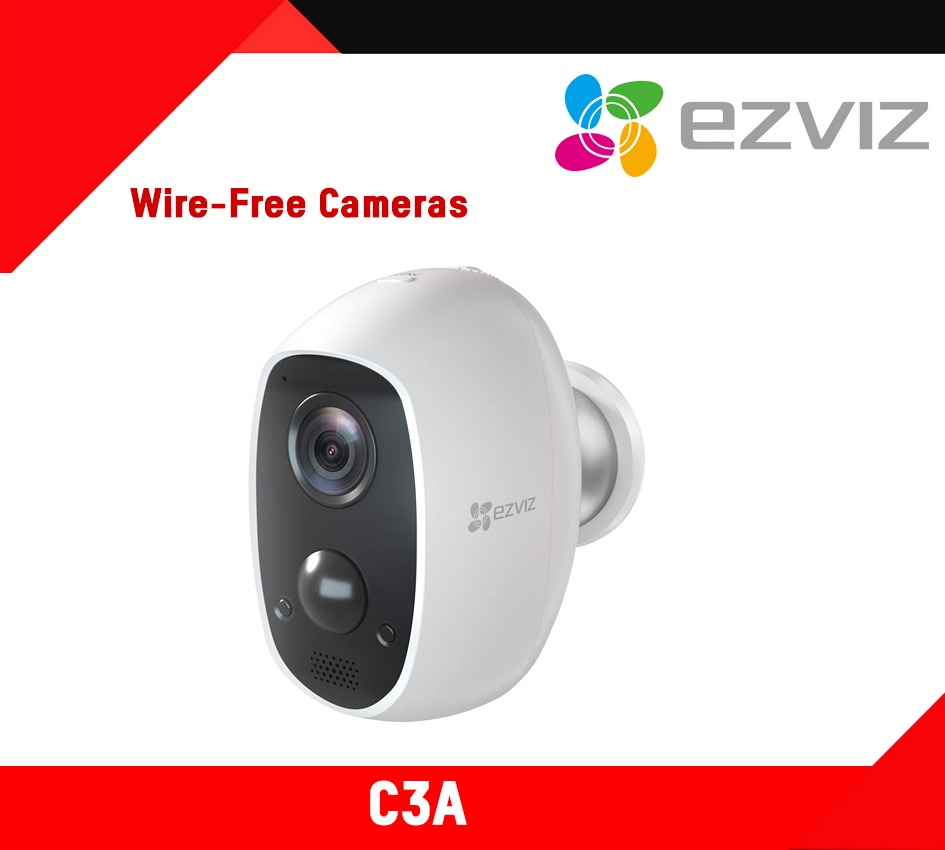

| Model | C3A |
|---|---|
| System Parameters | |
| Processor | High-Performance Embedded SOC Processor |
| Operation System | Embedded RTOS |
| Camera Parameters | |
| Image Sensor | 1/4” 2-Megapixel sensor |
| Field of View | Diagonal FOV 125° |
| Night Vision | Up to 7.5 meters |
| Video Parameters | |
| Compression Standard | Smart H.264 |
| Max. Resolution | 1920 × 1080, FHD |
| Frame Rate | Max. 15fps Adaptive frame rate of network transmission |
| DNR | 3D DNR |
| WDR | DWDR |
| BLC | Support |
| Audio Parameters | |
| Audio Input | Built-in omni-direction microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression |
| Network Parameters and Storage | |
| Wireless | Built-in 2.4G Wi-Fi |
| Network Configuration | AP Pairing |
| Minimum Network Requirement | 2Mbps |
| Local Storage | Support Micro SD Card (Up to 128GB) |
| Cloud Storage | EZVIZ Cloud Storage |
| Event | |
| Sensor | PIR Motion Detection Sensor |
| Alarm | Customized Alert Area |
| Siren | N/A |
| General | |
| Operating Conditions | -4 ~ 113ºF (-20 ~ 45ºC), Humidity 95% or less |
| Power Supply | 5500mAh Rechargeable Lithium Battery or 5V DC |
| Power Consumption | Max. 5W |
| Ingress Protection Grade | IP65 |
| Product Dimensions | 56.08mm x 70.02mm x 92.09mm |
| Packaging Dimensions | 118.5mm x 130mm x 215mm |
| Weight (g) | 215g |
