Description
Datasheet: C3C
User Manual: C3C

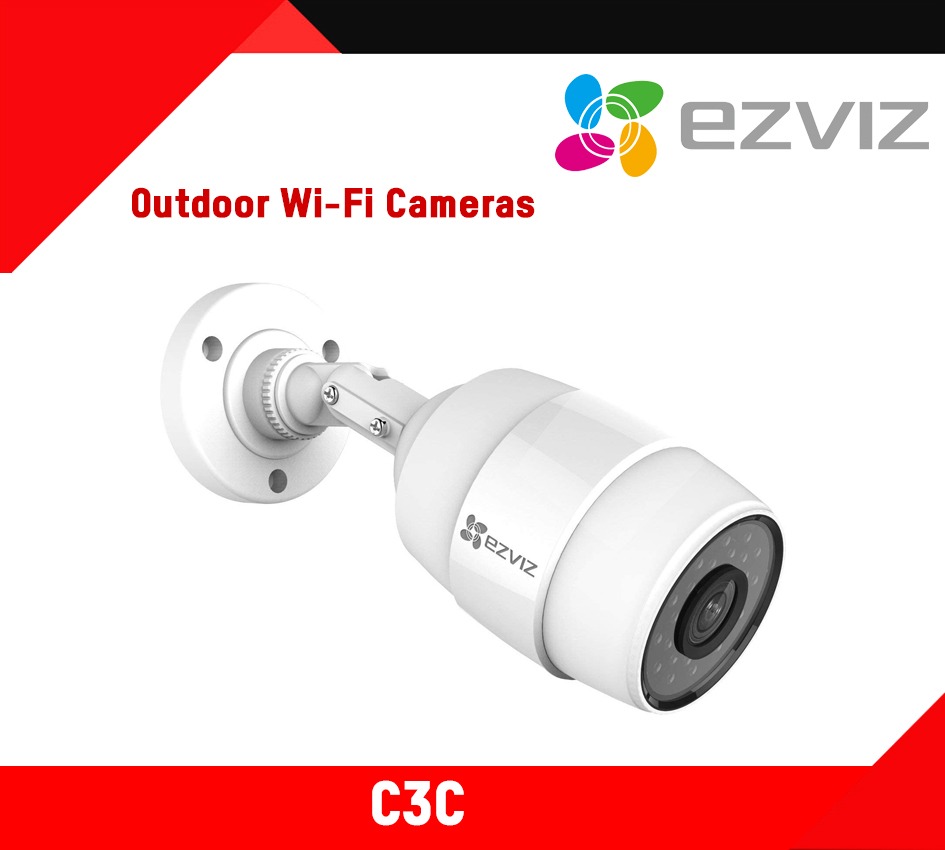

| Model | C3C |
|---|---|
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Minimum Illumination | 0.02 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm Diagonal angle: 114°, 4mm Diagonal angle: 94° |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264 |
| H.264 Type | Main profile |
| Video Bit Rate | Hi-Def, Standard and Basic. Adaptive bit rate. |
| Image | |
| Max. Resolution | 1280×720 |
| Image Settings | Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio) |
| BLC | Support |
| Network | |
| Storage | Support Micro SD card (Max. 128G) |
| Smart Alarm | Motion Detection |
| Wi-Fi Pairing | SmartConfig (Wi-Fi One-Key Configuration) |
| Protocol | EZVIZ Cloud proprietary protocol |
| Interface Protocol | EZVIZ Cloud proprietary protocol |
| General Features | Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Minimum Network Requirements | 1Mbps |
| Wi-Fi (for Wi-Fi-supported devices) | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| General | |
| Operating Conditions | -30°C ~ 60°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V±10% Or PoE (Power over Ethernet) (Optional) |
| Power Consumption | Max. 5W |
| IP Grade | IP66 |
| IR Range | Max. 30 meters |
| Product Dimensions | 176.3mm × 83.5mm × 69.8mm |
| Packaging Dimensions | 252mm x 92mm x 90mm |
| Weight | 331g |
