Description
Datasheet: C3N
User Manual: C3N

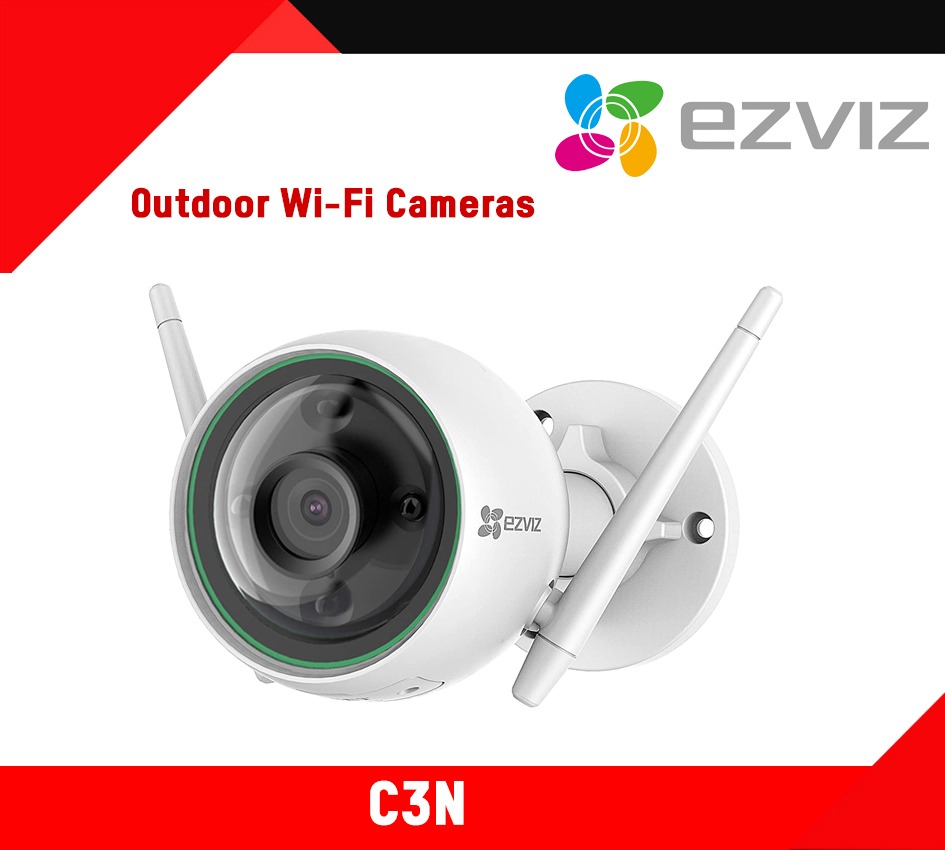

| Model | C3N |
|---|---|
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm @ F2.0, view angle: 104° (Horizontal), 125° (Diagonal) 4 mm @ F2.0, view angle: 86° (Horizontal), 102° (Diagonal) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264 / H.265 |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max: 30 fps; Self-adaptive during network transmission |
| BLC | Supports |
| Interface | |
| Storage | Micro SD card slot (max. 256 GB) |
| Wired Network | RJ45 × 1 (10 M/100 M Self-adaptive Ethernet port) |
| Network | |
| Smart Alarm | AI-powered person detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Max. Bitrate | 2 Mbps |
| Wi-Fi | |
| Standard | IEEE802.11 b/g/n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps |
| General | |
| Operating Conditions | Temperature: -30°C to 60°C (-22°F to 140°F), humidity: 95% or less (non-condensing) |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 7W |
| IP Grade | IP67 |
| Night Vision Distance (Black/White Night Vision Mode) | Max. 30 meters (98.43 ft.) |
| Audio Reception | Max. 5 meters (16.4 ft.) |
| Dimensions | 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch) |
| Packaging Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight | 422 g (0.93 lbs) |
| Certifications | |
| Certifications | CE / WEEE / REACH / ROSH / FCC / UL |
