Description
Datasheet: C3X
User Manual: C3X

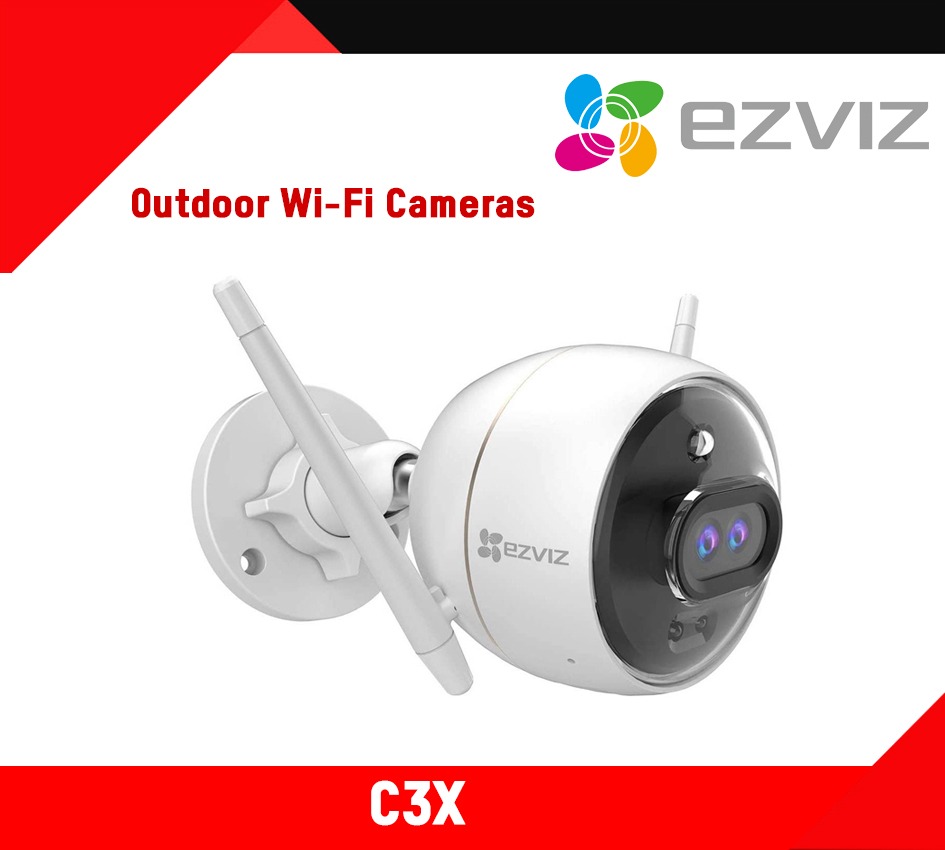

| Model | C3X | |
|---|---|---|
| Camera | ||
| Image Sensor | 1/2.7″ Progressive Scan CMOS | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 4 mm @ F1.6, view angle: 89° (Horizontal), 106° (Diagonal) | |
| Min. Illumination | color night vision, 0.005 lux | |
| Lens Mount | M8 | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Compression | ||
| Video Compression | H.264 / H.265 | |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. | |
| Image | ||
| Max. Resolution | 1920 × 1080 | |
| Frame Rate | 50Hz: 25fps; Self-Adaptive during network transmission | |
| BLC | Supports | |
| Interface | ||
| Storage | MicroSD card slot (Max. 256 GB) | |
| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) | |
| Network | ||
| Smart Alarm | Motion detection, human shape detection, vehicle shape detection | |
| Setup Motion Detection Area | Supports | |
| Wi-Fi Pairing | AP paring | |
| Protocol | EZVIZ cloud proprietary protocol | |
| Interface Protocol | EZVIZ cloud proprietary protocol | |
| Wi-Fi | ||
| Standard | IEEE802.11b/g/n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20 MHz | |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK | |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps | |
| General | ||
| Power Supply | DC 12V±10% | |
| Power Consumption | Max. 12W | |
| IR Range | Max. 30 meters (98.43 feet) | |
| IP Grade | IP67 | |
| Dimensions | 72 x 72 x 150 mm (2.83 x 2.83 x 5.9 inch) | |
| Packaging Dimensions | 253.5 x 111.5 x 93.5 mm (9.98 x 4.39 x 3.68 inch) | |
| Weight | 425g (0.94 lb) | |
| Package Contents | ||
| Package Contents | C3X Camera; Drill Template; Screw Kit; Waterproof Kit; Power Adapter 1.5 m (4.9 ft.); Quick Start Guide | |
| Operating Environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F ) | |
| Humidity | 95% or less (non-condensing) | |
| Certificates | ||
| Certificates | UL / FCC / CE / WEEE / REACH / RoHS | |
