Description

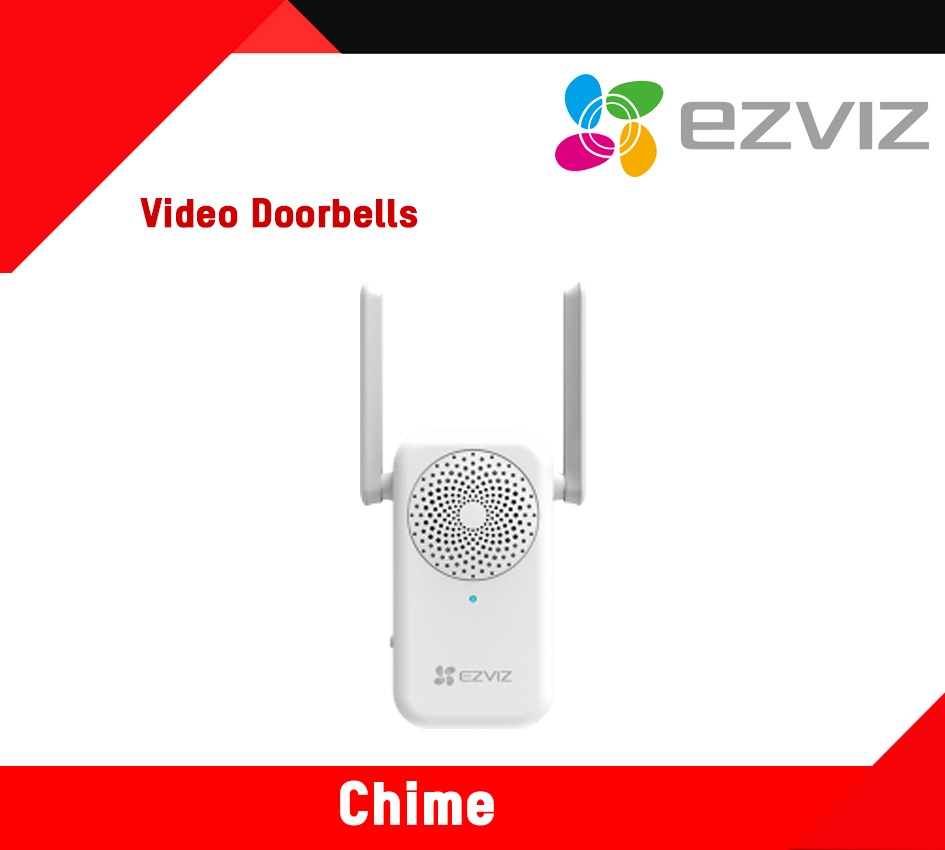

| Model | Chime |
|---|---|
| Network | |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Interface | |
| Storage | NO |
| Wired Network | Does not support |
| Power Supply Interface | European standard, two-wire plug with two round pins |
| Wi-Fi | |
| Wi-Fi Standard | IEEE802.11b / g / n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :144Mbps |
| Antennas | Dual external antennas |
| General | |
| Operating Conditions | Temperature: -10°C to 40°C (14°F to 104 °F ), Humidity: 95% or less (non-condensing) |
| Power Supply | 220V AC |
| Power Consumption | Max 0.6W |
| Dimension | 100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch) |
| Weight | 120 g(0,26lb) |
| Packaging Dimensions | 172.5 x 102 x 97 mm (6.79 x 4.02 x 3.82 inch) |
| Transformer | |
| Rated Input Voltage | 230V AC |
| Output Voltage | 8-24V AC |
| Rated Output Power | 8VA |
| Mounting | Card rail mounting |
| Dimension | 35 × 81 × 68 mm (1.38 × 3.19 × 2.68 inch) |
| Certifications | |
| Certifications | UL / FCC / CE / WEEE / REACH / RoHS |
