Description
Datasheet: DB1
User Manual: DB1

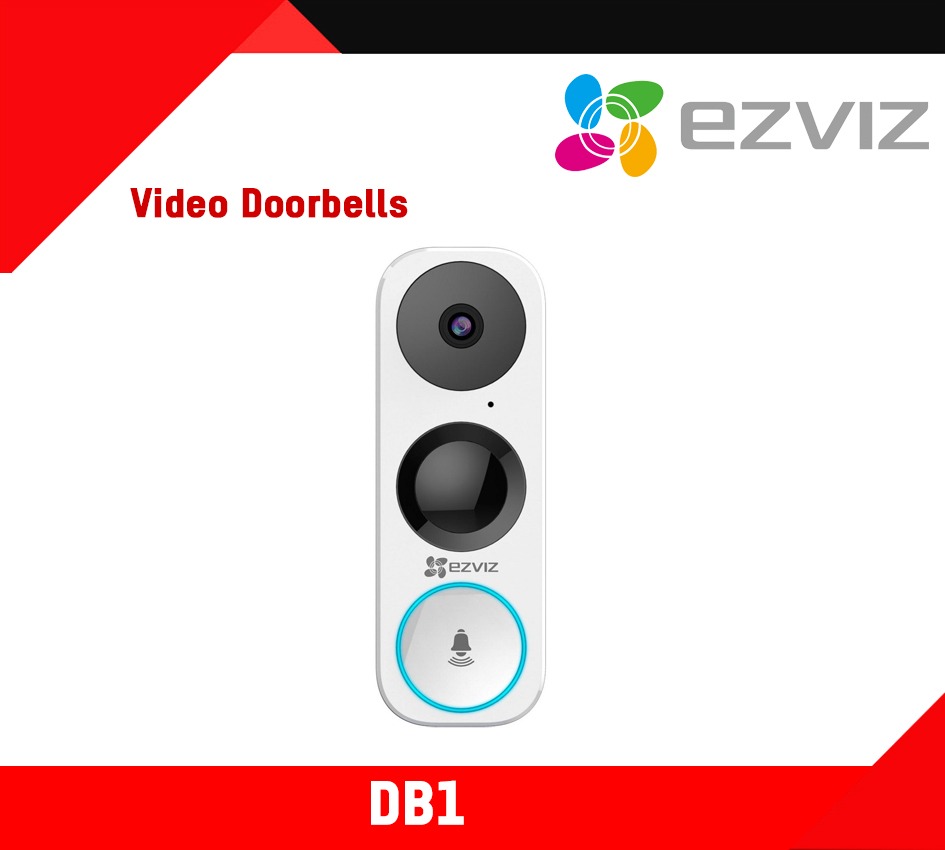

| Model | DB1 |
|---|---|
| System | |
| Processor | High-Performance Embedded SOC Processor |
| Operation System | Embedded RTOS |
| Camera | |
| Sensor | 1/2.8″ 3-Megapixel starlight sensor |
| Lens | 2.2mm@F2.4 |
| Field of View | Vertical FOV 180°, Horizontal FOV 105° |
| Night Vision | Up to 5m/16ft |
| Video | |
| Compression Standard | Smart H.264 |
| Max. Resolution | 2048*1536, QXGA |
| Frame Rate | 60Hz @ 30fps, Adaptive frame rate of network |
| DNR | 3D DNR |
| WDR | DWDR |
| BLC | Support |
| Audio | |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loud speaker |
| Audio Quality | Noise suppression and echo cancellation |
| Network and Storage | |
| Wireless | Built-in 2.4GHz & 5GHz Wi-Fi |
| Network Configuration | AP Pairing |
| Minimum Network Requirements | 2Mbps |
| Local Storage | Support microSD card (Up to 128GB) |
| Cloud Storage | EZVIZ Cloud Storage |
| Event | |
| Sensor | PIR Motion Detection Sensor |
| Alarm | Customized Alert Area |
| General | |
| Power Supply | 12VAC ~ 24VAC |
| Power Consumption | Max. 5W |
| Weatherproof | IP65 |
| Product Dimensions | 130mm x 46mm x 21mm |
| Packaging Dimensions | 250mm x 192mm x 75.5mm |
| Weight | 0.28lb (125g) |
| Operating Conditions | -30ºC ~ 60ºC, Humidity 95% or less (no condensation) |
