DS-1H34-0102P

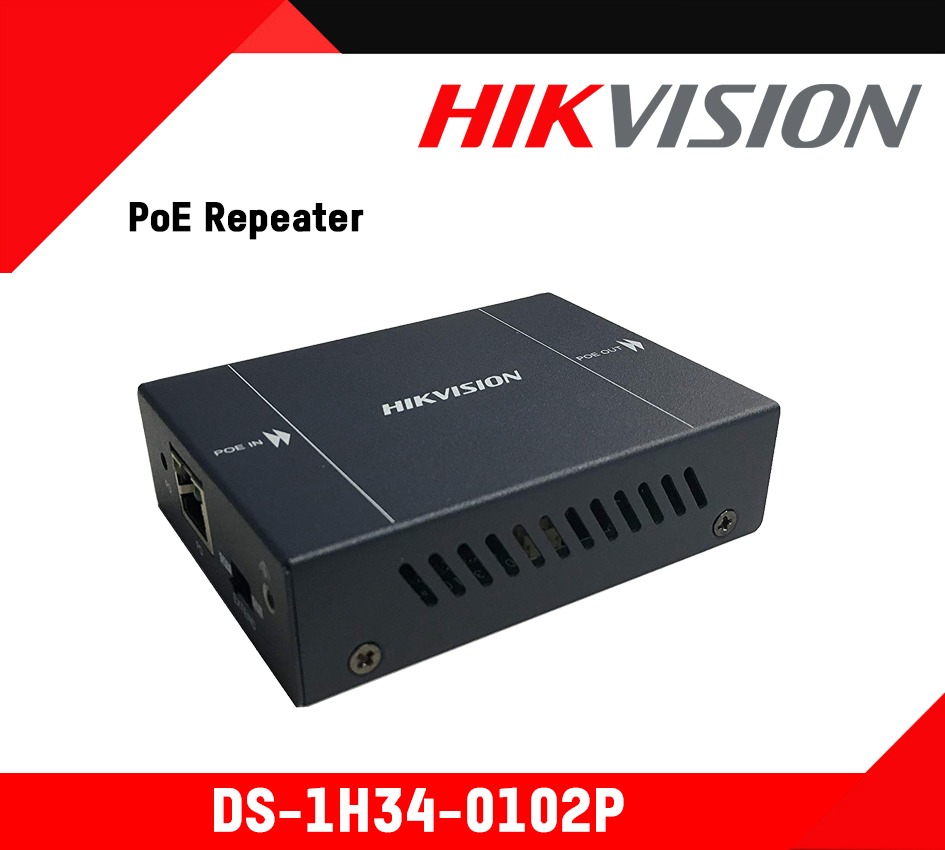

DS-1H34-0102P Hikvision PoE Repeater Colombocctv.com Srilanka
DS-1H34-0102P
Availability: not in Stock

DS-1H34-0102P

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • 1-ch input and 2-ch output PoE relay function
  • Supports EXTEND mode of PSE (Power Sourcing Equipment) output interface: the transmission distance of a single-stage network can be extended to 250 meters when EXTEND mode is enabled
  • Uses standard Cat. 5e twisted pair. For 10/100 Mbps mode, the repeater supports 4-stage cascade and the max. transmission distance reaches 500 meters (terminal power consumption < 5W). For EXTEND mode, the max. transmission distance reaches 400 meters (terminal power consumption < 5W)
Categories:

Description

Datasheet : DS-1H34-0102P
User Manual : DS-1H34-0102P

General
EFT Network port: ±2 KV
Dimensions(W*H*D) 71.6 × 26.1 × 95.5 mm (2.8 × 1.0 × 3.8 inch)
Working Temperature -30 ºC to +70 ºC (-22 ºF to +158 ºF)
Working Humidity 10% to 90%
Weight 0.3 Kg (0.7 lb)
MTBF 100000 hours
ESD Contact discharge: ±7 KV Air discharge: ±9 KV
Surge Power port: Line-to-ground: ±2 KV; Line-to-line: 1 KV Network port: Line-to-ground: ±4 KV
Consumption < 2W
Dimensions (W×H×D) 71.6 × 26.1 × 95.5 mm (2.8 × 1.0 × 3.8 inch)
External Interface
Audio Input/Output 1-ch 10/100BaseT(X) and IEEE 802.3at standard of PD connection.2-ch 10/100BaseT(X) and IEEE 802.3af standard of PSE outputs.
