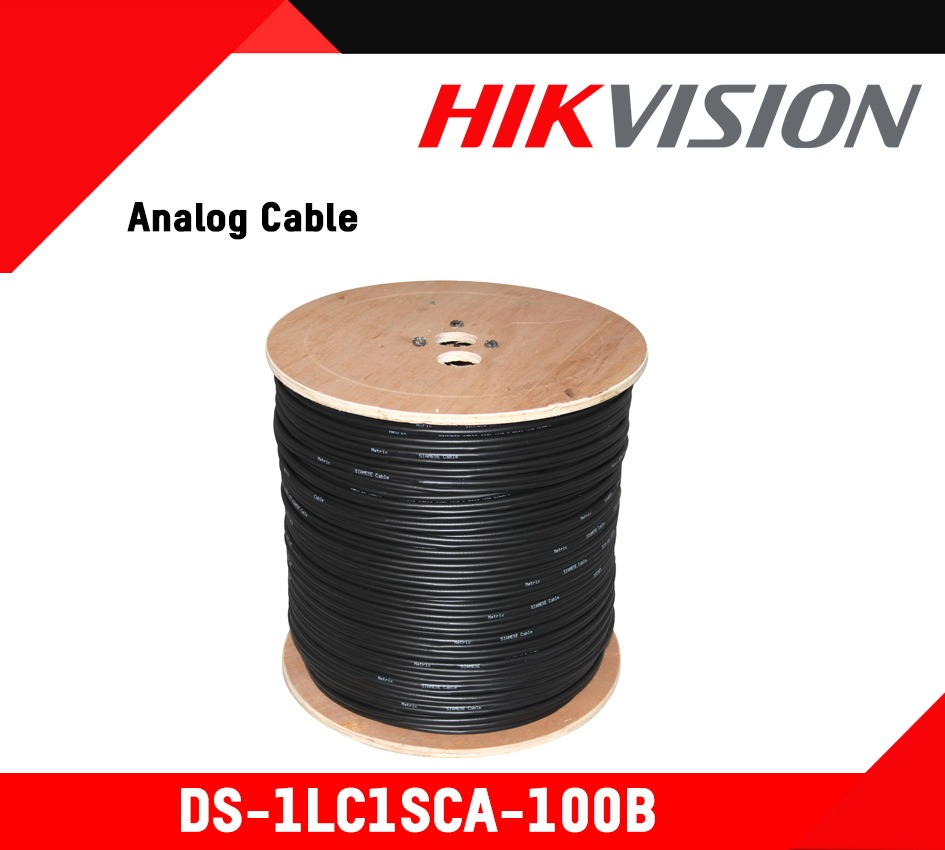

DS-1LC1SCA-100B

Vous êts ici:

DS-1LC1SCA-100B

Availability: not in Stock

DS-1LC1SCA-100B

Key Features

100m 3C-2V coaxial cable
Conductor material of Coaxial cable is Bare copper
Braiding material of Coaxial cable is Copper clad aluminum magnesium
Excellent anti-interference performance
Excellent anti-aging performance

Description

Description

Datasheet: DS-1LC1SCA-100B

General

Length: 100m
Impedance: 75ohms

Conductor

Material: Bare copper
Diameter: 0.51±0.005mm
Wire Gauge: 24AWG

Insulation

Material: FPE
Diameter: 3.0±0.1mm

Tape

Material: Copper foil

Braid

Material: Copper clad aluminum magnesium
Braiding Standard: 2*16*0.12mm ±0.008mm
Braiding Density: ≥90%

Jacket

Material: PVC
