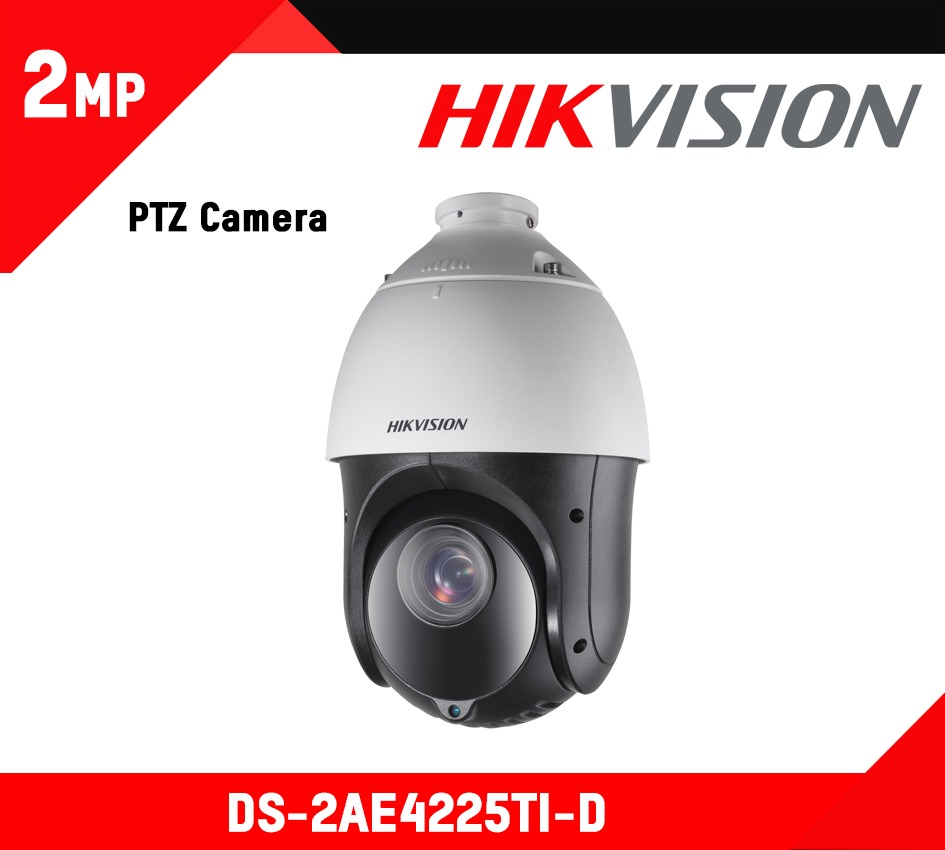

DS-2AE4225TI-D Hikvision 2MP PTZ Camera Colombocctv.com Srilanka
DS-2AE4225TI-D
Availability: not in Stock

DS-2AE4225TI-D

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • 1/2.8″ HD progressive scan CMOS
  • 1920 × 1080 resolution
  • 25× optical zoom
  • 120 dB true WDR (Wide Dynamic Range)
  • Up to 100 m IR distance
  • 3D intelligent positioning
  • Switchable TVI/AHD/CVI/CVBS video output

Description



Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
AGC: Auto/Manual
BLC: ON/OFF
WDR: ≥ 120 dB
Anti-shake: On / Off
Shutter Time: PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day& Night: ICR
Digital Zoom: 16x
Privacy Mask: 8 programmable privacy masks
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4.8 mm to 120 mm, 25× Optical
Zoom Speed: Approx. 3.2 s (optical, wide to tele)
Field of View: 57.6° to 2.5° (wide-tele)
Minimum Working Distance: 10 mm to 1500 mm (wide to tele)
Aperture Range: F 1.6 to F 3.5
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Range: -15°-90° (Auto Flip )
Tilt Speed: Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 256
Patrol: 10 patrols, up to 32 presets per patrol
Pattern: 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory: Support
Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Position Display: ON/OFF
Infrared
IR Distance: 100m
Input & Output
Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
UTC function: UTC protocol (or HIKVISION-C protocol in previous DVR)
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language: English
Power Supply: 12V DC
Power Consumption: Max.20 W (IR:7 W)
Working Temperature/Humidity: -30 °C-65°C(-22°F-149°F)
90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
