Description

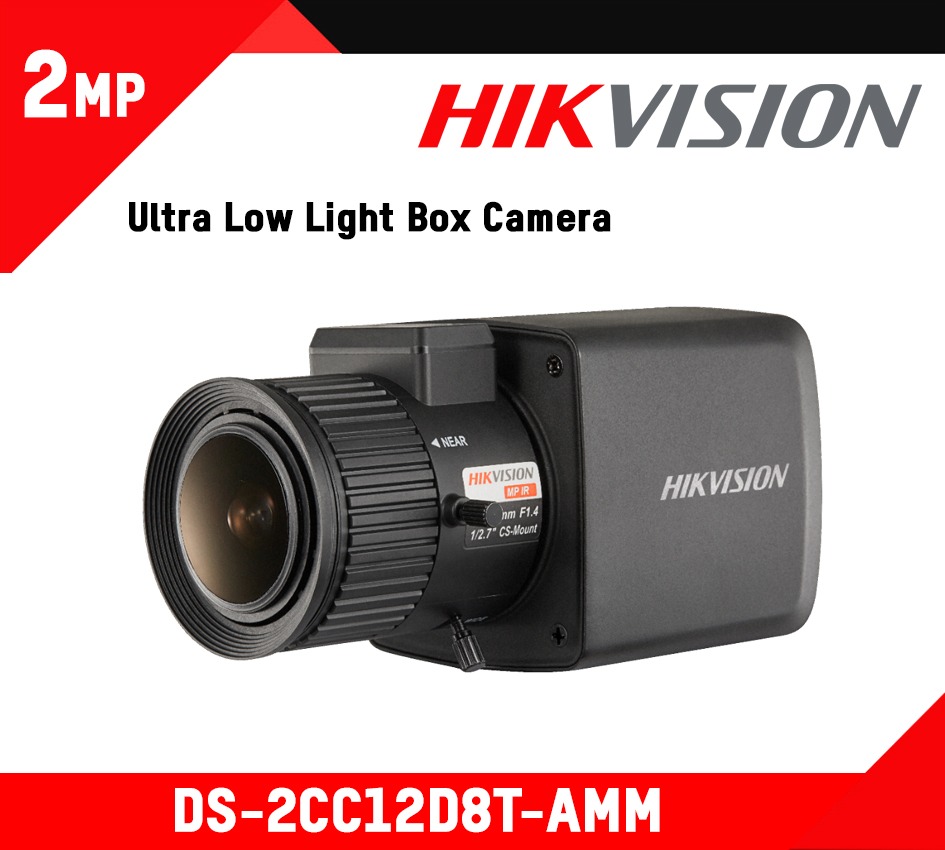

Datasheet: DS-2CC12D8T-AMM
User Manual: DS-2CC12D8T-AMM
Camera
- Image Sensor: 2.0 megapixel progressive scan CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Signal System: PAL/NTSC
Lens
- Lens Type: Fixed Lens
- Lens Mount: C/CS mount
- Iris Type: DC drive
- Image Settings: Brightness, sharpness, mirror
- Frame Rate: PAL: 1080p@25fps,NTSC: 1080p@30fps
- Wide Dynamic Range (WDR): ≥ 120 dB
- Image Enhancement: BLC
- Privacy Mask: ON/OFF, 4 programmable privacy masks
- Noise Reduction: Level 1 to 10
- White Balance: ATW/MANUAL
- AGC: Support
Interface
- Video Output: 1 HD analog output/1 CVBS output (75Ω/BNC)
Event
- Motion Detection: 4 programmable motion areas
General
- Material: Metal
- Dimension: 69.29 mm × 54 mm × 56 mm (2.73″ × 2.13″ × 2.2″)
- Weight: Approx. 175 g (0.39 lb.)
- Operating Condition: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 80% or less (non-condensation)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Language: English, Chinese
- Power Supply: 12 VDC ±25%,-A: 24 VAC ±25%
- Consumption: Max. 3 W
