Description

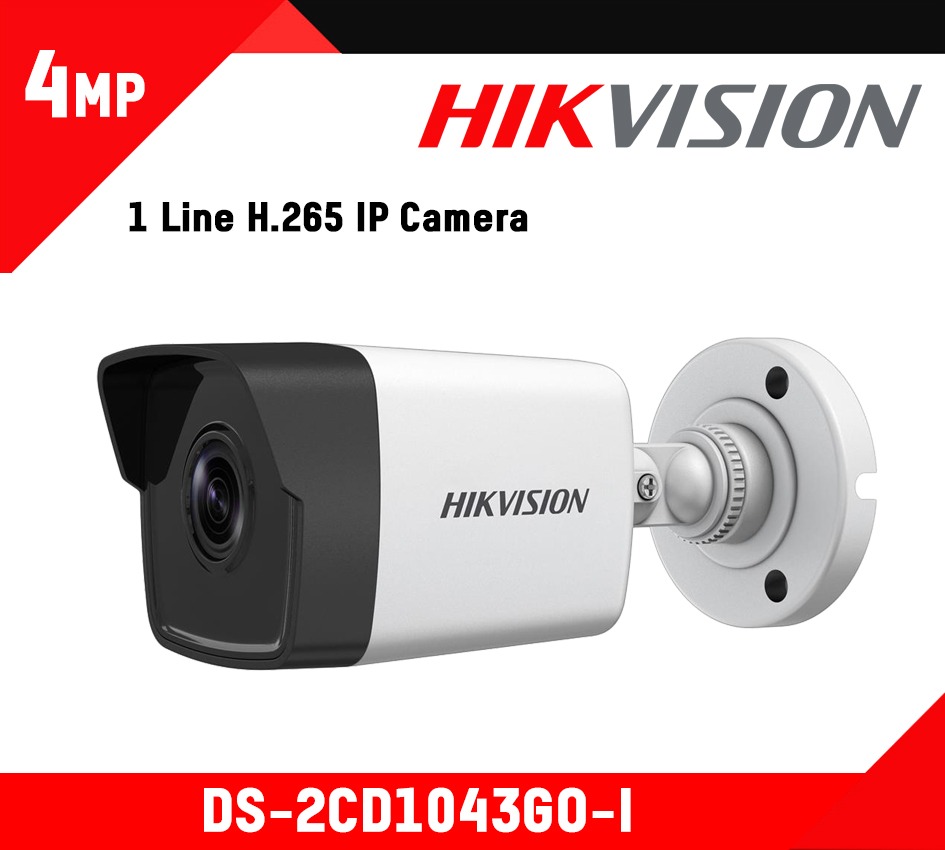

Datasheet: DS-2CD1043G0-I
Quick Start Guide: DS-2CD1043G0-I
User Manual: DS-2CD1043G0-I
Camera
- Image Sensor: 1/3″ progressive scan CMOS
- Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120 dB
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
- 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
- Lens Mount: M12
- Focus: Fixed
- Aperture: F2.0
Illuminator
- IR Wavelength: 850 nm
- IR Range: Up to 30 m
Video
- Max. Resolution: 2560 × 1440
- Main Stream
- 50 Hz: 20 fps (2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- 60 Hz: 20 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- H.264+: Main stream supports
- H.265+: Main stream supports
- Region Of Interest (ROI): 1 fixed region for main stream
Audio
- Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface, ISAPI
- User/Host: Up to 32 users. 3 levels: administrator, operator and user
- Client: iVMS-4200, Hik-Connect
- Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch: Auto, Schedule, Day, Night
- Image Enhancement: BLC, 3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
- Basic Event: Motion detection, video tampering, exception
General
- Linkage Method
- Upload to FTP, notify surveillance center, send email
- Camera Material: Metal & Plastic
- Camera Dimension: 177.6 mm × 66.2 mm × 67.8 mm (7.0″ × 2.6″ × 2.7″)
- Package Dimension: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
- Camera Weight: Approx. 270 g (0.6 lb.)
- With Package Weight: Approx. 490 g (1.1 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Web Client Language: English, Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Firmware Version: V5.5.120
- Power Consumption And Current: 12 VDC, 0.4 A, max. 5 W, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
- Power Supply: 12 VDC ± 25%, PoE: 802.3af, Class 3
- Power Interface: Ø5.5 mm coaxial power plug
Approval
- EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013)
