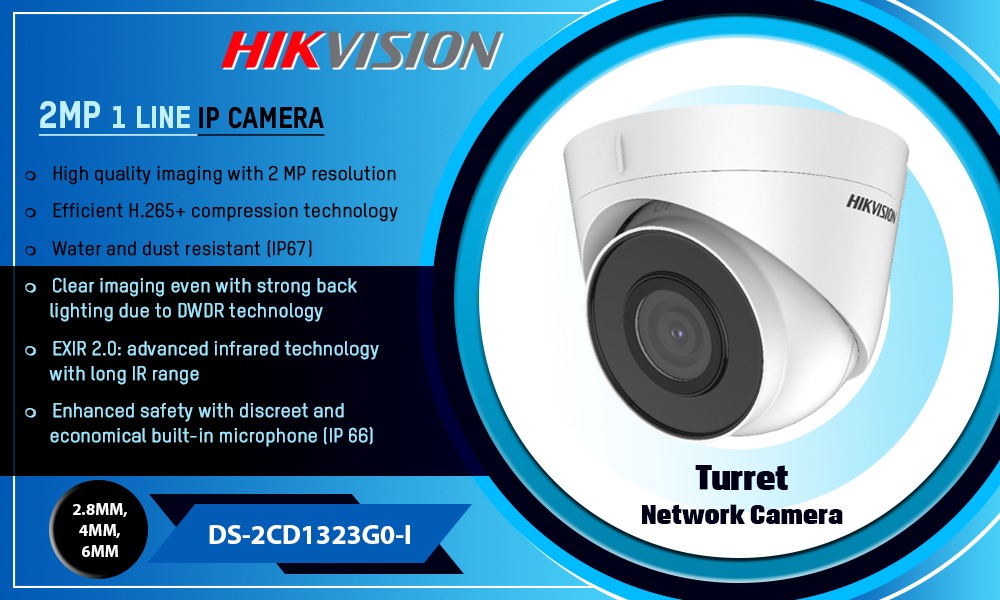

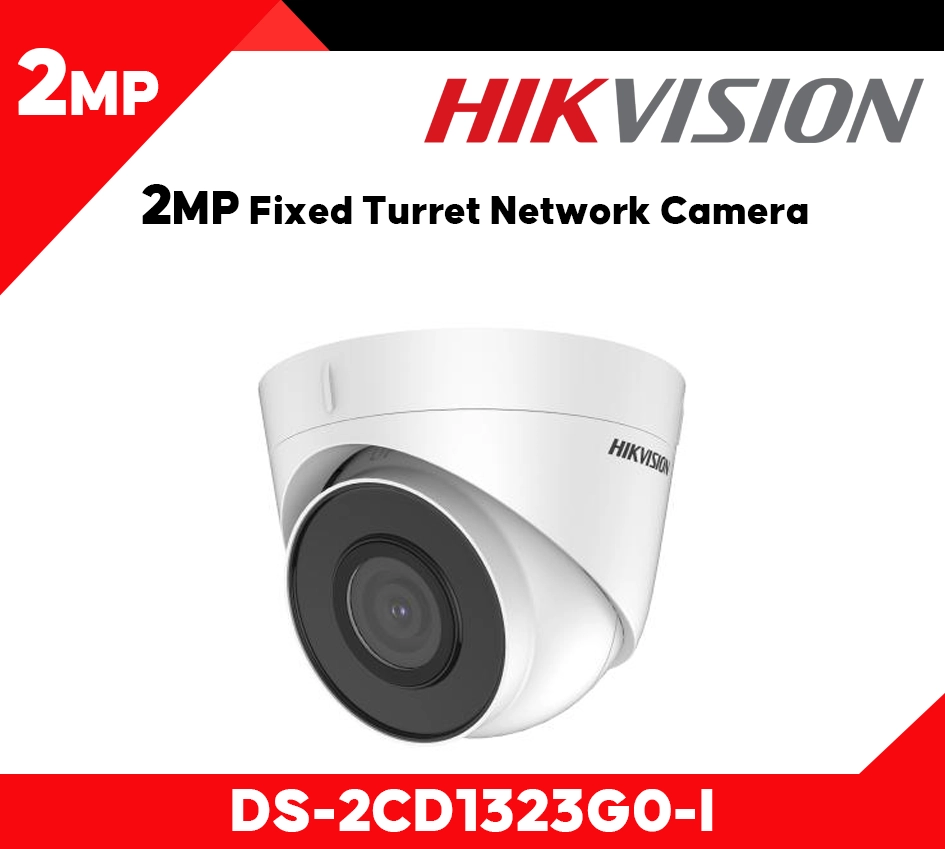

DS-2CD1323G0-I

Description

Quick Start Guide: DS-2CD1323G0-I

User Manual: DS-2CD1323G0-I

Camera

• Image Sensor: 1/2.8″ progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s
• Slow Shutter: Yes
• Day &Night: IR cut filter
• Wide Dynamic Range: Digital WDR
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
• DNR: 3D DNR

Lens

• Lens: 2.8 mm, 4 mm, 6 mm
• Auto-Iris: No
• Aperture: F2.0
• Focus: No
• FOV
  • 2.8 mm, horizontal FOV 114.5°, vertical FOV 62°, diagonal FOV 135.5°
  • 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
  • 6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
• Lens Mount: M12

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850 nm

Video

• Max. Resolution: 1920 × 1080
• Video Compression: Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-Set

• Region Of Interest: 1 fixed region for main stream and sub-stream


• Image Enhancement: BLC, 3D DNR
• Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, scheduled
• Main Stream Max. Frame Rate
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream Max. Frame Rate
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger: Motion detection, video tampering alarm, illegal login

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Compression Standard

• H.264+: Main stream supports
• H.265+ Main stream supports

General

• Firmware Version: 5.5.2
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Startup And Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Material: Metal & Plastic
• Dimensions: Camera: Ø 110 mm × 93.2 mm ( 4.3″ × 3.7″),With package: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight
  • Camera: approx. 360 g (0.8 lb.)
  • With package: approx. 610 g (1.3 lb.)
• Power Consumption And Current: 12 VDC, 0.4 A, max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
• Interface Protection: IP67
