Description

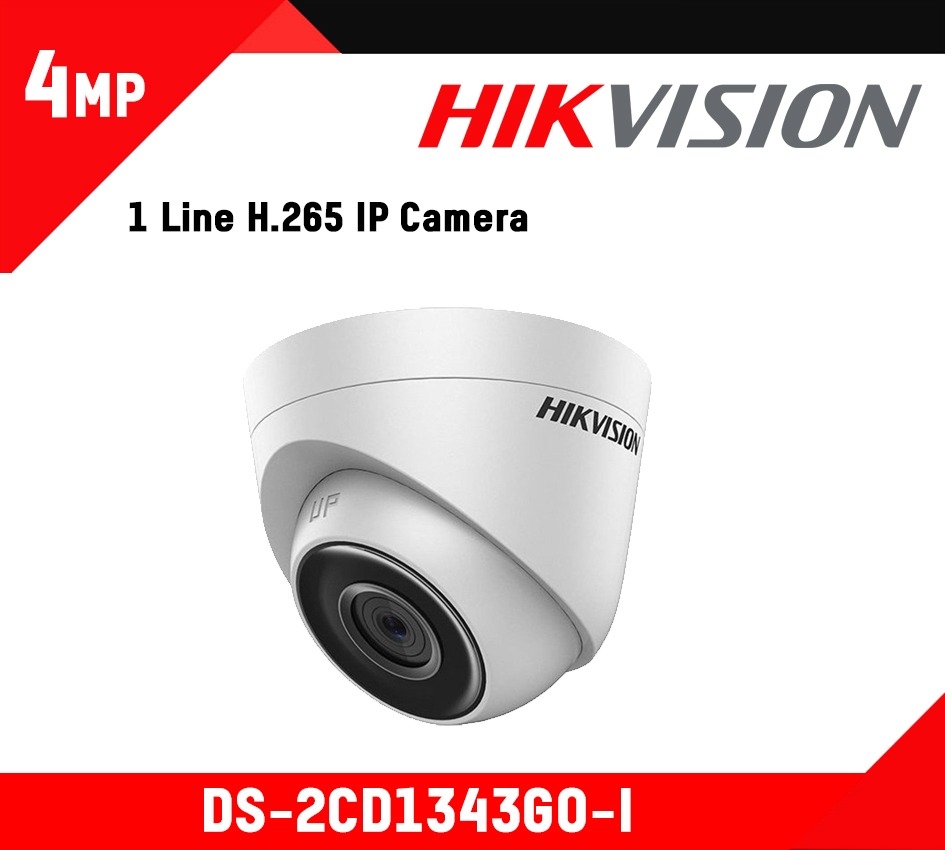

| Model | DS-2CD1343GO-I |
|---|---|
| CAMERA | |
| Image Sensor: | 1/3″ Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Focus: | Fixed |
| COMPRESSION STANDARD | |
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | 256Kbps~16Mbps |
| Triple Streams: | Yes |
| IMAGE | |
| Max. Image Resolution: | 2688 × 1520 |
| Frame Rate: | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: | BLC/3D DNR/ROI/HLC |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Target Cropping: | No |
| ROI: | 1 fixed region for main stream and sub-stream |
| Day/Night Switch: | Day/Night/Auto/Schedule |
| NETWORK | |
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
| INTERFACE | |
| Audio: | 1 audio input (built-in mic), mono sound(-U) |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
| SMART FEATURE-SET | |
| Behavior Analysis: | Line crossing detection, intrusion detection |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Recognition: | Face Detection |
| GENERAL | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | 12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W |
| Weather Proof: | Without -U: IP67 With -U: IP66 |
| IR Range: | Up to 30m |
| Dimensions: | Camera: Φ 127.3 × 95.9 mm (5″ × 3. 8″) With package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight: | Camera: Approx. 635 g (1.4 lb.) With package: Approx. 890 g (1.96 lb.) |
