Description

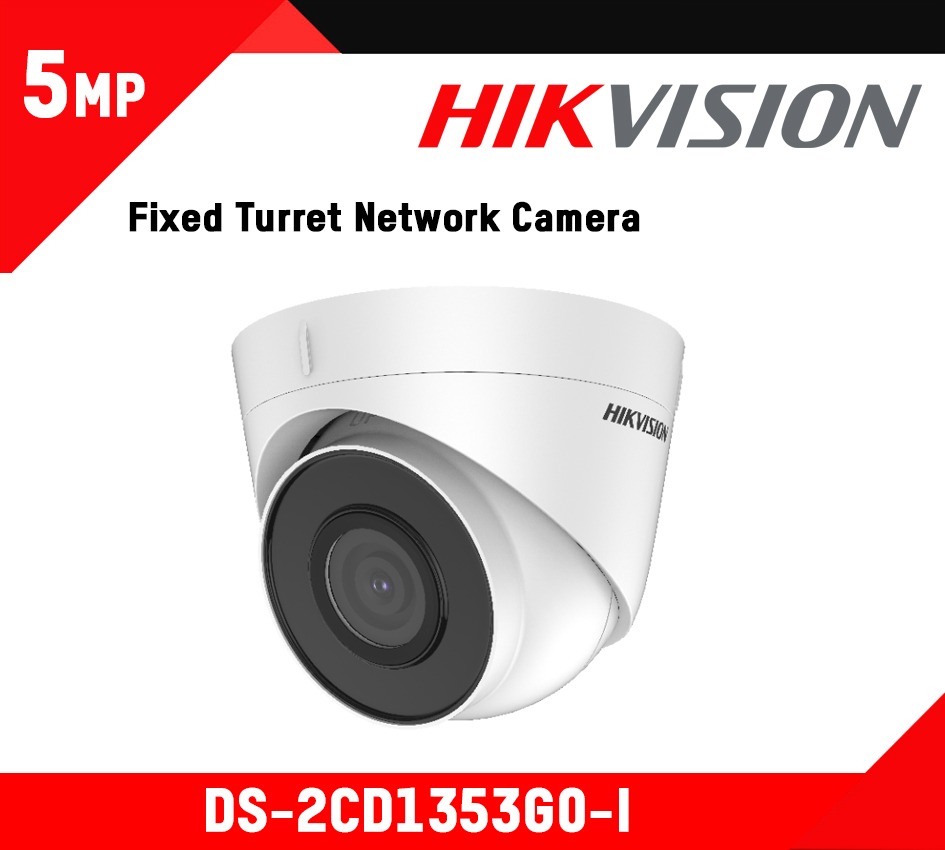

Datasheet: DS-2CD1353G0-I
User Manual: DS-2CD1353G0-I
Quick Start Guide: DS-2CD1353G0-I
Camera
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON)
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Day &Night: IR Cut Filter
- Wide Dynamic Range: 120 dB
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- DNR: 3D DNR
Lens
- Lens: 2.8/4 mm
- Aperture: F2.0
- Focus: Fixed
- FOV
- 2.8 mm, horizontal FOV: 98°, vertical FOV: 72°, diagonal FOV: 127°
- 4 mm, horizontal field of view: 77°, vertical FOV: 56°, diagonal FOV: 102°
- Lens Mount: M12
Illuminator
- IR Range: Up to 30 m
- Wavelength: 850 nm
Video
- Max. Resolution: 2560 × 1920
- Main Stream
- 50 Hz: 12.5 fps (2560 × 1920)
- 20 fps (2560 × 1440)
- 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- 60 Hz: 15 fps (2560 × 1920)
- 20 fps (2560 × 1440)
- 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
- 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 8 Mbps
Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz
Smart Feature-Set
- Region Of Interest: Support 1 fixed region for main stream
- Image Enhancement: BLC/3D DNR
- Image Setting: Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
- Day/Night Switch: Auto/Schedule/Day/Night
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
- API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
- Client: iVMS-4200, Hik-Connect, iVMS-5200
- Web Browser
- Plug-in required live view: IE 10, IE 11
- Local service: Chrome 57.0+, Firefox 52.0+
- Alarm Trigger: Motion detection, video tampering, exception (network disconnected, IP address conflict, illegal login, HDD error)
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Built-In Microphone: -U: Yes
- Hardware Reset: -F: Yes
Compression Standard
- H.264+: Main stream supports
- H.265+: Main stream supports
General
- Firmware Version: V5.5.122
- Web Client Language: English, Ukrainian
- General Function: Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%
- PoE: 802.3af, Class 3
- Power Consumption And Current: 12 VDC, 0.4 A, max. 5 W
- PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
- Material: Metal & plastic
- Dimensions
- Camera: Ø 110 mm × 85.3 mm (Ø4.3″ × 3.4\”)
- With package: 150 mm × 150 mm × 141 mm (5.9 × 5.9\” × 5.6\”)”
- Weight
- Camera: approx. 320 g (0.7 lb.)
- With package: approx. 566 g (1.2 lb.)
- Interface Protection: IP67 (IEC 60529-2013)
