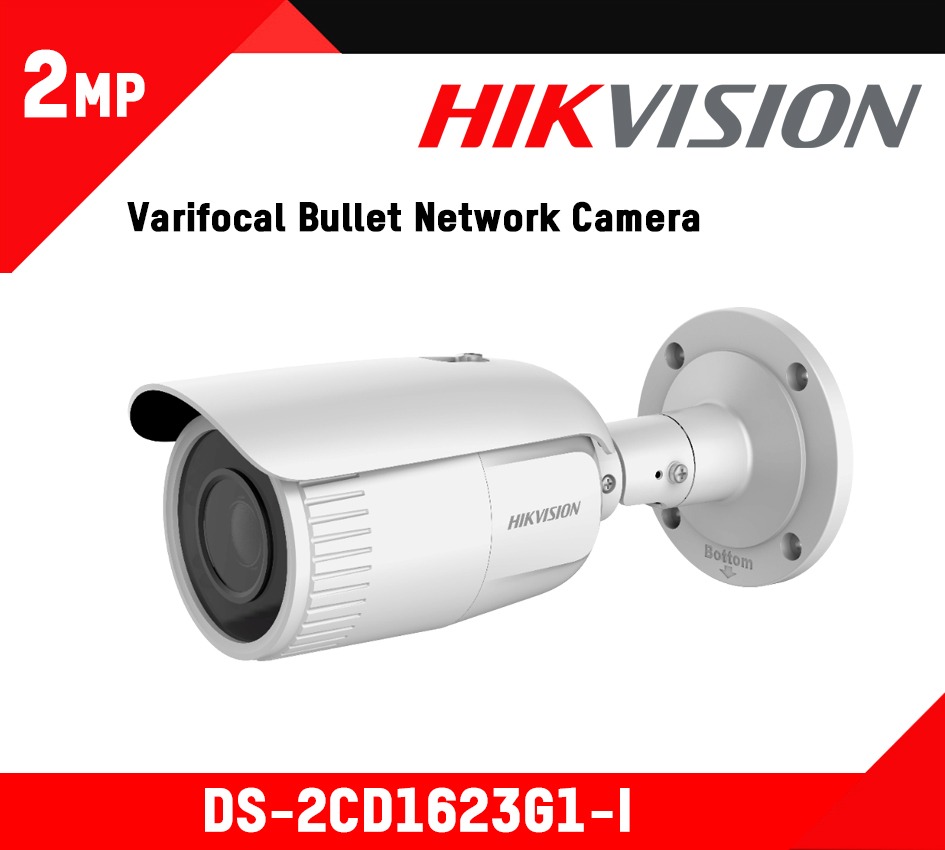

DS-2CD1623G1-I

Description

Datasheet: DS-2CD1623G1-I

User Manual: DS-2CD1623G1-I

Quick Start Guide: DS-2CD1623G1-I

Camera

• Image Sensor: 1/2.8″ Progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s
• Slow Shutter: Yes
• Day &Night: IR cut filter
• Wide Dynamic Range: Digital WDR
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• DNR: 3D DNR

Lens

• Lens: 2.8 to 8 mm
• Auto-Iris: No
• Aperture: F1.9
• Focus: Manual
• FOV
  • Horizontal field of view: 111° to 54.7°
  • Vertical field of view: 57.8° to 30.5°
  • Diagonal field of view: 134° to 63°
• Lens Mount: Φ14

Illuminator

• IR Range: Up to 20 m
• Wavelength: 850 nm

Video

• Max. Resolution: 1920 × 1080
• Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8 Mbps

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

• Region Of Interest: 1 fixed region for main stream


• Image Enhancement: BLC, 3D DNR
• Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Network

• Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger: Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Audio: Built-in mic
• Alarm: 1 alarm input, 1 alarm output
• Video Output: 1Vp-p composite output (75 Ω/BNC)
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

• H.264+: Main stream supports
• H.265+: Main stream supports

General

• Firmware Version: 5.5.82
• General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Reset: Yes
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Power Consumption And Current: 12 VDC, 0.6 A, max. 7 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W
• Material: Front & Back cover: metal
• Dimensions
  • Camera: Φ 105 mm × 244.4 mm (4.1″ × 9.6″)
  • With package: 315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
• Weight
  • Camera: Approx. 700 g (1.5 lb.)
  • With package: Approx. 1100 g (2.4 lb.)
• Interface Protection: IP66
