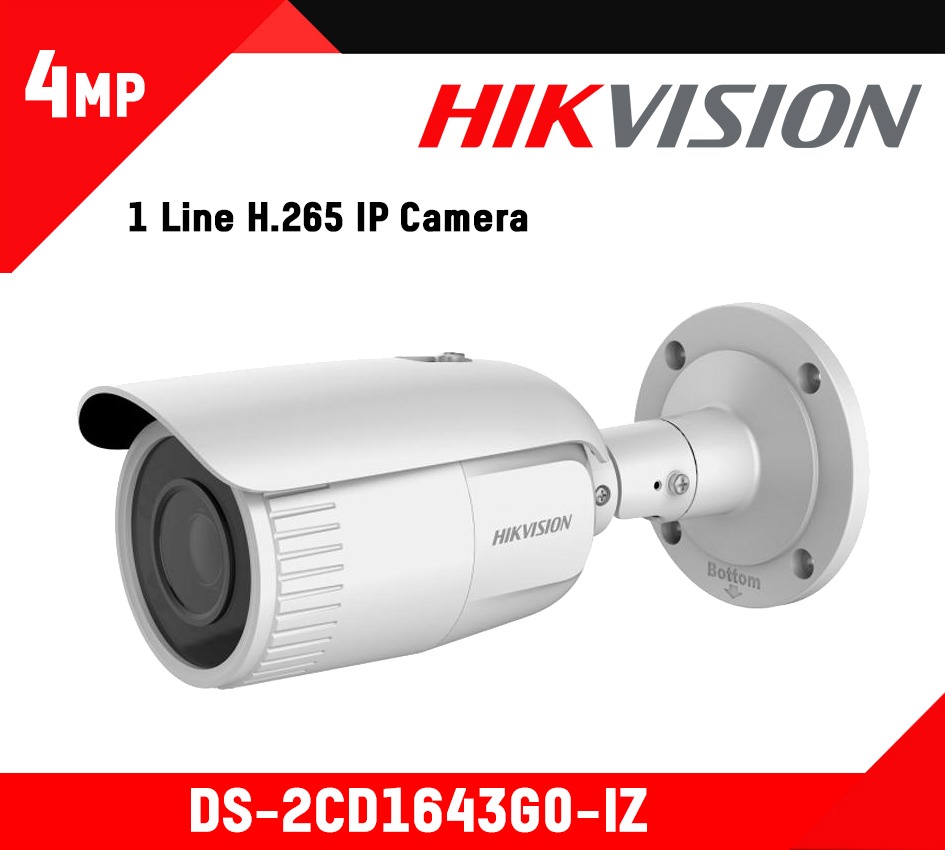

DS-2CD1643G0-IZ - Hikvision 1 Line H.265 4mp IP Camera - Colombo CCTV - Sri-lanka
DS-2CD1643G0-IZ
Availability: not in Stock

DS-2CD1643G0-IZ

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 4 MP Varifocal Bullet Network Camera
  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Up to 128 GB SD card slot for storage
  • 2.8 to 12 mm motorized vari-focal lens for easy installation and monitoring
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range
Categories:

Description


Datasheet: DS-2CD1643G0-IZ

User Manual: DS-2CD1643G0-IZ

Quick Start Guide: DS-2CD1643G0-IZ

Camera
  • Image Sensor: 1/3″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
  • Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
  • Slow Shutter: Yes
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
  • DNR: 3D DNR
  • WDR: 120 dB
  • Day & Night: IR cut filter
  • Auto-Iris: No
Lens
  • Aperture: F1.6
  • Focus: -I: Manual,-IZ: Auto ,
  • FOV
    • Horizontal field of view: 98° to 28°
    • Vertical field of view: 51° to 16°
    • Diagonal field of view: 115° to 32°
  • Lens Mount: Φ14
  • Focal Length: 2.8 to 12 mm
  • Image Enhancement: BLC, 3D DNR
  • Day/Night Switch: Auto, scheduled
  • Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Sub-Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),
  • Max. Resolution: 2560 × 1440
  • Main Stream: 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720),
Network
  • Protocols: Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
  • API5.5.3
  • Security: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live View: ONVIF (PROFILE S, PROFILE G), ISAPI
  • User/Host: Up to 6 channels
  • Client: Up to 32 users,3 levels: Administrator, Operator and User,
  • Web Browser: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Detection: Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
  • Standard: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Firmware Version: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Interface
  • Video Output: 1 RJ45 10M/100M self-adaptive Ethernet port
  • SVC: 1Vp-p composite output (75 Ω/BNC)
Compression Standard
  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • Video Compression
    • Main stream: H.265/H.264
    • Sub-stream: H.265/H.264/MJPEG,
  • H.265 Type: Main Profile
  • Video Bit Rate: 32 Kbps to 8 Mbps
IR
  • IR Range: Up to 30 m
  • Wavelength: 850 nm
Road Traffic And Vehicle Detection
  • Accuracy
    • Camera: approx. 1035 g (2.3 lb.)
    • With package: approx. 1550 g (3.4 lb.)
Smart Feature-Set
  • Region Of Interest: 1 fixed region for main stream and sub-stream
Wi-Fi (-W)
  • Wireless Standards: Yes
General
  • Power Supply: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
  • Dimensions
    • Metal
    • Φ 105 mm × 244.4 mm (Φ 4.1″ × 9.6″)
  • Power Consumption: 12 VDC ± 20%, 5.5 mm coaxial power plug, PoE (802.3af, class 3),
  • Heater: IP67 ,TVS 2000V lightning protection, surge protection and voltage transient protection,
  • Shipping Weight: -IZ: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W,-I: 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W,
