Description

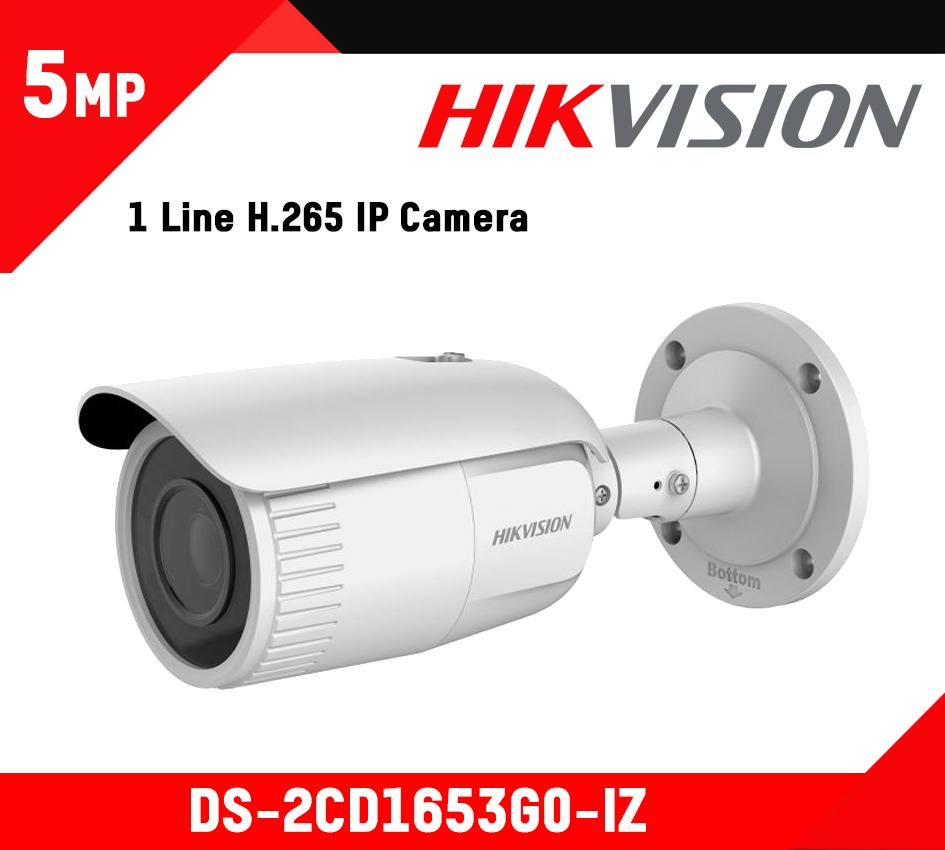

Datasheet: DS-2CD1653G0-IZ
User Manual: DS-2CD1653G0-IZ
Quick User Guide: DS-2CD1653G0-IZ
Camera
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Min. Illumination: Color: 0.01 Lux @(F1.2; AGC ON), 0.02 Lux @ (F1.6, AGC ON)
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Day &Night: IR Cut Filter
- Wide Dynamic Range: 120 dB
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
- DNR: 3D DNR
Lens
- Lens: 2.8 to 12 mm
- Auto-Iris: No
- Aperture: F1.6
- Focus: With –Z model: Auto,Without –Z model: Manual
- FOV:
- Horizontal FOV: 98° to 28°,
- vertical FOV: 71° to 21°,
- diagonal FOV: 130° to 35°
- Lens Mount: Φ14
Illuminator
- IR Range: Up to 30 m
- Wavelength: 850nm
Video
- Max. Resolution: 2560 × 1920
- Main Stream: 50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression: Main stream: H.265/H.264 ,Sub-stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 8Mbps
Smart Feature-Set
- Region Of Interest: Support 1 fixed region for main stream and sub-stream
- Image Enhancement: BLC/3D DNR
- Image Setting: Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
- Day/Night Switch: Auto/Scheduled/Day/Night
Network
- Network Storage: NAS (NFS,SMB/CIFS)
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
- API: ONVIF(PROFILE S,PROFILE G), ISAPI
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G
Compression Standard
- H.264+: Main stream supports
- H.265+: Main stream supports
General
- Firmware Version: V5.5.52
- General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Reset: Yes
- Power Supply: 12 VDC ± 25%,PoE: 802.3af, class 3
- Power Consumption And Current: With –Z model:,12 VDC, 0.9 A, max. 11 W,PoE (802.3af, 36 to 57 V), 0.4 A to 0.2 A, max. 12.9 W,Without –Z model:,12 VDC, 0.6 A, max. 7 W,PoE (802.3af, 36 to 57 V), 0.3 A to 0.1 A, max. 9 W
- Material
- Camera body, bracket: metal
- Sunshield: plastic
- Dimensions
- Camera: 105 mm × 244.4 mm (4.1″ × 9.6″)
- With package: 315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
- Weight
- Camera: approx. 700 g (1.5 lb.)
- With package: approx. 1150 g (2.5 lb.)
- Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Interface Protection: IP67
