Description

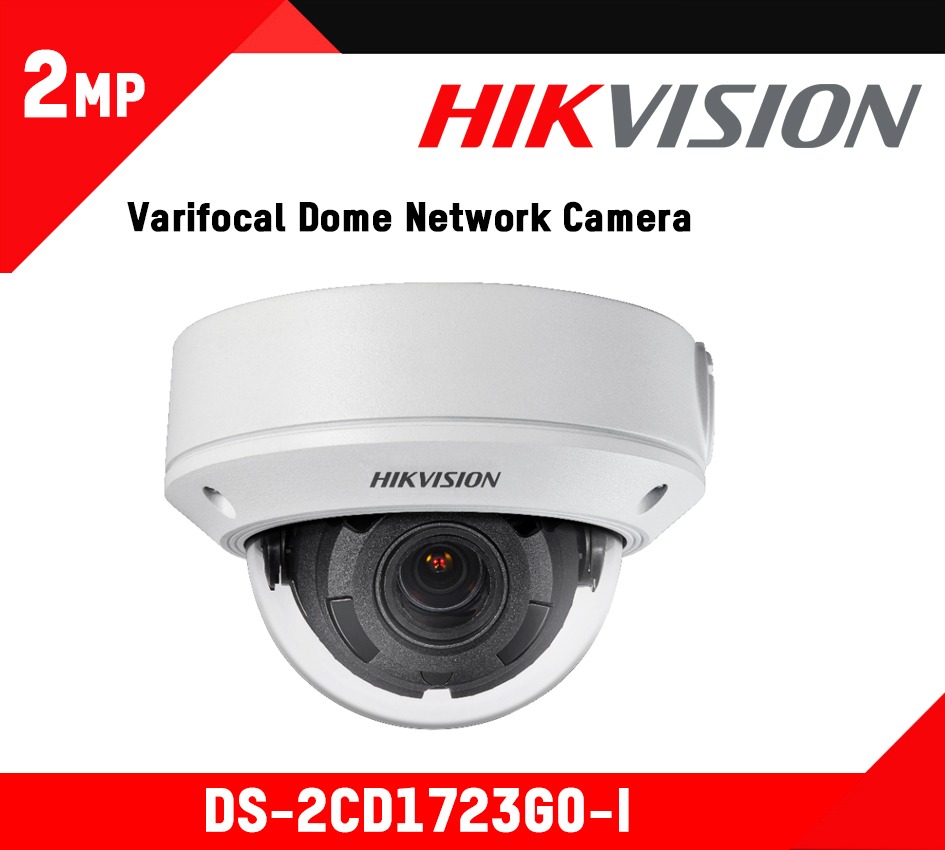

Datasheet: DS-2CD1723G0-I
User Manual: DS-2CD1723G0-I
Quick Start Guide: DS-2CD1723G0-I
Camera
- Image Sensor: 1/2.8″ progressive scan CMOS
- Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
- Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
- Slow Shutter: Yes
- Wide Dynamic Range: Digital WDR
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°
- DNR: 3D DNR
Lens
- Lens: 2.8 to 12 mm
- Auto-Iris: No
- Aperture: F1.6
- Focus: Manual
- FOV
- Horizontal field of view: 98° to 34°
- Vertical field of view: 52° to 19°
- Diagonal field of view: 116° to 40°
- Lens Mount: Φ14
Illuminator
- IR Range: Up to 30 m
- Wavelength: 850 nm
Video
- Max. Resolution: 1920 × 1080
- Video Compression
- Main stream: H.265/H.264
- Sub stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 8 Mbps
Smart Feature-Set
- Region Of Interest: 1 fixed region for main stream and sub-stream
- Image Enhancement: BLC, 3D DNR
- Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch: Auto, scheduled
- Sub-Stream Max. Frame Rate
- 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
- 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Network
- Network Storage: Support Micro SD/SDHC/SDXC card (128G ), local storage and ANR
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API: ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
- Client: iVMS-4200, iVMS-4500, iVMS-5200
- Web Browser: IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
- Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- Video Output: 1Vp-p composite output (75 Ω/BNC)
Compression Standard
- H.264+: Main stream supports
- H.265+: Main stream supports
General
- Firmware Version: 5.5.2
- General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Startup And Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
- Material: Metal & Plastic
- Dimensions
- Camera: Φ 141 mm × 99.9 mm (5.6″ × 3.9\”)
- With package: 140 mm × 140 mm × 154 mm (5.5 × 5.5\” × 6.1\”)”
- Weight
- Camera: Approx. 830 g (1.8 lb.)
- With package: Approx. 1070 g (2.4 lb.)
- Interface Protection: IP67, IK10
TVS 2000V lightning protection, surge protection and voltage transient protection
