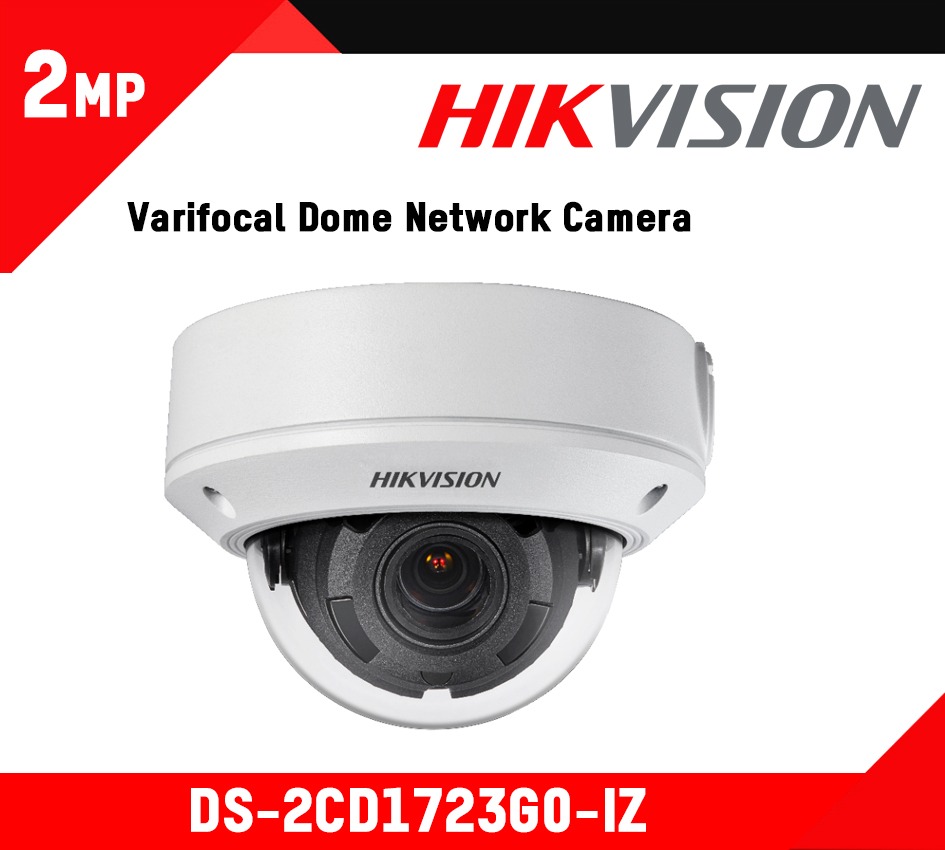

DS-2CD1723G0-IZ
Vous êts ici:
ColomboCCTV Home Page
/
/
/
/
/
/
DS-2CD1723G0-IZ
DS-2CD1723G0-IZ - Hikvision Varifocal Bullet Network 2mp IP Camera - Colombo CCTV - Sri-lanka
DS-2CD1723G0-IZ
Availability: not in Stock

DS-2CD1723G0-IZ

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 2 MP Varifocal Dome Network Camera
  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to DWDR technology
  • Up to 128 GB SD card slot for storage
  • 2.8 to 12 mm motorized vari-focal lens for easy installation and monitoring
  • Water and dust resistant (IP67), vandal proof (IK10)
  • EXIR 2.0: advanced infrared technology with long IR range
Categories:

Description


User Manual: DS-2CD1723G0-IZ

Quick User Guide: DS-2CD1723G0-IZ

Camera

  • Image Sensor: 1/2.8″ progressive scan CMOS
  • Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
  • Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
  • Slow Shutter: Yes
  • Wide Dynamic Range: Digital WDR
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°
  • DNR: 3D DNR

Lens

  • Lens: 2.8 to 12 mm
  • Auto-Iris: No
  • Aperture: F1.6
  • Focus: Auto
  • FOV
    • Horizontal field of view: 98° to 34°
    • Vertical field of view: 52° to 19°
    • Diagonal field of view: 116° to 40°
  • Lens Mount: Φ14

Illuminator

  • IR Range: Up to 30 m
  • Wavelength: 850 nm

Video

  • Max. Resolution: 1920 × 1080
  • Video Compression
    • Main stream: H.265/H.264
    • Sub stream: H.265/H.264/MJPEG
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-Set

  • Region Of Interest: 1 fixed region for main stream and sub-stream


  • Image Enhancement: BLC, 3D DNR
  • Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night Switch: Auto, scheduled
  • Sub-Stream Max. Frame Rate
    • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
    • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Network

  • Network Storage: Support Micro SD/SDHC/SDXC card (128G ), local storage and ANR
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • API: ONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live View: Up to 6 channels
  • User/Host
    • Up to 32 users
    • 3 levels: Administrator, Operator and User
  • Client: iVMS-4200, iVMS-4500, iVMS-5200
  • Web Browser: IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
  • Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login

Interface

  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • Video Output: 1Vp-p composite output (75 Ω/BNC)

Compression Standard

  • H.264+: Main stream supports
  • H.265+: Main stream supports

General

  • Firmware Version: 5.5.2
  • General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Startup And Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
  • Material: Metal & Plastic
  • Dimensions
    • Camera: Φ 141 mm × 99.9 mm (5.6″ × 3.9\”)
    • With package: 140 mm × 140 mm × 154 mm (5.5 × 5.5\” × 6.1\”)”
  • Weight
    • Camera: Approx. 830 g (1.8 lb.)
    • With package: Approx. 1070 g (2.4 lb.)
  • Interface Protection: IP67, IK10
    TVS 2000V lightning protection, surge protection and voltage transient protection
