Description

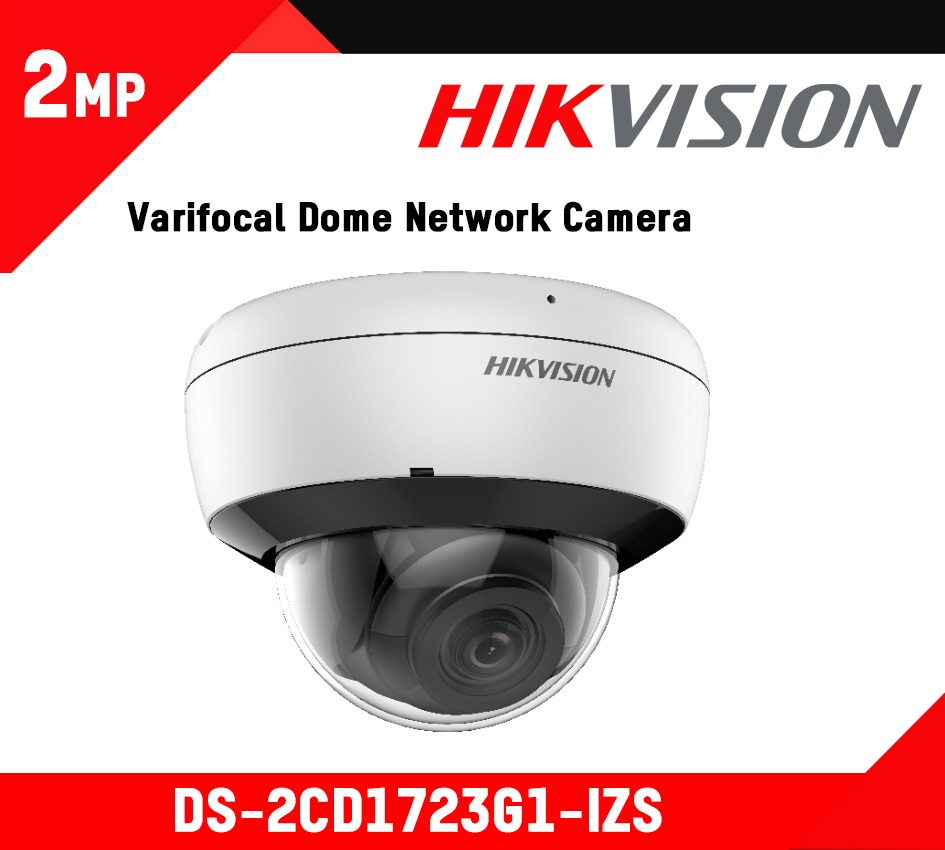

Datasheet: DS-2CD1723G1-IZS
User Manual: DS-2CD1723G1-IZS
Quick Start Guide: DS-2CD1723G1-IZS
Camera
- Image Sensor: 1/2.8″ Progressive scan CMOS
- Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)
- Shutter Speed: 1/3 s to 1/100, 000 s
- Slow Shutter: Yes
- Day &Night: IR cut filter
- Wide Dynamic Range: Digital WDR
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
- DNR: 3D DNR
Lens
- Lens: 2.8 to 8 mm
- Auto-Iris: No
- Aperture: F1.9
- Focus: Auto
- FOV
- Horizontal field of view: 111° to 54.7°
- Vertical field of view: 57.8° to 30.5°
- Diagonal field of view: 134° to 63°
- Lens Mount: Φ14
Illuminator
- IR Range: Up to 20 m
- Wavelength: 850 nm
Video
- Max. Resolution: 1920 × 1080
- Main Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream
- 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
- 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 8 Mbps
Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
- Region Of Interest: 1 fixed region for main stream
- Image Enhancement: BLC, 3D DNR
- Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
- Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and ANR
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API: ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm Trigger: Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- Audio: Built-in mic, 1 input (line in), 1 output (line out)
- Alarm: 1 alarm input, 1 alarm output
- Video Output: 1Vp-p composite output (75 Ω/BNC)
- On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Compression Standard
- H.264+: Main stream supports
- H.265+: Main stream supports
General
- Firmware Version: 5.5.82
- General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Reset: Yes
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
- Power Consumption And Current: 12 VDC, 0.8 A, max. 10 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12 W
- Material
- Bubble: plastic
- Front cover: plastic
- Bottom base: metal
- Dimensions
- Camera: Φ 121 mm × 92 mm (4.8″ × 3.6\”)
- With package: 150 mm × 150 mm × 141 mm (5.9 × 5.9\” × 5.6\”)”
- Weight
- Camera: Approx. 400 g (0.9 lb.)
- With package: Approx. 700 g (1.5 lb.)
- Interface Protection: IP66, IK10
