Description

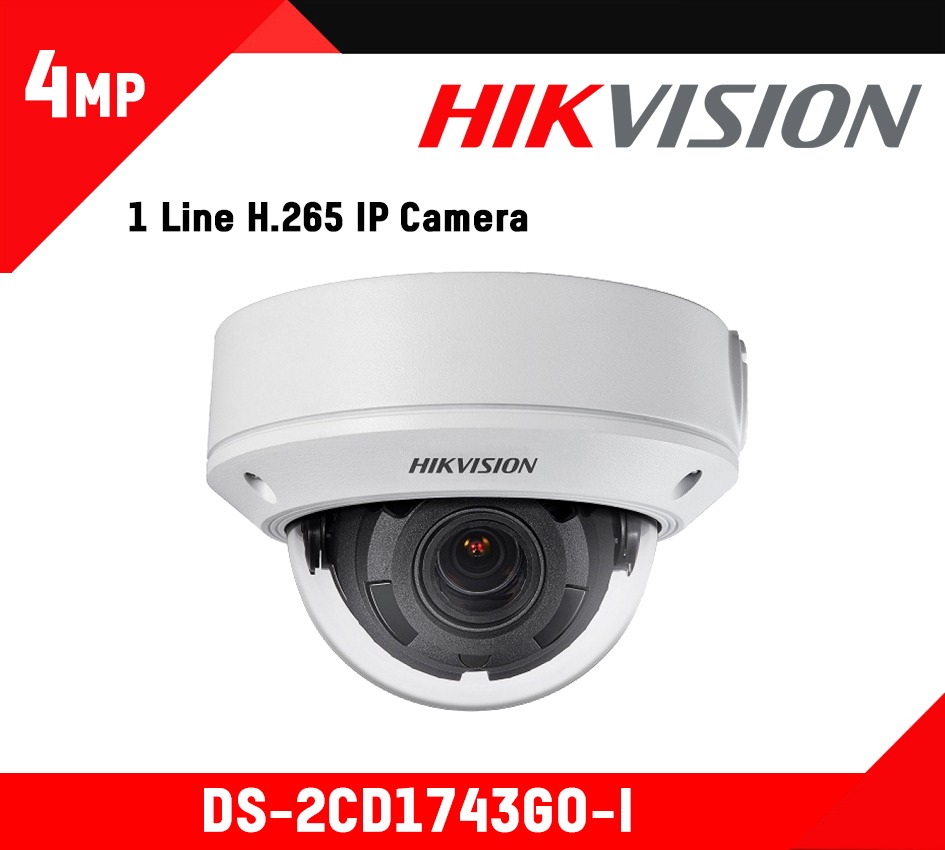

| Model | DS-2CD1743GO-I |
|---|---|
| Camera | |
| Image Sensor | 1/3″ progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s, support slow shutter |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360° |
| Lens | |
| Focal Length | 2.7 to 13.5 mm |
| Aperture | F1.6 |
| Focus | Auto |
|
FOV |
Horizontal field of view: 98° to 28°
Vertical field of view: 51° to 16° Diagonal field of view: 115° to 32° |
| Lens Mount | Φ14 |
| IR | |
| IR Range | Up to 50 m |
| Wavelength | 850 nm |
| Compression Standard | |
|
Video Compression |
Main stream: H.265/H.264
Sub stream/Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Behavior Analysis | Line crossing detection, intrusion detection, |
| Exception Detection | audio exception detection |
| Face Detection | Yes |
| Image | |
| Max. Resolution | 2560 × 1440 |
| Main Stream Max. Frame Rate | 50Hz: 30fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-stream
Max. Frame Rate |
50Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third steam Max. Frame Rate | 50Hz: 1080P@1fps
60Hz: 1080P@1fps |
| Image Enhancement | BLC, 3D DNR,HLC |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | 5.5.3 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
|
User/Host |
Up to 32 users
3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, iVMS-5200 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 input (line in/mic in), 1 output (line out), mono |
| Alarm | 1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA) |
| Video Output | 1Vp-p composite output (75 Ω/BNC) |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| General | |
| Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W |
|
Protection Level |
IP67, IK10
TVS 2000V lightning protection, surge protection and voltage transient protection |
| Material | Metal & Plastic |
|
Dimensions |
Camera: Φ 141 mm × 99.9 mm (5.6″ × 3.9″)
With package: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″) |
|
Weight |
Camera: approx. 820 g (1.8 lb.)
With package: approx. 1200 g (2.6 lb.) |
