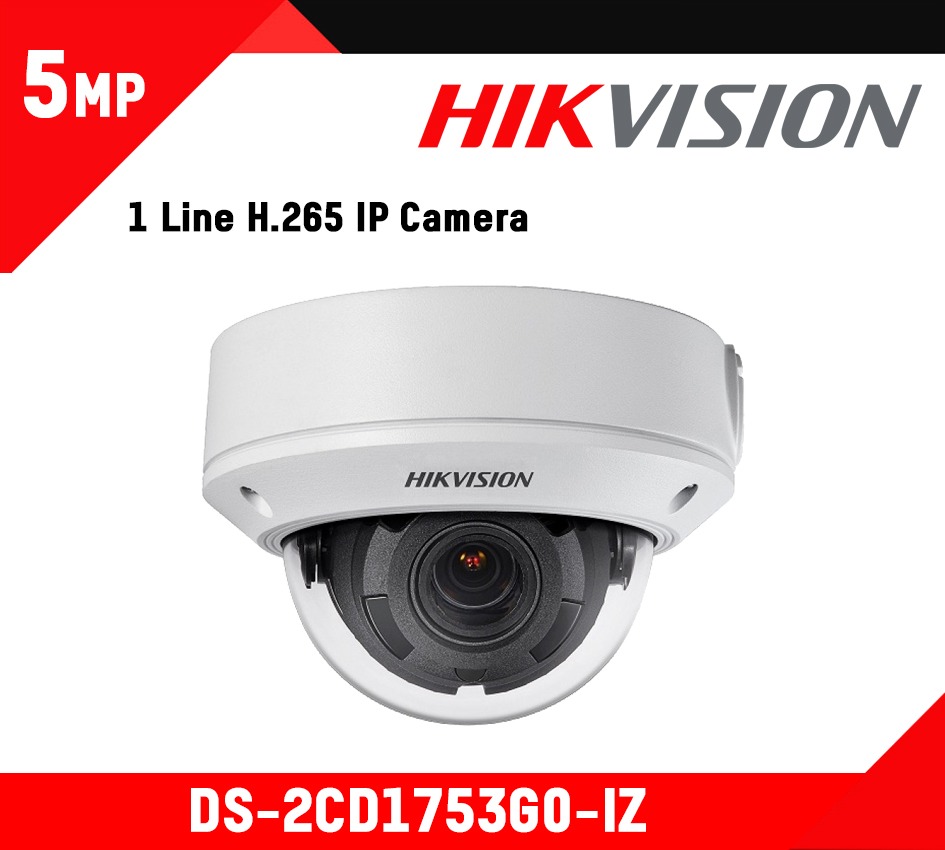

DS-2CD1753G0-IZ

Description

Datasheet: DS-2CD1753G0-IZ

User Manual: DS-2CD1753G0-IZ

Quick Start Guide: DS-2CD1753G0-IZ

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2; AGC ON), 0.02 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Day &Night: IR Cut Filter
• Wide Dynamic Range: 120 dB
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
• DNR: 3D DNR

Lens

• Lens: 2.8 to 12 mm
• Auto-Iris: No
• Aperture: F1.6
• Focus: With –Z model: Auto,Without –Z model: Manual
• FOV: Horizontal FOV: 98° to 28°, vertical FOV: 71° to 21°, diagonal FOV: 130° to 35°
• Lens Mount: Φ14

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850nm

Video

• Max. Resolution: 2560 × 1920
• Main Stream: 50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression: Main stream: H.265/H.264 ,Sub-stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8Mbps

Smart Feature-Set

• Region Of Interest: Support 1 fixed region for main stream and sub-stream


• Image Enhancement: BLC/3D DNR
• Image Setting: Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
• Day/Night Switch: Auto/Scheduled/Day/Night

Network

• Network Storage: Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
• API: ONVIF(PROFILE S,PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G

Approval

• Impact Protection: IK10

Compression Standard

• H.264+: Main stream supports
• H.265+: Main stream supports

General

• Firmware Version: V5.5.52
• General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Reset: Yes
• Power Supply: 12 VDC ± 25%,PoE: 802.3af, class 3
• Power Consumption And Current: With –Z model:,12 VDC, 0.8 A, max. 10 W,PoE (802.3af, 36 to 57 V), 0.4 A to 0.2 A, max. 12 W,Without –Z model:,12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 to 57 V), 0.3 A to 0.1 A, max. 8 W
• Material: Bubble: plastic, front cover & bottom base: metal
• Dimensions: Camera: Φ141 mm × 99 mm (5.6″ × 3.9″),With package: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
• Weight: Camera: approx. 800 g (1.8 lb.),With package: approx. 1050 g (2.3 lb.)
• Interface Protection: IP67
• Operating Condition: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
