Description

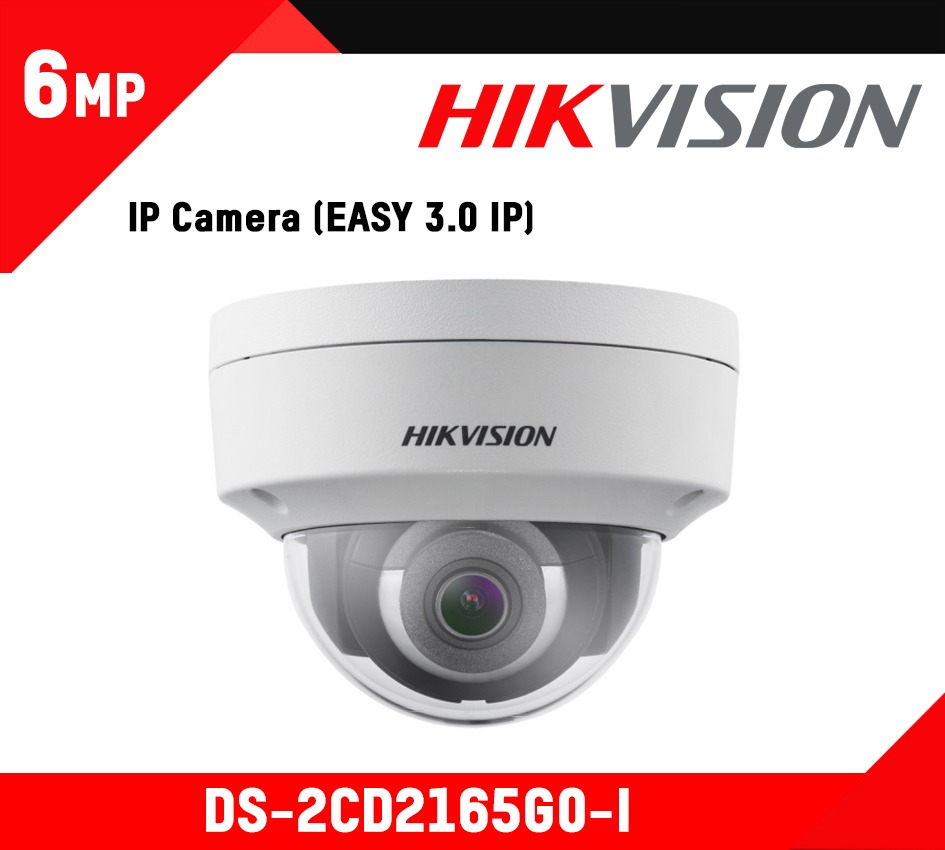

Quick Start Guide: DS-2CD2165G0-I
Camera | ||
---|---|---|
Image Sensor: | 1/2.4″ Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON) | |
Shutter time: | 1/3 s to 1/100,000 s | |
Slow shutter: | Support | |
Lens: | 2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128° 4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101° 6 mm, horizontal FOV: 60°, vertical FOV: 38° |
|
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR | |
Focus: | Fixed | |
Compression Standard | ||
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate: | 32Kbps~16Mbps | |
Image | ||
Max. Image Resolution: | 3072 x 2048 | |
Frame Rate: | 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
Image Enhancement: | BLC/3D DNR | |
Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser | |
ROI: | Support 1 fixed region for main stream and sub stream separately | |
Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by Alarm In(-S) | |
Network | ||
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
Interface | ||
Audio: | with -S model:1 input (line in/mic.in), 1 output (line out), terminal block, mono sound | |
Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes | |
Smart Feature-set | ||
Behavior Analysis: | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
Region Entrance: | Enter a pre-defined virtual region from the outside place | |
Region Exiting: | Exit from a pre-defined virtual region | |
Exception Detections: | Scene change detection | |
General | ||
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
Power Supply: | 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) | |
Power Consumption: | 12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max: 7.5 W |
|
Weather Proof: | IP67 | |
IR Range: | Up to 30m | |
Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) With package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
|
Weight: | Camera: 500 g (1.1 lb.) With package: 800 g (1.8 lb.) |
