DS-2CD2183G2-I Hikvision 8.0MP EASY 3.0 IP Camera Colombocctv.com Sri Lanka
DS-2CD2183G2-I
Availability: not in Stock

DS-2CD2183G2-I

logo-2

Key Features

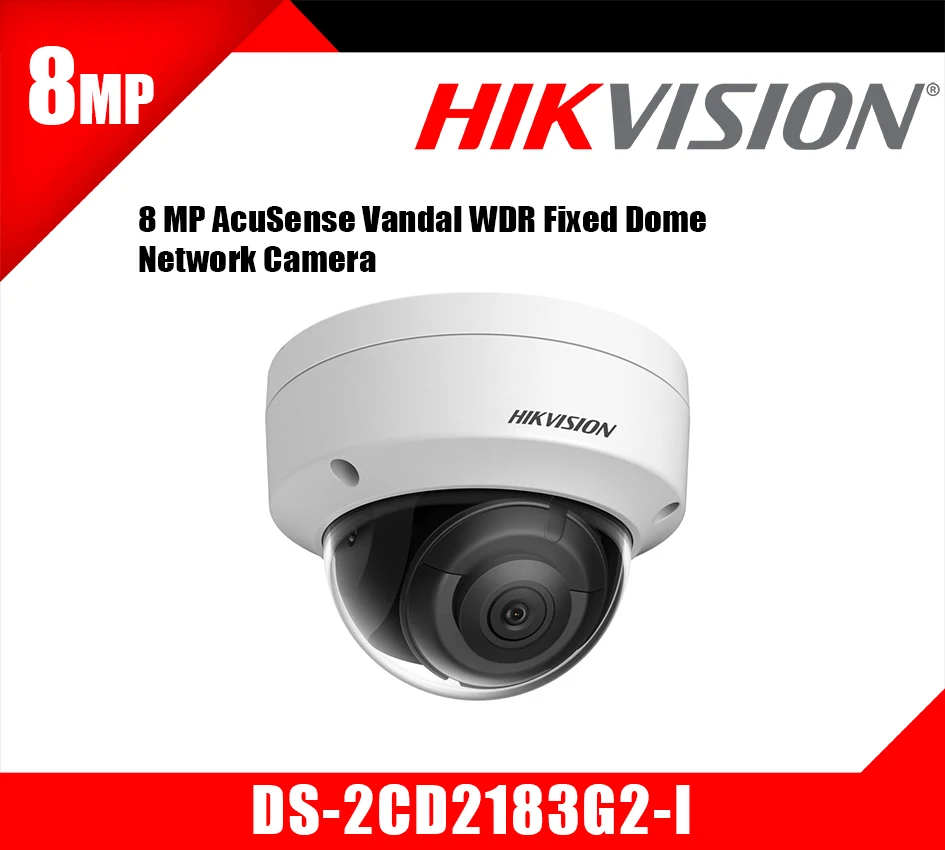

  • 8 MP AcuSense Vandal WDR Fixed Dome Network Camera
  • High quality imaging with 8 MP resolution
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
Categories:

Description

DS-2CD2183G2-I Hikvision 8.0MP EASY 3.0 IP Camera Colombocctv.com Sri Lanka
Datasheet: DS-2CD2183G2-I

User Manual: DS-2CD2183G2-I

Camera

  • Image Sensor: 1/2.8″ Progressive Scan CMOS
  • Max. Resolution: 3840 × 2160
  • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV
    • 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
    • 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6
DORI
  • DORI
    • 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
    • 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m
Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
Video
  • Main Stream
    • 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);
    • 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

      *Third stream is supported under certain settings.

  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Video Compression
    • Main stream: H.265+/H.265/H.264+/H.264,
    • Sub-stream: H.265/H.264/MJPEG,
    • Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
  • Region Of Interest (ROI): 1 fixed region(s) for main stream and sub-stream
Network
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G),ISAPI,SDK
  • User/Host
    • Up to 32 users
    • 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser
    • Plug-in required live view: IE 10, IE 11,
    • Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
    • Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks
Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes
Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
General
  • Power
    • 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
    • PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
  • Material: Aluminum alloy body, bubble: plastic
  • Dimension: Ø110.8 mm × 84.7 mm (Ø4.4 × 3.3\”)”
  • Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
  • Weight: Approx. 520 g (1.1 lb.)
  • With Package Weight: Approx. 720 g (1.6 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter
Approval
  • EMC
    • FCC: 47 CFR Part 15, Subpart B,
    • CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
    • RCM: AS/NZS CISPR 32: 2015,
    • IC: ICES-003: Issue 7,
    • KC: KN32: 2015, KN35: 2015
  • Environment
    • CE-RoHS: 2011/65/EU,
    • WEEE: 2012/19/EU,
    • Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013;IK10: IEC 62262:2002
  • Safety
    • UL: UL 62368-1,
    • CB: IEC 62368-1: 2014+A11,
    • CE-LVD: EN 62368-1: 2014/A11: 2017
