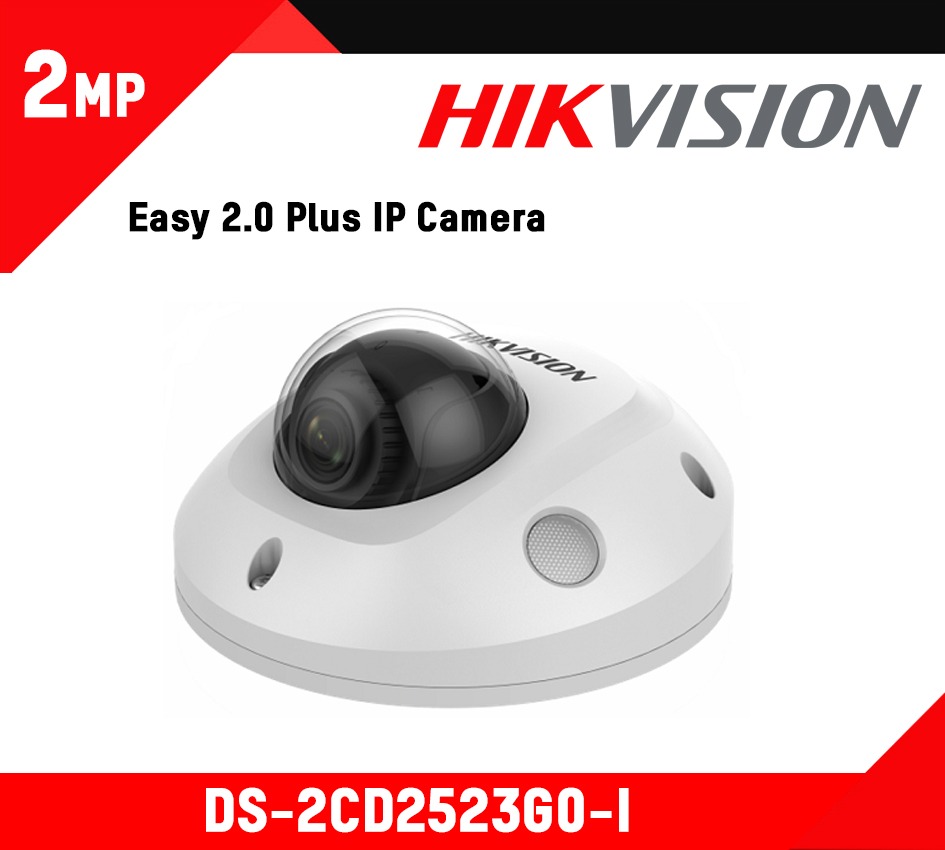

Quick Start Guide: DS-2CD2523G0-I
| Camera | |
|---|---|
| Image Sensor: | 1/2.7” Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2.8 mm: Horizontal field of view: 114°, Vertical field of view: 62°, Diagonal field of view: 135° 4 mm: Horizontal field of view: 86°, Vertical field of view: 46°, Diagonal field of view: 102° 6 mm: Horizontal field of view: 54°, Vertical field of view: 30°, Diagonal field of view: 62° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night: | IR Cut Filter |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Focus: | Fixed |
| Compression Standard | |
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile: | Main Profile/High Profile |
| Video bit rate: | 256Kbps~16Mbps |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Triple Streams: | Yes |
| Image | |
| Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: | BLC/3D DNR/ROI/HLC |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI: | Support 1 fixed region for main stream and sub-stream separately |
| Day/Night Switch: | Auto/Schedule/Day/Night/Triggered by Alarm In (-S) |
| Network | |
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Audio: | with -S model：2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Alarm: | 1 Input: Alarm in, 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
| Audio | |
| Environment Noise Filtering: | Support |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Smart Feature-set | |
| Behavior Analysis: | Line crossing detection, intrusion detection |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Detection/Recognition: | Face Detection |
| Wi-Fi Specification (-W) | |
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | 2.412 GHz to 2.4835 GHz |
| Channel Bandwidth: | 20/40MHz Support |
| Security: | WPA, WPA2 |
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Wireless Range: | 50m(depend on environment) |
| Protocols: | 802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK |
| General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | 12 VDC, 0.7 A, max. 8.5W, Φ 5.5mm coaxial plug power PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W |
| Impact Protection: | IK08 Protection Level |
| Weather Proof: | IP66 |
| IR Range: | Up to 10m |
| Dimensions: | Φ110 mm × 56.4 mm (Φ4.3″ × 2.2″) |
| Weight: | Camera: Approx. 400 g (0.9 lb.) |
