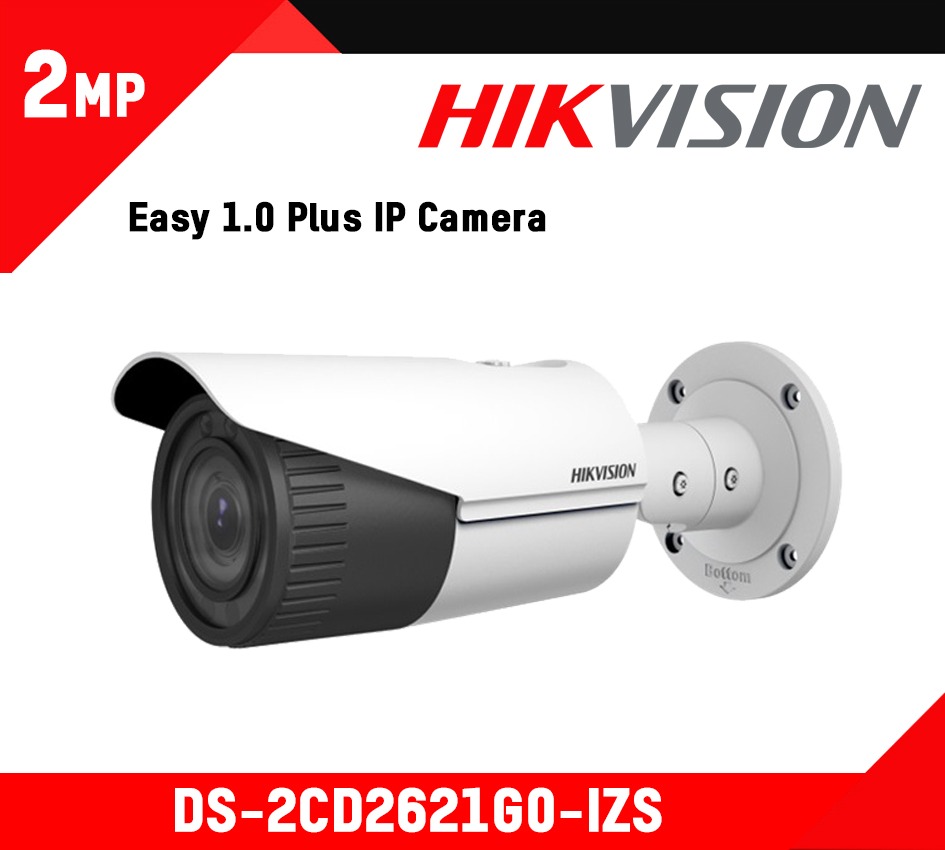

DS-2CD2621G0-IZS

Description

Datasheet : DS-2CD2621G0-IZS

User Manual : DS-2CD2621G0-IZS

Quick User Guide : DS-2CD2621G0-IZS

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120 dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360°

Lens

• Focus: Auto
• Lens Type: 2.8 to 12 mm
• FOV: Horizontal FOV: 99.6° to 35°, vertical FOV: 53.5° to 20°, diagonal FOV: 118.6° to 40.2°
• Aperture: F2.0
• Lens Mount: Φ14
• Aperture Type: Fixed

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850nm

Video

• Max. Resolution: 1920 × 1080
• Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Region Of Interest (ROI): 1 fixed region for main stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Network Storage: Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in (-S)
• Target Cropping: No
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Interface

• Audio: 1 input (line in), 1 output (line out), mono sound
• Alarm: 2 inputs,2 outputs
• Video Output: CVBS
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Smart Event: Line crossing detection, intrusion detection

General

• Firmware Version: V5.5.6
• General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions: -30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial plug power,PoE (802.3af, class 3)
• Power Consumption And Current: : 12 VDC, 0.9 A, max. 11 W,PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, max. 12.9 W
• Camera Dimension: Φ 105 × 294.5 mm (Φ 4.1″ × 11.6″)
• Camera Weight: Camera: approx. 1050 g (2.3 lb.),With package: approx. 1500 g (3.3 lb.)

Approval

• Protection: IP67
