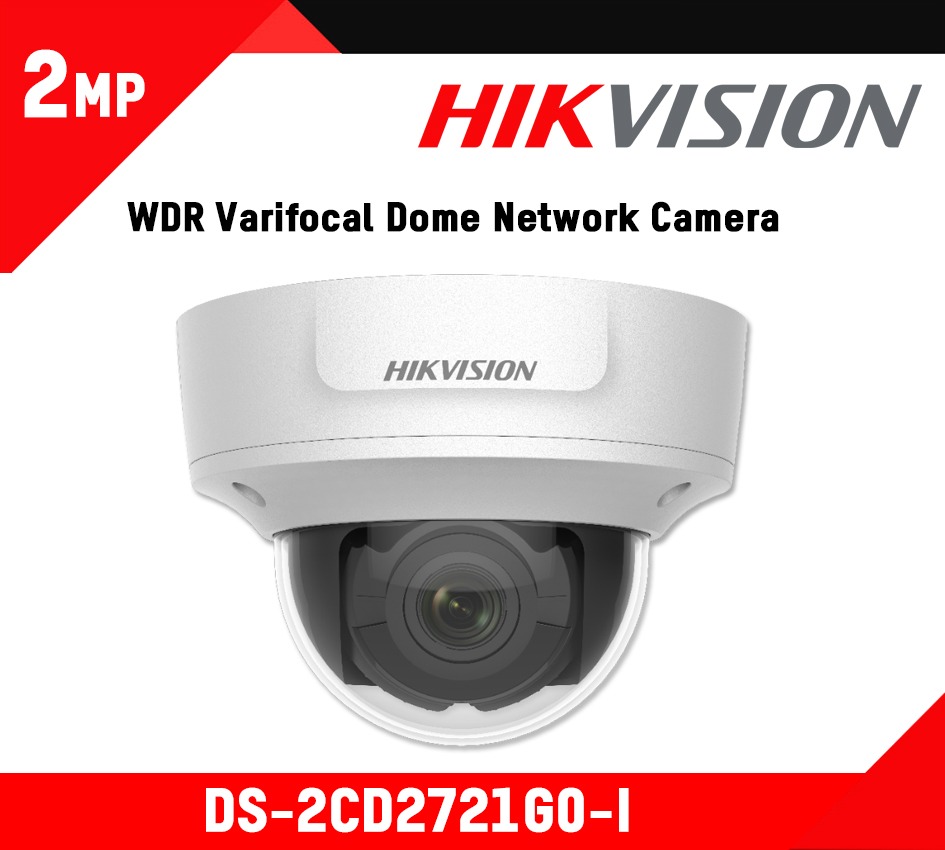

DS-2CD2721G0-I - Hikvision WDR Varifocal Dome Network 2MP IP Camera - Colombo CCTV - Sri-lanka
DS-2CD2721G0-I
Availability: not in Stock

DS-2CD2721G0-I

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 2 MP WDR Varifocal Dome Network Camera
  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Robust structure design with full metal materials
Categories:

Description


Datasheet: DS-2CD2721G0-I

Quick Start Guide: DS-2CD2721G0-I

Quick Start Guide: DS-2CD2721G0-I

Camera

  • Image Sensor: 1/2.8″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);,B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • Wide Dynamic Range: 120 dB
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°

Lens

  • Focus: Manual
  • Lens Type: 2.8 to 12 mm
  • FOV: Horizontal FOV: 99.6° to 35°, vertical FOV: 53.5° to 20°, diagonal FOV: 118.6° to 40.2°
  • Aperture: F2.0
  • Lens Mount: Φ14
  • Aperture Type: Fixed

Illuminator

  • IR Range: Up to 30 m
  • Wavelength: 850nm

Video

  • Max. Resolution: 1920 × 1080
  • Main Stream
    • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
    • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream
    • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
    • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video Compression
    • Main stream: H.265/H.264
    • Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • Scalable Video Coding (SVC): H.264 and H.265 encoding support
  • Region Of Interest (ROI): 1 fixed region for main stream

Audio

  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • User/Host: Up to 32 users,3 levels: Administrator, Operator and User
  • Network Storage: Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


  • Target Cropping: No
  • DNR: 3D DNR
  • Image Enhancement: BLC/3D DNR
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Interface

  • Audio: 1 input (line in), 1 output (line out), mono sound
  • Alarm: 2 inputs,2 outputs
  • Video Output: CVBS
  • On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset: Yes
  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

  • Smart Event: Line crossing detection, intrusion detection

General

  • Firmware Version: V5.5.6
  • General Function: One-key reset, anti-flicker, heartbeat, three streams, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup And Operating Conditions: -30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial plug power,PoE (802.3af, class 3)
  • Power Consumption And Current: 12 VDC, 0.5 A, max. 6 W ,PoE: (802.3af, 36V-57V), 0.3 A to 0.1 A, max. 8 W
  • Camera Dimension: Φ 153.3 × 111.6 mm (Φ 6″ × 4.4″)
  • Camera Weight
    • Camera: approx. 880 g (1.9 lb.)
    • With package: approx. 1300 g (2.9 lb.)

Approval

  • Protection: IK10, IP67
