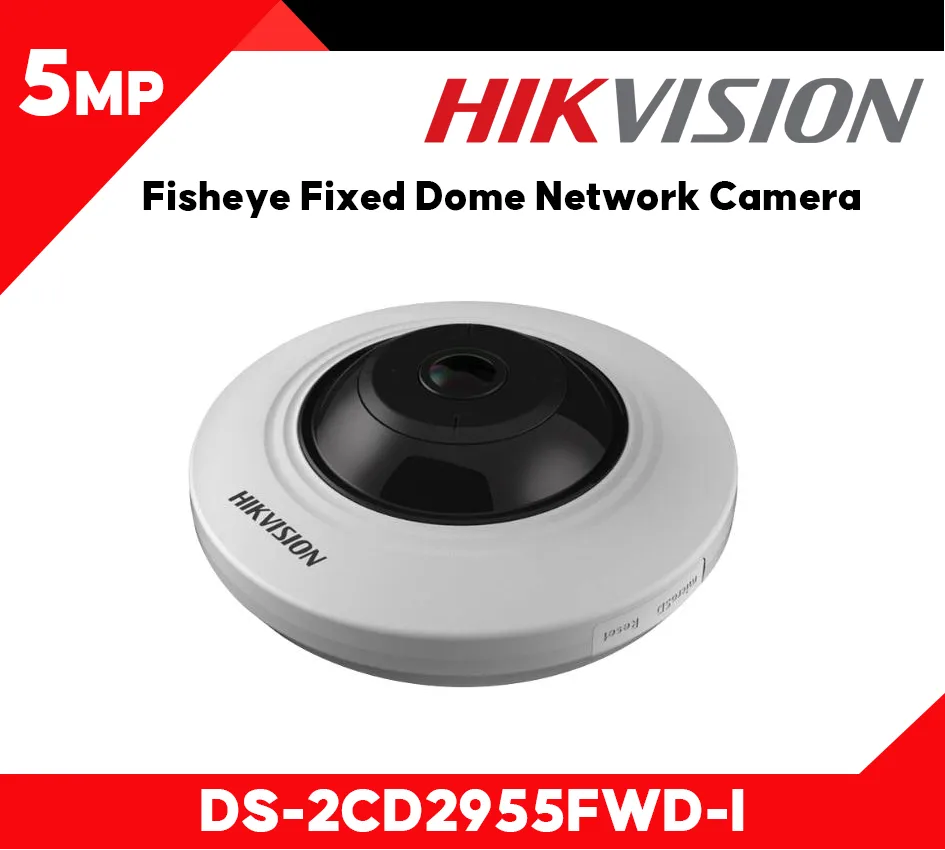

DS-2CD2955FWD-I

Description

Datasheet: DS-2CD2955FWD-I

User Manual: DS-2CD2955FWD-I

Quick Start Guide: DS-2CD2955FWD-I

Camera

• Image Sensor: 1/2.5″ Progressive Scan CMOS
• Min. Illumination: Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on
• Max. Resolution: 2560 × 1920
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter with auto switch

Lens

• Focal Length & FOV: 1.05 mm, horizontal field of view: 180°, vertical field of view: 180°
• Lens Mount: M12
• Aperture: F2.2

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 8 m

Video

• Main Stream
  • 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960)
  • 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960),
• Sub-Stream
  • 50Hz: 25fps (352× 288, 704 × 576)
  • 60Hz: 30fps (352 × 240, 704 × 576)
• Video Compression
  • Main stream: H.265+/H.265/H.264+/ H.264
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): Support 1 fixed region for main stream and sub-stream

Fisheye Display

• Mount Type: Support table, wall, and ceiling
• Display Mode

  Support 14 display modes in total (including display modes of different mount types):

  • Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Network

• Network Storage: NAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2


• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: WDR/3D DNR/Backlight Compensation/Defog/Distortion Correction
• Image Settings: Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser

Interface

• On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 G
• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Event: Motion detection, dynamic analysis, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
• Linkage: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

General

• Power: DC 12V ± 25%, 2A, 5W,PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W,
• Dimension: Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
• Startup And Operating Conditions: -10 °C to +50 °C (-14 °F to +122 °F). Humidity 95% or less (non-condensing)
• Web Client Language: 32 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Weight: 600 g (1.32 lbs.)
