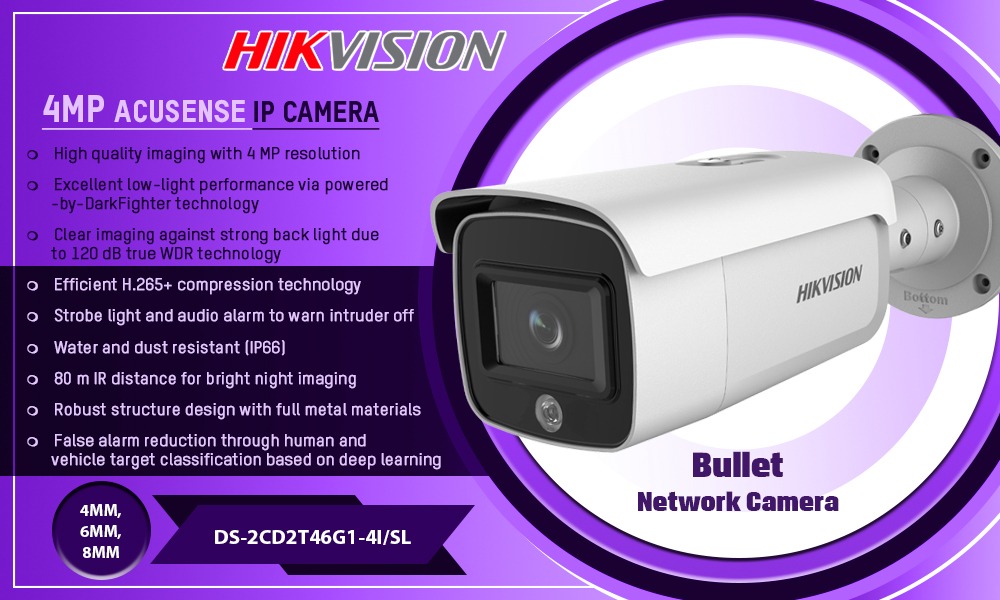

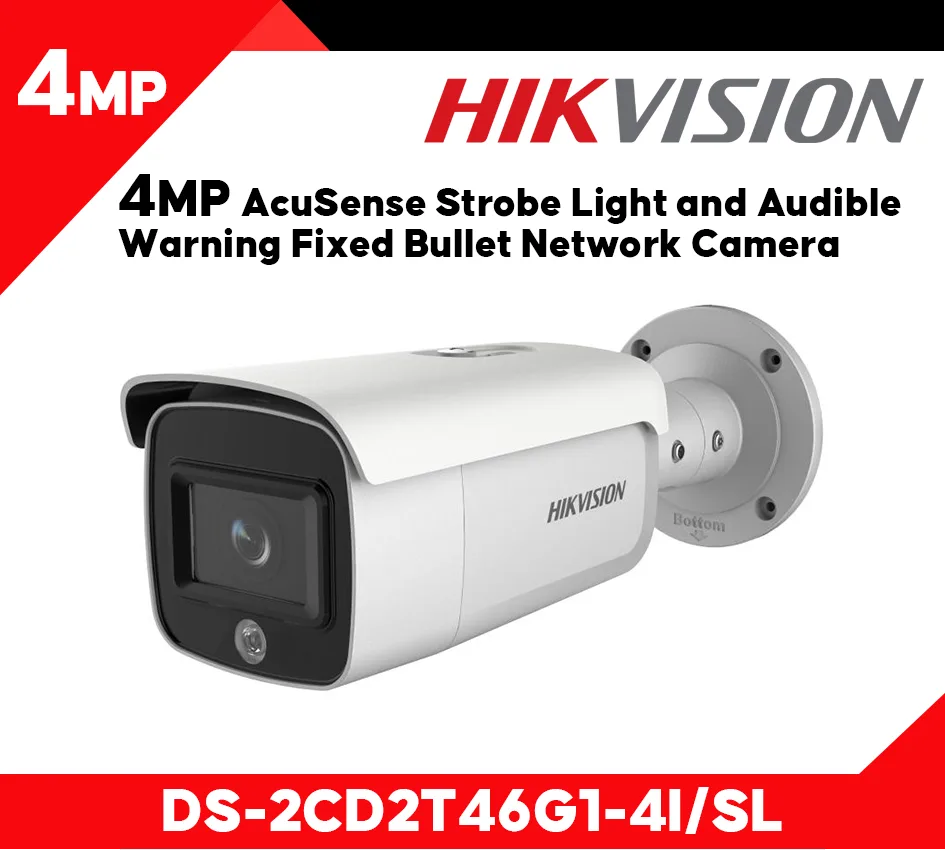

DS-2CD2T46G1-4I/SL

Description

Datasheet: DS-2CD2T46G1-4I/SL

User Manual: DS-2CD2T46G1-4I/SL

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focus: Fixed
• Lens Type: 2.8/4/6/8 mm
• FOV
  • 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°
  • 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
  • 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°
  • 8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°
• Aperture: F1.6
• Lens Mount: M12
• Aperture Type: Fixed

Illuminator

• IR Range: Up to 80 m
• Wavelength: 850 nm

Video

• Max. Resolution: 2688 × 1520
• Main Stream
  • 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream
  • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
  • 60Hz: 30fps (704 × 576, 640 × 480, 352 × 288)
• Video Compression
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream:H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Scalable Video Coding (SVC): H.265 encoding and H.264 encoding support
• Region Of Interest (ROI): Support 4 fixed region for main stream and sub-stream separately

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Network Storage: Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


• Day/Night Switch: Day/Night/Auto/Schedule
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interface

• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification

General

• Firmware Version: V5.5.72
• General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3at, class 4)
• Power Consumption And Current: 12 VDC, 1.25 A, max. 15 W,PoE: (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W
• Dimension
  • Camera: Φ 105 × 292.2 mm (Φ 4.1″ × 11.5″)
  • With package: 385 × 190 × 180 mm (15.2″ × 7.5″ × 7.1″)
• Weight
  • Camera: 1320 g (2.9 lb.)
  • With package: 1924 g (4.2 lb.)

Approval

• Protection: IP66
