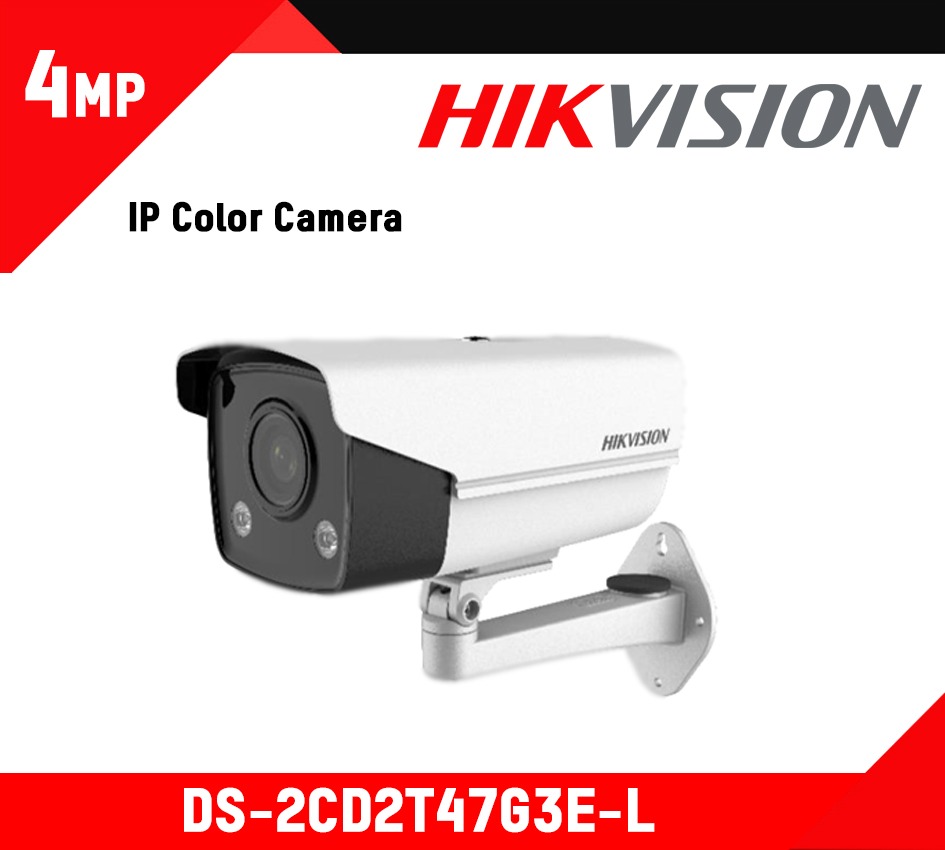

Specification of DS-2CD2T47G3E-L
| Model | DS-2CD2T47G3E-L |
|---|---|
| CAMERA | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | 0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Focal length | 4/6 mm |
| Focus | Fixed |
| Aperture | F1.0 |
| FOV | 4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 107.5° 6 mm, horizontal FOV: 54°, vertical FOV: 29°, diagonal FOV: 63° |
| Lens Mount | M16 |
| Auto-Iris | No |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3 Axis Adjustment | Pan: 0° to 360°, tilt: 0° to 90° |
| COMPRESSION STANDARD | |
| Video Compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| IMAGE | |
| Max. Resolution | 2560 x 1440 |
| Main Stream | 50Hz: 25fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60Hz: 24fps (2560 x 1440), 30fps (2304 x 1296, 1920 x 1080, 1280 x 720) |
| Sub Stream | 50Hz: 25fps (640 x 480, 640 x 360, 320 x 240) 60Hz: 30fps (640 x 480, 640 x 360, 320 x 240) |
| Third stream | 50Hz: 1fps (1280 x 720, 640 x 480, 640 x 360, 352 x 288, 320 x 240) 60Hz: 1fps (1280 x 720, 640 x 480, 640 x 360, 352 x 288, 320 x 240) |
| Image Enhancement | BLC/3D DNR/HLC/Defog |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| ROI (Region of Interest) | No |
| NETWORK | |
| Network Storage | Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | V5.5.53 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS 4200, Hik Connect, iVMS 4500, iVMS 5200 |
| Web Browser | IE8+, Chrome 31.0 44, Firefox 30.0 51, Safari 8.0+ |
| INTERFACE | |
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| SVC | H.265 encoding and H.264 encoding support |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C 22 °F to +140 °F), humidity 95% or less (non condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W |
| Visible Light Range | Warm white LEDs (3000K), up to 30m |
| Protection Level | IP67 |
| Accessory | The wall mount is included in the package, and the wall mount model is DS 1292ZJ |
| Material | Front cover: metal, back cover: metal |
| Dimensions | Camera: 114 x 110 x 220 mm (4.5in x 4.3in x 8.7in) |
| Weight | Camera: 920 g (2 lb.) |
