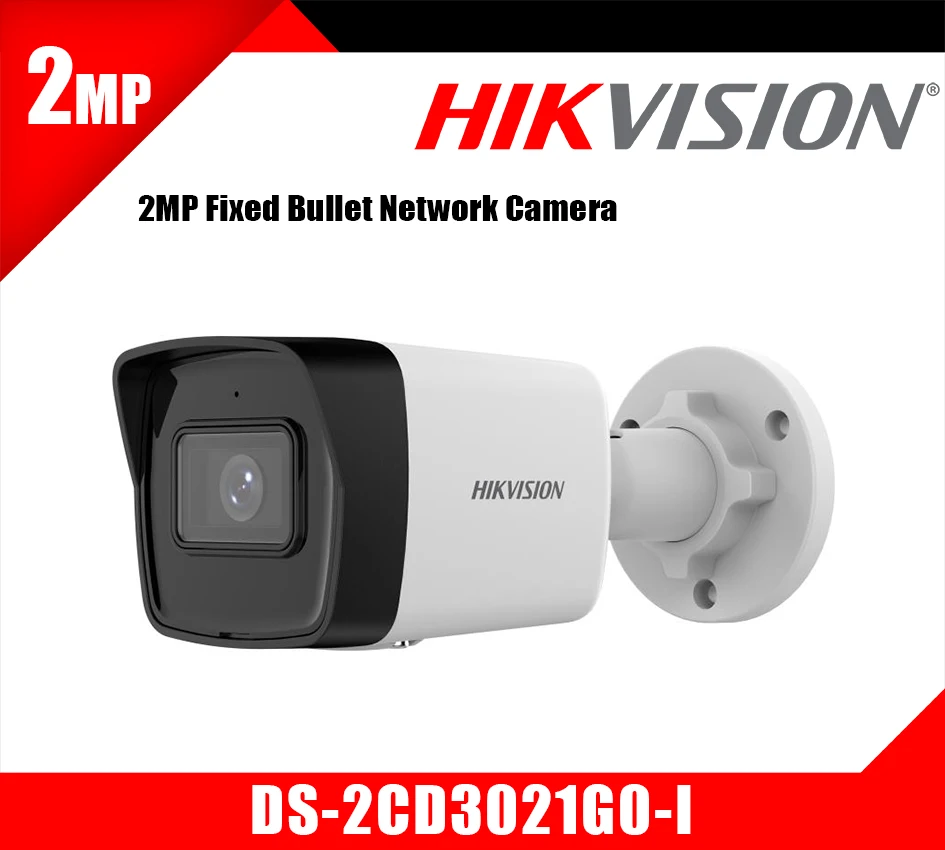

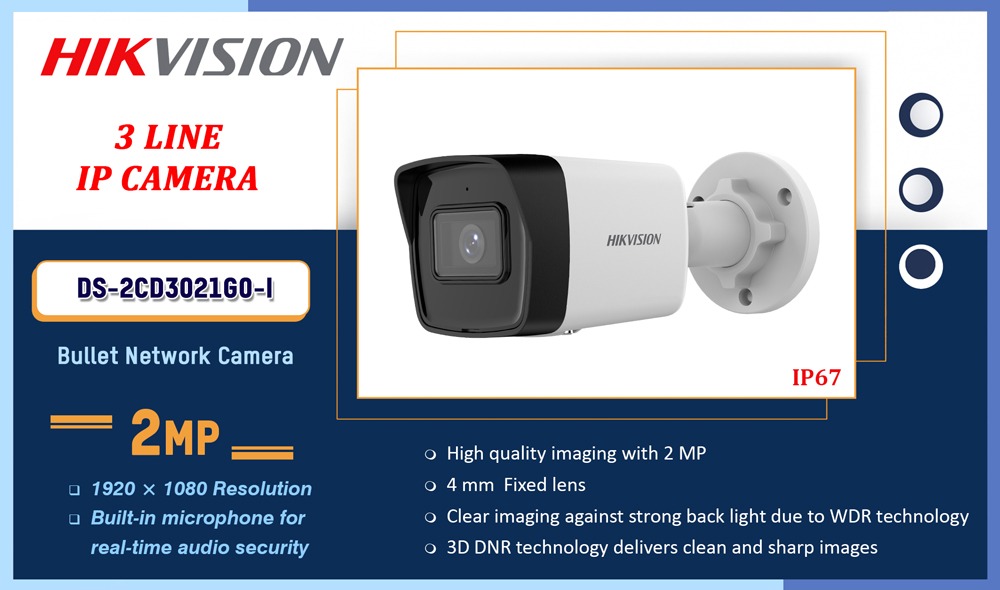

DS-2CD3021G0-I

Description

Datasheet: DS-2CD3021G0-I

User Manual: DS-2CD3021G0-I

Quick Start Guide: DS-2CD3021G0-I

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100, 000 s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focal Length & FOV
  • 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133°
  • 4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 109°
  • 6 mm, horizontal FOV 56°, vertical FOV 29°, diagonal FOV 65°
• Lens Mount: M12
• Aperture: F1.6

DORI

• DORI
  • 2.8 mm: D: 43 m, O: 17 m, R: 9 m, I: 5 m
  • 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 6 m
  • 6 mm: D: 86 m, O: 34 m, R: 17 m, I: 9 m

Illuminator

• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 1 fps (640 × 360)
  • 60 Hz: 1 fps (640 × 360)
• Video Compression
  • Main stream: H.265/H.264/H.265+/H.264+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect
• Web Browser
  • Plug-in required live view: IE 10+
  • lug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event: Motion detection, video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection
• Linkage: Upload to FTP, notify surveillance center, send email, trigger capture

General

• Power
  • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Material: Metal & Plastic
• Dimension: 170.8 mm × 66 mm × 69.1 mm (6.72″ × 2.59″ × 2.7″)
• Package Dimension: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• Weight: Approx. 270 g (0.6 lb.)
• With Package Weight: Approx. 481 g (1.1 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC
  • FCC SDoC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
  • KC (KN 32: 2015, KN 35: 2015)
• Safety
  • UL (UL 62368-1)
  • CB (IEC 62368-1: 2014+A11)
  • CE-LVD (EN 62368-1: 2014/A11: 2017)
  • BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
• Environment
  • CE-RoHS (2011/65/EU);
  • WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013)
