Description

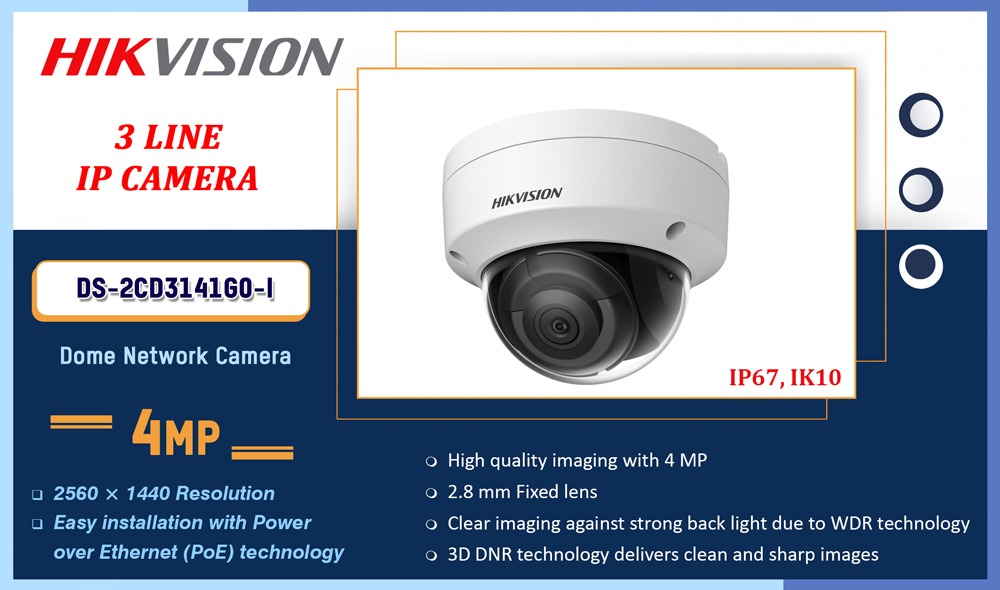

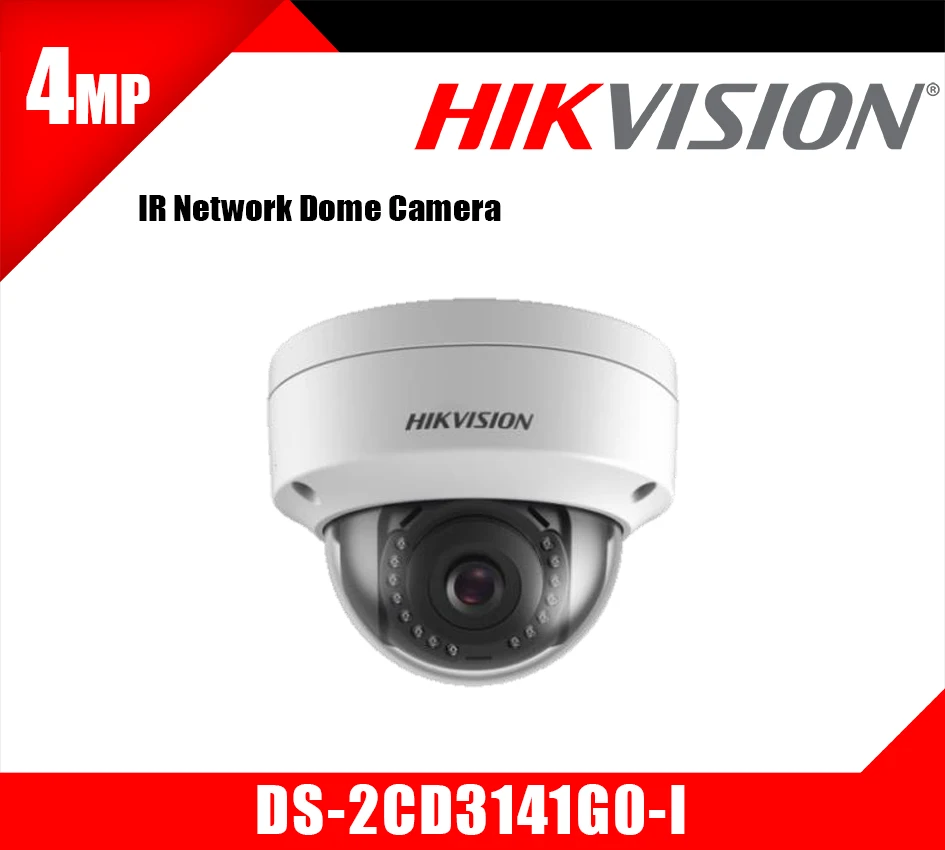

Datasheet: DS-2CD3141G0-I
User Manual: DS-2CD3141G0-I
Camera
- Image Sensor: 1/3″ Progressive Scan CMOS
- Min. Illumination: Color: 0.018 Lux @(F1.6, AGC ON), 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120dB
- Day & Night: ICR Cut
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
Lens
- Lens Type & FOV: 2.8 mm, horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°; 4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 88°; 6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57°
- Aperture: 2.8 mm: F2.0; 4 mm: F2.0; 6 mm: F1.6
- Lens Mount: M12
Illuminator
- IR Range: 30 m
- Wavelength: 850nm
- Smart Supplement Light: Yes
Video
- Max. Resolution: 2560 × 1440
- Main Stream: 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream: 50Hz: 1fps (1280 × 720, 640 × 360); 60Hz: 1fps (1280 × 720, 640 × 360)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG; third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Stream Type: Main stream/Sub-stream/Third stream
- Scalable Video Coding (SVC): H.265 and H.264 support
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Network
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (PROFILE S), ISAPI, SDK
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage: NAS (NFS, SMB/CIFS)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- SNR: ≥ 52 dB
- Privacy Mask: 4 regions of privacy mask
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event
- Smart Event: Line crossing detection, up to 1 line configurable; intrusion detection, up to 1 region configurable
Intelligent (Traditional Algorithm)
- Basic Event: Motion detection, video tampering alarm, exception (illegal login, HDD full, HDD error)
General
- Linkage Method: Upload to FTP, notify surveillance center, send email, trigger capture
- Firmware Version: 5.5.85
- Web Client Language: English, Russian, Portuguese, Spanish, Turkish, Italian, French, Polish
- General Function: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail
- Software Reset: Yes
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%; PoE: 802.3af, Type 1 Class 3
- Power Consumption and Current: 12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 7 W
- Power Interface: Φ5.5 mm coaxial power plug
- Material: Plastic upper cover, aluminum base
- Camera Dimension: Φ111 mm × 82.4 mm (Φ4.4″ × 3.2″)
- Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
- Camera Weight: 390 g (0.9 lb.)
- With Package Weight: 580 g (1.3 lb.)
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: Ingress protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
