Description

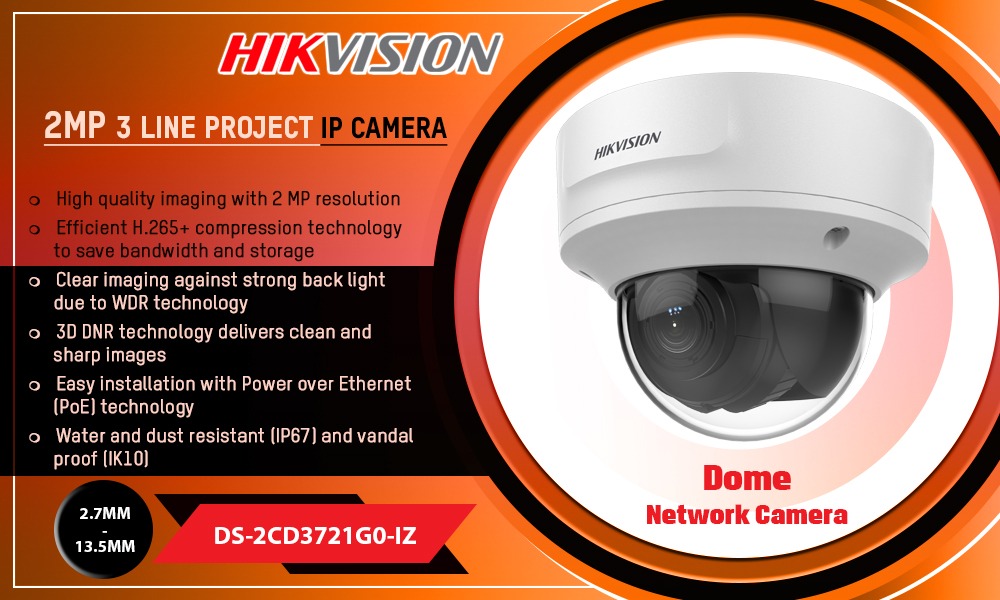

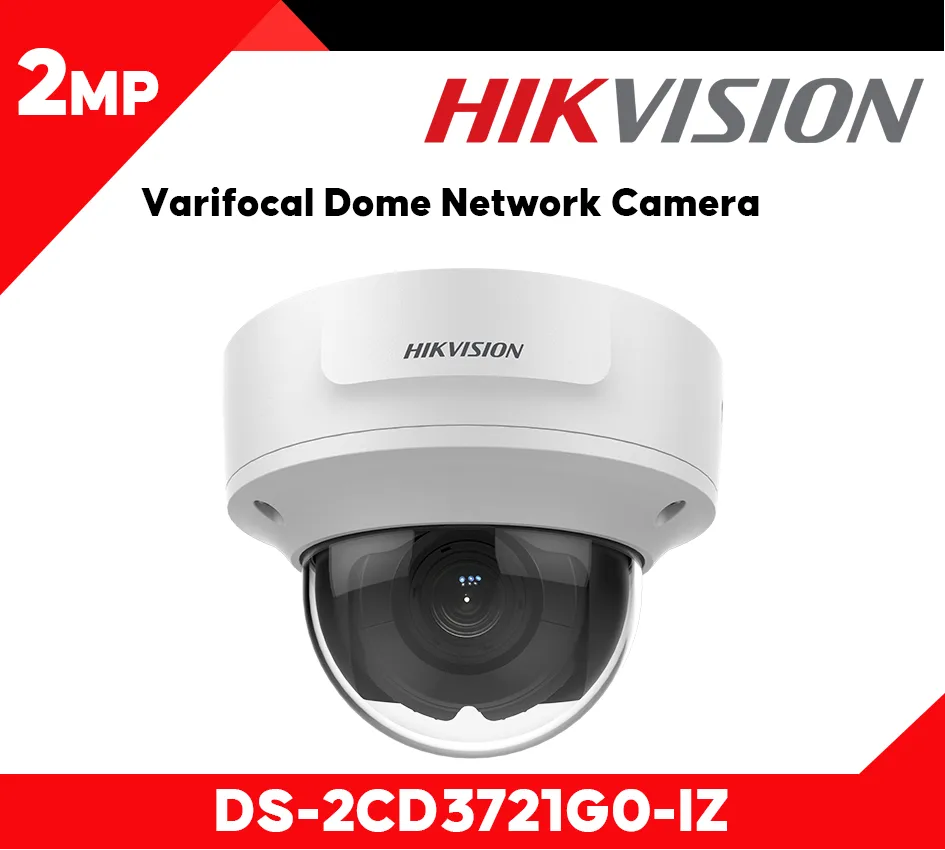

Datasheet: DS-2CD3721G0-IZ
User Manual: DS-2CD3721G0-IZ
Camera
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100, 000 s
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
- Lens Type: Varifocal Lens, motorized lens, 2.7 to 13.5 mm
- Focal Length & FOV: 2.7 to 13.5 mm: horizontal FOV 98° to 38°, vertical FOV 52° to 21°, diagonal FOV 115° to 43°
- Lens Mount: Ø14
- Iris Type: Fixed
- Aperture: F1.6
DORI
- DORI
- Varifocal lens:
- Wide: D: 44 m, O: 17 m, R: 8 m, I: 4 m
- Tele: D: 133 m, O: 52 m, R: 26 m, I: 13 m
- Varifocal lens:
Illuminator
- Supplement Light Range: Up to 40 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps ( 640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 1 fps (640 × 360)
- 60 Hz: 1 fps (640 × 360)
- Video Compression
- Main stream: H.265/H.264/H.265+/H.264+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Region Of Interest (ROI): 1 fixed region for main stream
Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Bit Rate: 64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps(AAC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface, ISAPI
- User/Host: Up to 32 users. 3 levels: administrator, operator and user
- Client: iVMS-4200, Hik-Connect
- Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Image Enhancement: BLC, 3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
- Audio
- 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
- 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 1 input, 1 output, (max. 12 VDC, 30 mA)
- Reset Key: Yes
Event
- Basic Event: Motion detection, video tampering alarm, exception
- Smart Event: Line crossing detection, intrusion detection
- Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
Deep Learning Function
- Perimeter Protection: Line crossing, intrusion
General
- Power: 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.33 A to 0.21 A, max. 12 W
- Dimension: Ø153.3 mm × 111.6 mm (6″ × 4.4 “)
- Package Dimension: 239 mm × 169 mm × 160 mm (9.4″ × 6.7″ × 6.3″)
- Weight: Approx. 880 g (1.9 lb.)
- With Package Weight: Approx. 1300 g (2.9 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
- EMC
- FCC SDoC (47 CFR Part 15, Subpart B);
- CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
- KC (KN 32: 2015, KN 35: 2015)
- Safety
- UL (UL 62368-1);
- CB (IEC 62368-1:2014+A11);
- CE-LVD (EN 62368-1:2014/A11:2017);
- BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005)
- Environment
- CE-RoHS (2011/65/EU);
- WEEE (2012/19/EU);
- Reach (Regulation (EC) No 1907/2006)
- Protection
- IP67 (IEC 60529-2013);
- IK10 (IEC 62262:2002)
