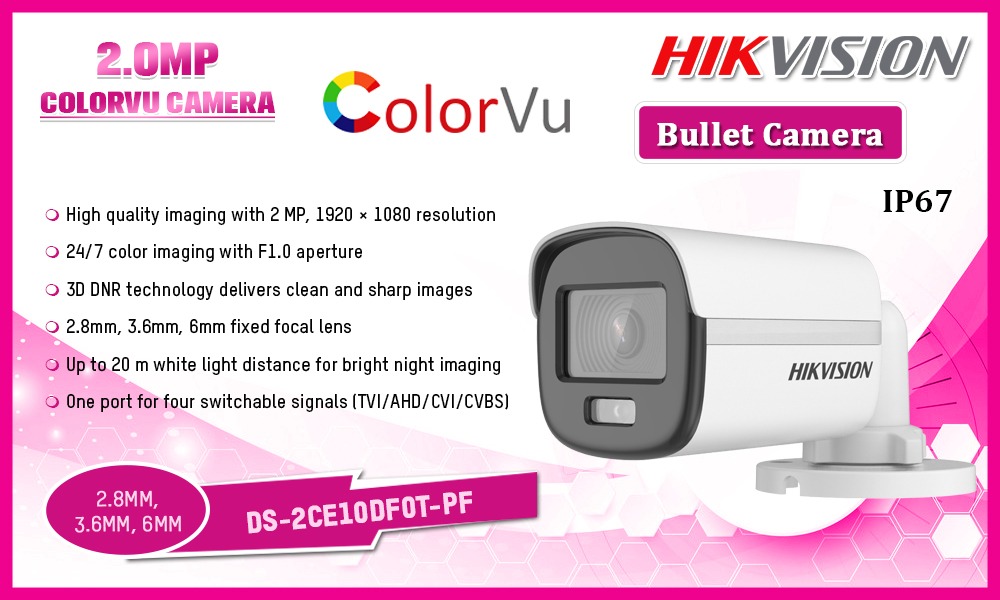

DS-2CE10DF0T-PF

Description

Datasheet: DS-2CE10DF0T-PF

User Manual: DS-2CE10DF0T-PF

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Signal System: PAL/NTSC

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV
  • 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°
  • 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°
  • 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°
• Lens Mount: M12

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: White Light Distance: Up to 20 m
• Smart Supplement Light: Yes


• Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Image Settings: Brightness; Mirror; Sharpness; Anti-Banding; AGC
• Frame Rate
  • TVI: 1080p@25fps/30fps
  • CVI: 1080p@25fps/30fps
  • AHD: 1080p@25fps/30fps
  • CVBS: PAL/NTSC
• Day/Night Mode: Color
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: BLC; HLC; Global
• Noise Reduction: 3D DNR/2D DNR
• White Balance: Auto/Manual

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Alarm: Solid Light Alarm (White Light)

General

• Power: 12 VDC ± 25%
  *You are recommended to use one power adapter to supply the power for one camera.
  Max. 2.4 W
• Material: Plastic
• Dimension: 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
• Weight: Approx. 229 g (0.50 lb)
• Operating Condition: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English

Approval

• Protection: IP67
