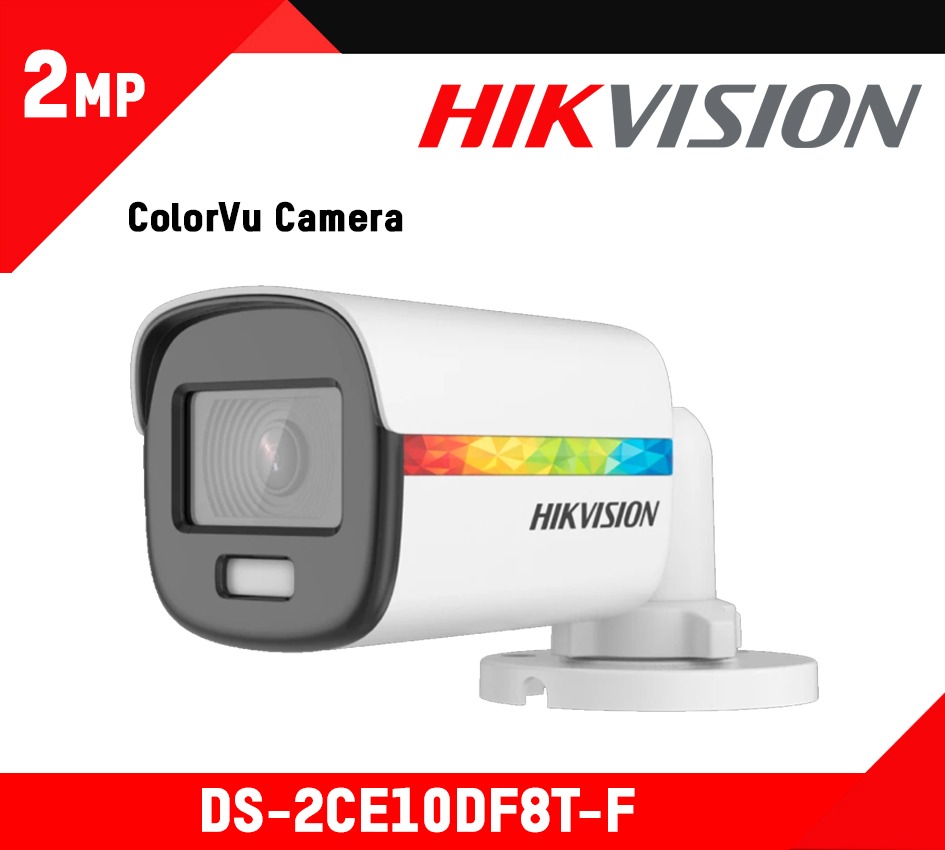

DS-2CE10DF8T-F

Description

Datasheet : DS-2CE10DF8T-F

User Manual: DS-2CE10DF8T-F

Camera

• Image Sensor: 2 MP CMOS
• Signal System: PAL/NTSC
• Resolution: 1920 (H) × 1080 (V)
• Frame Rate
  • TVI: 1080p@25fps/30fps
  • CVI: 1080p@25fps/30fps
  • AHD: 1080p@25fps/30fps
  • CVBS: PAL/NTSC
• Min. Illumination: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Slow Shutter: Max. 16 times
• Lens: 2.8 mm, 3.6 mm, 6 mm Fixed Lens
• Field Of View
  • 2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129°
  • 3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°
  • 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 64°
• Lens Mount: M12
• Light Alarm: Solid Light Alarm (White Light)
• Day & Night: 24/7 Color Imaging
• WDR (Wide Dynamic Range): ≥130 dB
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°


• White Light: Auto/Off
• Image Mode: STD/HIGH-SAT/HIGHLIGHT
• AGC: Yes
• Day/Night Mode: Color
• White Balance: Auto
• AE (Auto Exposure) Mode: HLS;Global;HLC;BLC;WDR
• Privacy Mask: 4 programmable privacy masks
• Motion Detection: 4 programmable motion areas
• Noise Reduction: 3D DNR/2D DNR
• Language: English
• Function: Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply
  • 12 VDC ± 25%,

    *You are recommended to use one power adapter to supply the power for one camera.

• Consumption: Max. 3.1 W
• Protection Level: IP68
• Material: Metal
• White Light Range: Up to 20 m
• Communication: HIKVISION-C
• Dimension: 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″), Approx. 390 g (0.86 lb.)
