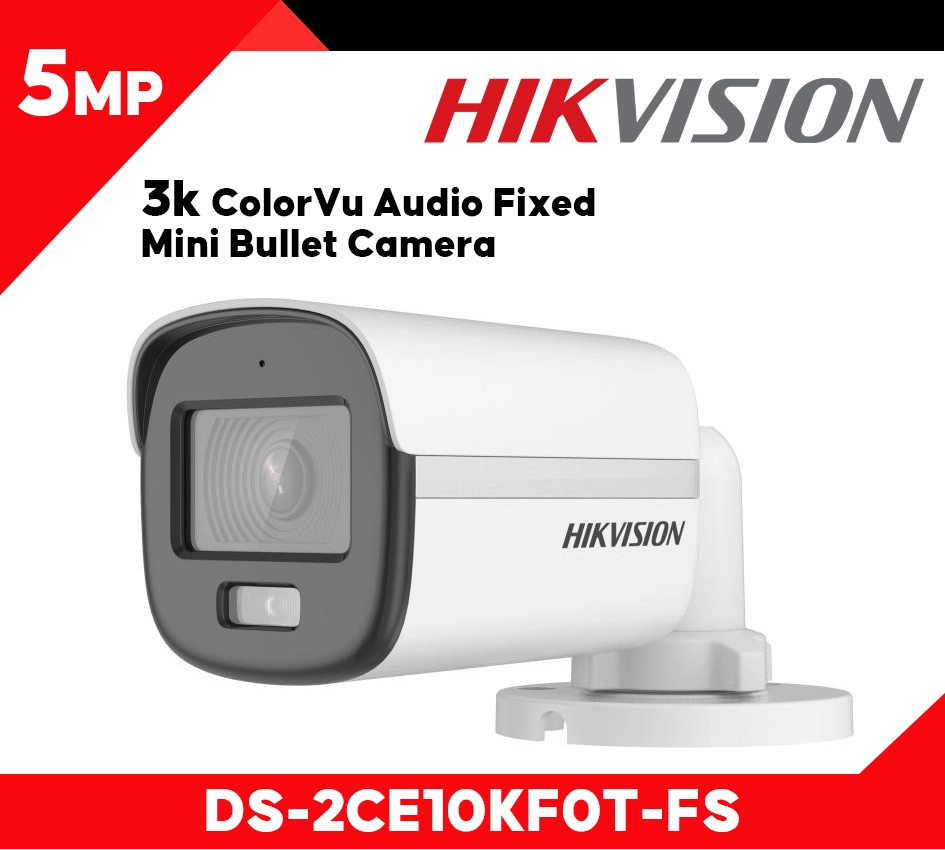

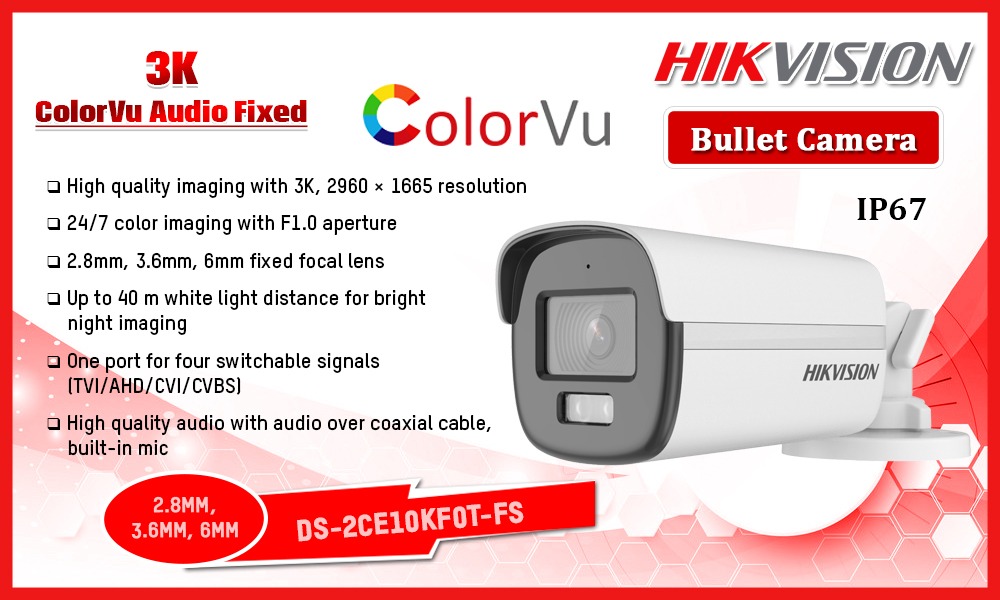

DS-2CE10KF0T-FS

Description

Datasheet: DS-2CE10KF0T-FS

User Manual: DS-2CE10KF0T-FS

Quick Start Guide: DS-2CE10KF0T-FS

Specification

Camera

• Image Sensor: 3K CMOS
• Signal System: PAL/NTSC
• Resolution: 2960 (H) × 1665 (V)
• Frame Rate
  • TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps
  • AHD: 5 MP@20fps, 4 MP@25fps/30fps
  • CVI: 4 MP@25fps/30fps
  • CVBS: PAL/NTSC
• Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens: 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Field Of View
  • 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
  • 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
  • 6 mm, horizontal FOV: 56°, vertical FOV: 30°, diagonal FOV: 61°
• Lens Mount: M12
• Light Alarm: Solid Light Alarm (White Light)
• Day & Night: 24/7 Color Imaging
• WDR (Wide Dynamic Range): Digital WDR
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°


• White Light: Auto/Off
• Image Mode: STD/HIGH-SAT/HIGHLIGHT
• AGC: Yes
• Day/Night Mode: Color
• White Balance: Auto/Outdoor/Global/Manual
• AE (Auto Exposure) Mode: BLC;HLC;Global;HLS;DWDR
• Noise Reduction: 2D DNR
• Language: English
• Function: Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Audio In: Built-in mic

General

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply: 12 VDC ± 25%,

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption: Max. 3.5 W
• Protection Level: IP67
• Material: Metal
• White Light Range: Up to 40 m
• Communication: HIKVISION-C
• Dimension: 194.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″)
• Weight: Approx. 522 g (1.51 lb.)
