Description

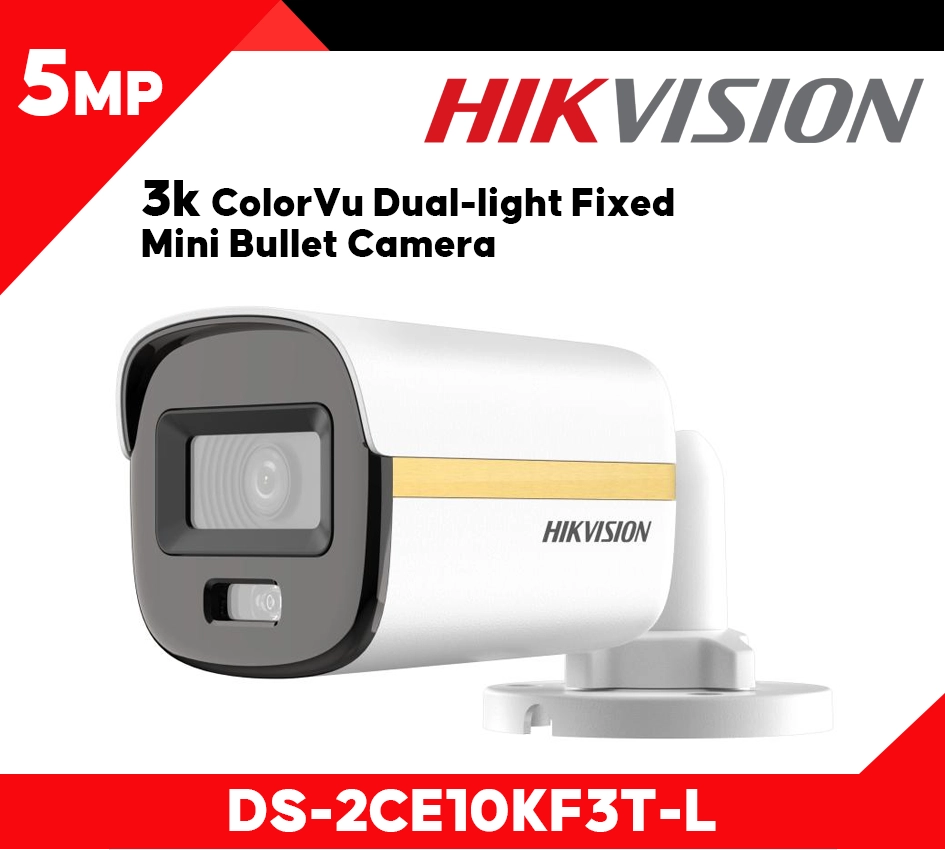

Datasheet : DS-2CE10KF3T-L
User Manual : DS-2CE10KF3T-L
Specification
Camera
- Image Sensor: 3K CMOS
- Signal System: PAL/NTSC
- Max. Resolution: 2960 (H) × 1665 (V)
- Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
- Lens Type: 2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 139°
- 3.6 mm, horizontal FOV: 90°, vertical FOV: 49°, diagonal FOV: 105°
- Lens Mount: M12
Illuminator
- Supplement Light Range: IR: Up to 20 m,White Light: Up to 20 m
- Smart Supplement Light: Yes
- Frame Rate: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
- Wide Dynamic Range (WDR): ≥130 dB
- Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
- AGC: Yes
- Day/Night Mode: Auto/Color/BW (Black and White)
- White Balance: Auto/Outdoor/Global/Manual
- Image Enhancement: WDR;Global;HLC;BLC;HLS
- Noise Reduction: 3D DNR/2D DNR
- Image Settings: Brightness;Contrast;Mirror;Smart Light;Anti-Banding
Interface
- Video Output: 1 HD analog output
Event
- Motion Detection: 4 programmable motion areas
General
- Power: 12 VDC ± 25%, 0.47 A, max. 5.7 W,*You are recommended to use one power adapter to supply the power for one camera.
- Language: English
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
- Material: Metal
- Communication: HIKVISION-C
- Dimension: 161.1 mm × 68.4 mm × 65.2 mm (6.34″ × 2.69″ × 2.57″)
- Weight: Approx. 405 g (0.89 lb.)
Approval
