Description

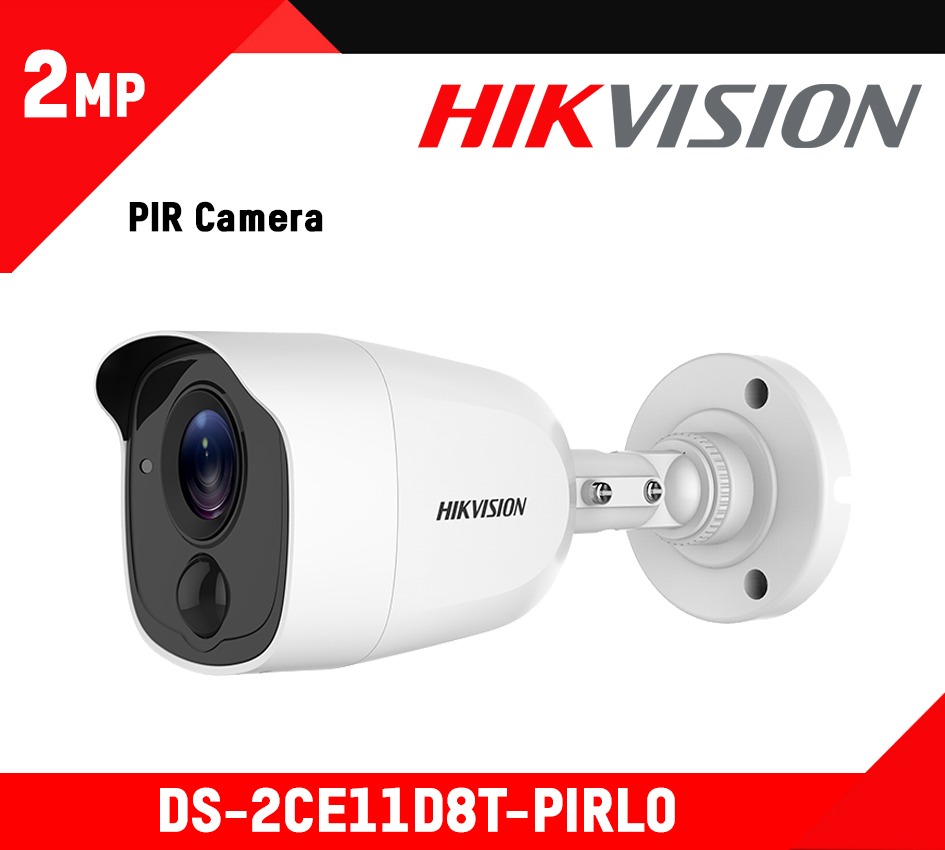

Datasheet : DS-2CE11D8T-PIRLO
User Manual: DS-2CE11D8T-PIRLO
Model |
DS-2CE11D8T-PIRLO |
|
|---|---|---|
Camera |
||
| Slow Shutter: | Max. 16 times | |
| Angle Adjustment: | Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360° | |
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
| Lens: | 2.8 mm, 3.6 mm fixed focal lens | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter | |
| Horizontal Resolution: | 1920 (H) × 1080 (V) | |
| Video Frame Rate: | PAL: 1080p@25fps NTSC: 1080p@30fps |
|
| Synchronization: | Internal Synchronization | |
Lens |
||
| Horizontal Field of View: | 103.5°(2.8 mm), 82.6°(3.6 mm) | |
Menu |
||
| White Light: | Alarm/Off | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| Auto White Balance: | ATW/MANUAL | |
| Private Mask: | ON/OFF, 4 programmable privacy masks | |
| AGC: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, Mirror, Smart IR | |
Interface |
||
| Video Out: | 1 HD analog output | |
General |
||
| IR Range: | Up to 30 m | |
| Ingress Protection: | IP67 | |
| PIR Range: | Angle: 110°, Range:11 m | |
| Visual Alarm: | Yes | |
| Material: | Metal | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) | |
| Dimension: | 68 mm × 70 mm × 179.8 mm ( 2.68″ × 2.76″ × 7.08″ ) | |
| Weight: | Approx. 345 g (0.76 lb.) | |
