Description

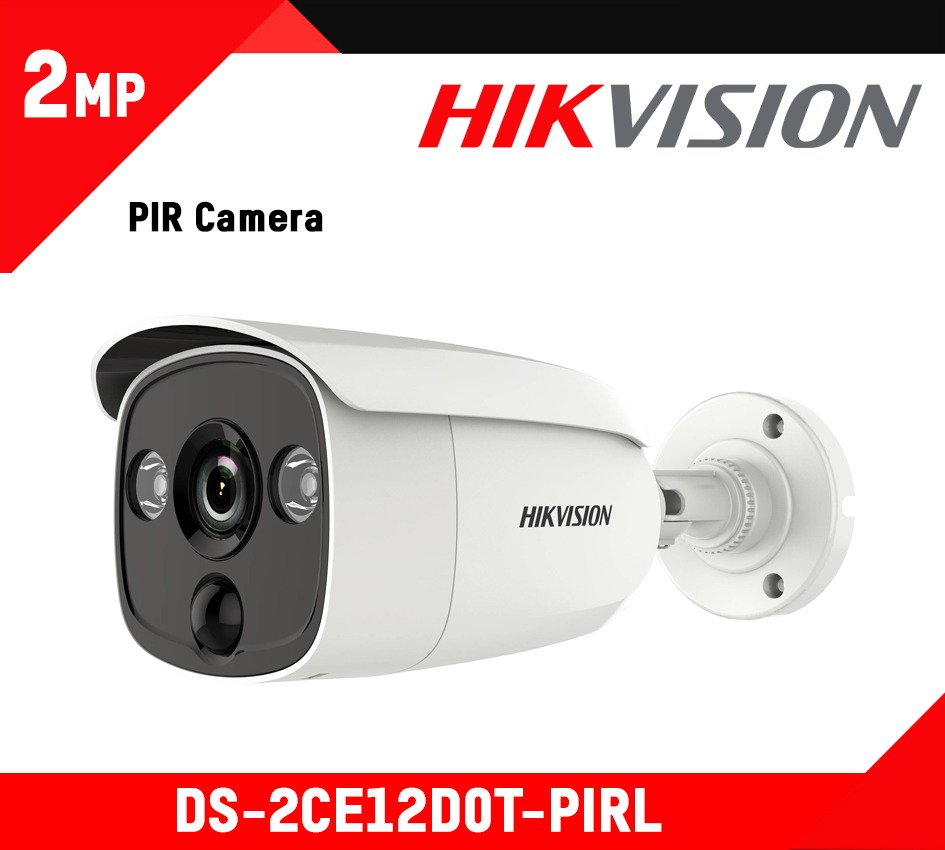

Datasheet: DS-2CE12D0T-PIRL
User Manual: DS-2CE12D0T-PIRL
Camera
- Image Sensor: 2.0 megapixel progressive scan CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV: 103° (2.8 mm), 82.2° (3.6 mm)
- Lens Mount: M12
- Image Settings: Brightness, Contrast, Sharpness, Saturation, DNR, Mirror
- Frame Rate: PAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Image Enhancement: BLC
- White Balance: Auto/Manual
- White Light: Auto/Off
- AGC: Low/middle/high
Supplement Detection(PIR)
- PIR Range: Angle: 110°, Range:11 m
Interface
- Video Output: TVI only
- Alarm: Yes
General
- Material: Front cover: Metal,Main body: Plastic,Bracket: Metal
- Dimension: 88.6 mm × 81.3 mm × 224.7 mm (3.49″ × 3.20″ × 8.85″ )
- Weight: Approx. 430 g (0.95 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Language: English, Chinese
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 4.5 W
- IR Range: Up to 20 m
- White Light Range: Up to 20 m
Approval
- Protection: IP67
