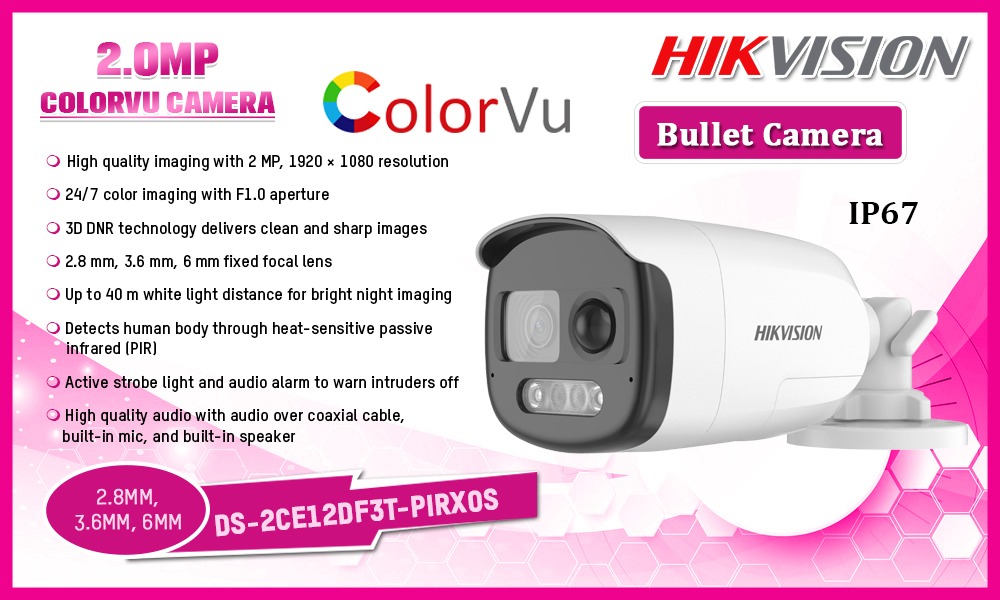

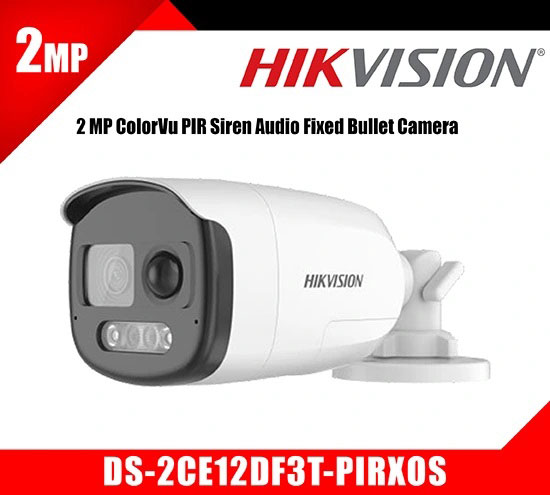

DS-2CE12DF3T-PIRXOS

Description

Datasheet: DS-2CE12DF3T-PIRXOS

User Manual: DS-2CE12DF3T-PIRXOS

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night: 24/7 Color Imaging
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
• Signal System: PAL/NTSC
• Slow Shutter: Max. 16 times
• Light Alarm: Flashing Light Alarm (Red & Blue)

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV
  • 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
  • 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
  • 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
• Lens Mount: M12


• Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Image Settings: Brightness; Contrast; Mirror; Defective Pixel Correction; Sharpness; Anti-Banding; Smart Light
• Frame Rate: TVI: 1080p @ 25 fps/30 fps
• Day/Night Mode: Color
• Wide Dynamic Range (WDR): ≥130 dB
• Image Enhancement: WDR; BLC; HLC; Global; HLS
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR/2D DNR
• White Balance: Auto/Manual
• White Light: Auto/Off
• AGC: Yes

Supplement Detection(PIR)

• PIR Range: Angle: 110°, Range: 11 m

Interface

• Video Output: 1 HD analog output
• Alarm: 1 line out
• Audio: Built-in mic

Event

• Motion Detection: 4 programmable motion areas

General

• Material: Front cover: Metal, Main body: Plastic
• Dimension: 82.6 mm × 77.1 mm × 213.2 mm (3.25″ × 3.04″ × 8.39″)
• Weight: Approx. 467 g (1.03 lb.)
• Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ± 25%,
  *You are recommended to use one power adapter to supply the power for one camera.
• Consumption: Max. 11.4 W
• White Light Range: Up to 40 m

Approval

• Protection: IP67
