Description

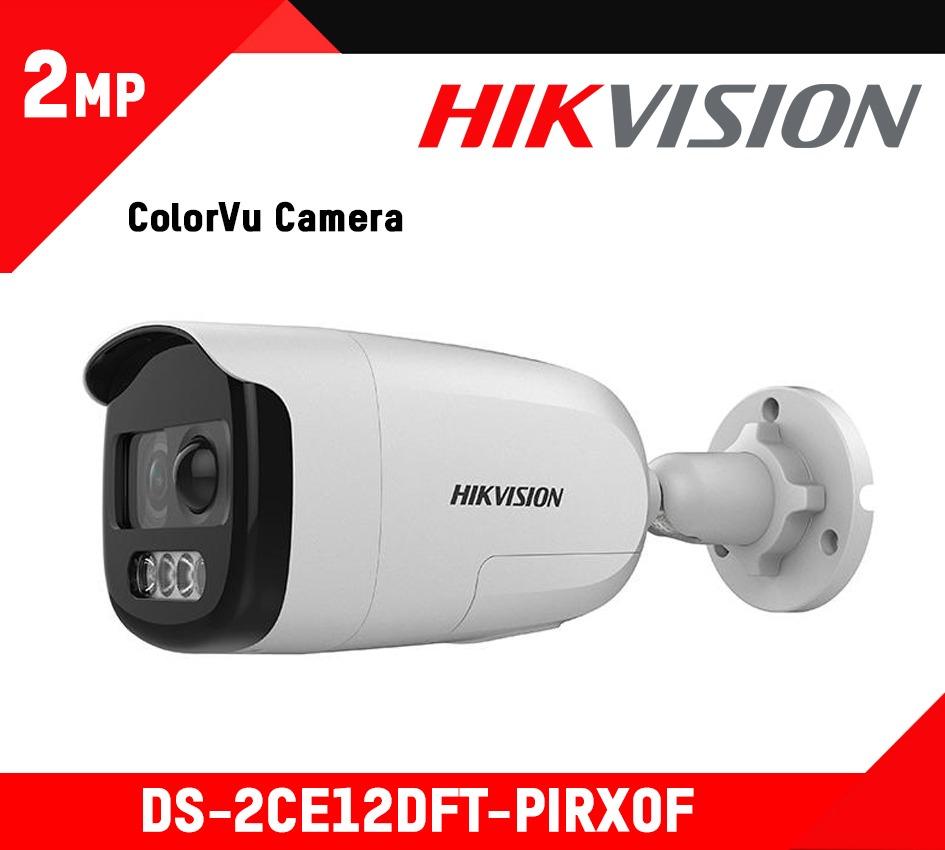

Datasheet : DS-2CE12DFT-PIRXOF
User Manual : DS-2CE12DFT-PIRXOF
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: Color
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
- 3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0°
- 6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7°
- Lens Mount: M16
Illuminator
- Supplement Light Range: Up to 40 m
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, Mirror, Smart Light, Defective Pixel Correction
- Frame Rate
- TVI: 1080p@30fps, 1080p@25fps
- AHD: 1080p@30fps, 1080p@30fps
- CVI: 1080p@30fps, 1080p@25fps
- CVBS: PAL/NTSC
- Wide Dynamic Range (WDR): ≥130 dB
- Image Enhancement: BLC, HLC
- White Balance: ATW/MANUAL
- White Light: AUTO/OFF
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material
- Front Cover: Metal
- Main Body: Plastic
- Dimension: 77.1 mm × 82.6 mm × 208.9 mm (3.04″ × 3.25″ × 8.22″)
- Weight: Approx. 441 g ( 0.97 lb.)
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 8.5 W
Approval
- Protection: IP67
