Description

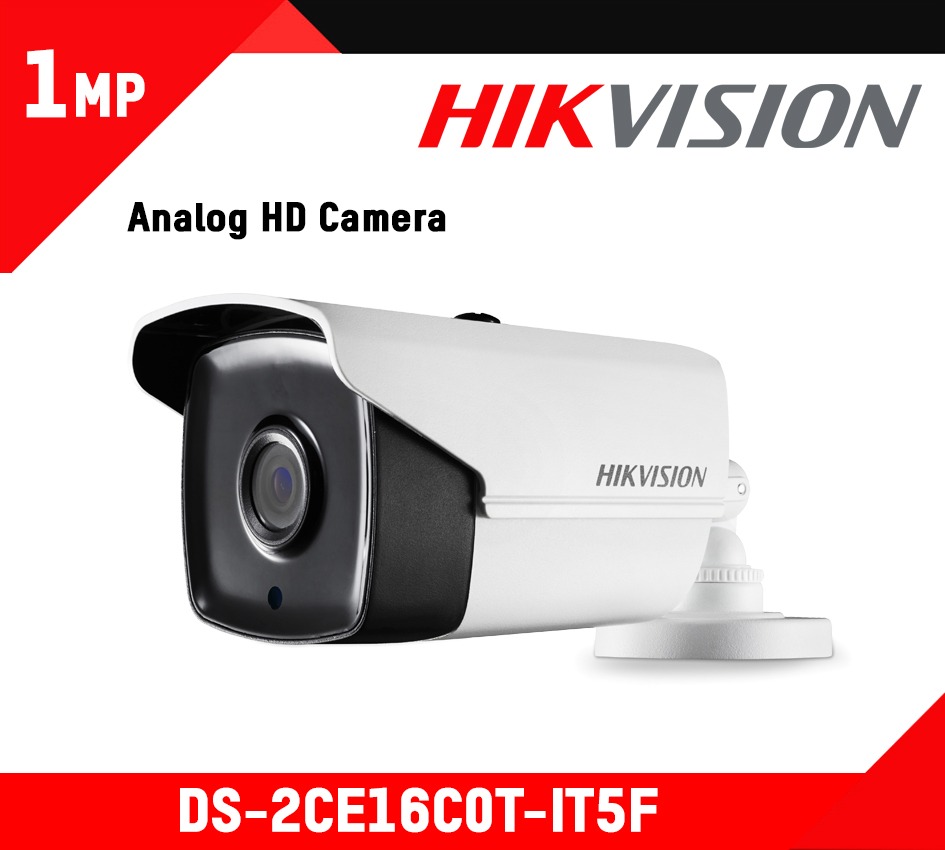

Datasheet: DS-2CE16C0T-IT5F
User Manual: DS-2CE16C0T-IT5F
Camera
- Image Sensor: 1 MP CMOS Image Sensor
- Max. Resolution: 1296 (H) × 732 (V)
- Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1/25 (1/30) s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: Field of view: 70.9° (3.6 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm)
- Lens Mount: M12
- Frame Rate: 720p@25fps/720p@30fps
- SNR: >62dB
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Dimension: 86.7 mm × 81.6 mm × 226 mm(3.4″ × 3.2″ × 8.9″)
- Weight: 700 g (1.54 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Power Supply: 12 V DC±15%
- Consumption: Max. 5 W
- IR Range: Up to 80 m
Approval
- Protection: IP66
