Description

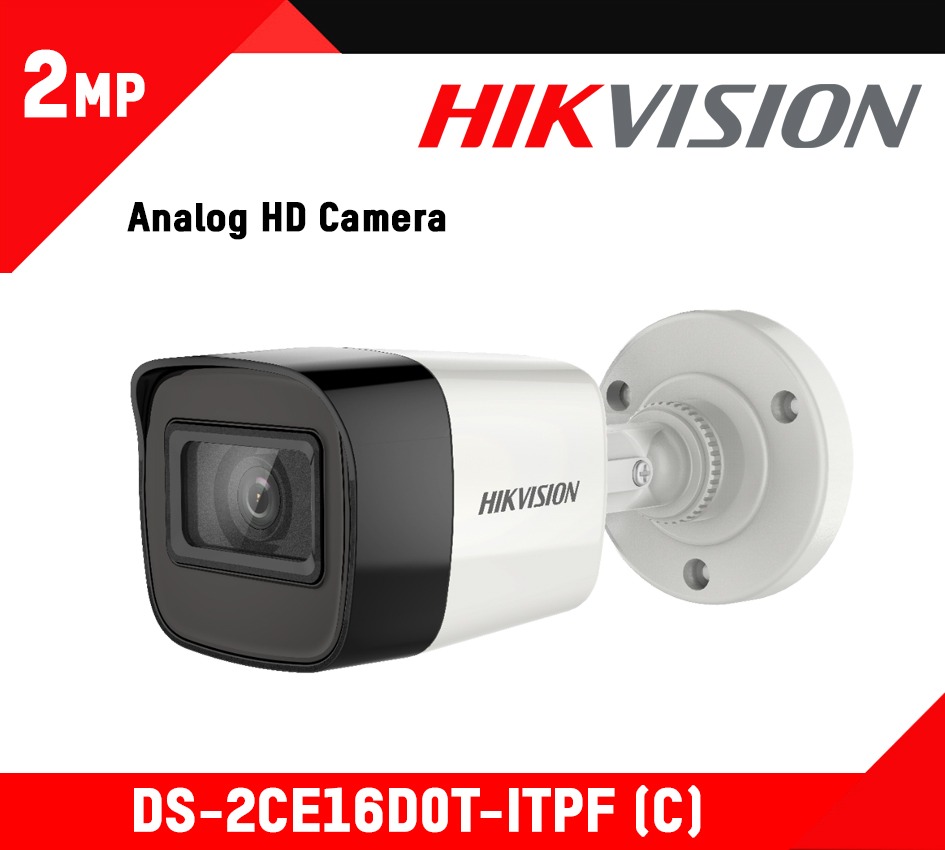

Datasheet: DS-2CE16D0T-ITPF (C)
User Manual: DS-2CE16D0T-ITPF (C)
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
- 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
- 6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°
- Lens Mount: M12
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 1080P@30fps, 1080P@25fps
- CVI: 1080P@30fps, 1080P@25fps
- AHD: 1080P@30fps, 1080P@25fps
- CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC, HLC
- White Balance: ATW/MANUAL
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Plastic
- Dimension: 57.9 mm × 60.9 mm × 138.8 mm (2.28″ × 2.39″ × 5.47″)
- Weight: Approx. 141 g (0.31 lb.)
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Communication: HIKVISION-C
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 2.2 W
- IR Range: Up to 25 m
Approval
- Protection: IP67
