Description

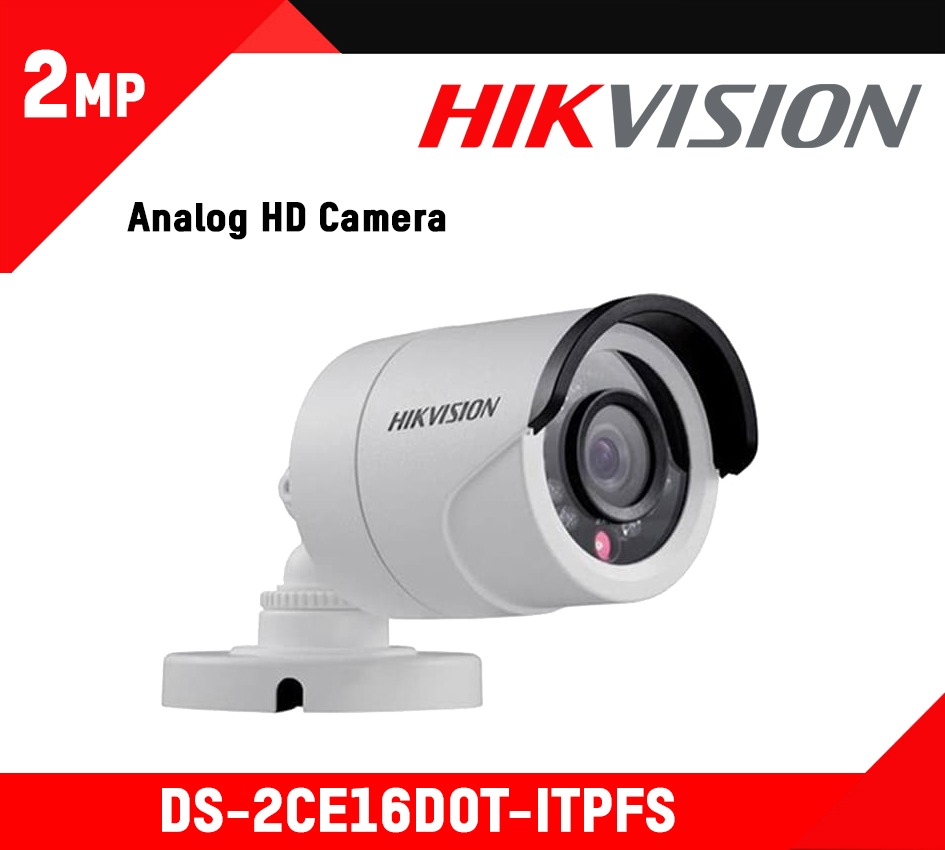

User Manual : DS-2CE16DOT-ITPFS
Data Sheet : DS-2CE16DOT-ITPFS
| Camera | |
|---|---|
| Lens : | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Horizontal Field Of View : | 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm) |
| Lens Mount : | M12 |
| Day & Night : | IR cut filter |
| Synchronization : | Internal synchronization |
| Angle Adjustment : | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Image Sensor : | 2MP CMOS Image Sensor |
| Signal System : | PAL/NTSC |
| Frame Rate : | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution : | 1920 (H) × 1080 (V) |
| Min. Illumination : | 0.01 Lux@(F1.2,AGC ON),0 Lux with IR |
| Shutter Time : | 1/25 (1/30) s to 1/50,000 s |
| Menu | |
| AGC : | Low/middle/high |
| Day/Night Mode : | Smart/color/BW(Black and White) |
| Backlight Compensation : | Yes |
| DWDR (Digital Wide Dynamic Range) : | Yes |
| Language : | English, Chinese |
| Functions : | Brightness, Sharpness, DNR, Mirror |
| Interface | |
| Video Output : | 1 HD analog output |
| Switch Button : | TVI/AHD/CVI/CVBS |
| General | |
| Operating Condition : | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply : | 12 VDC±15% |
| Power Consumption : | Max. 4 W |
| Material : | Plastic |
| IR Range : | Up to 20 m |
| Dimensions : | Φ 70 mm × 154.5 mm ( 2.76″ × 6.08″) |
| Weight : | Approx. 400 g (0.88 lb.) |
| Ingress Protection : | IP66 |
