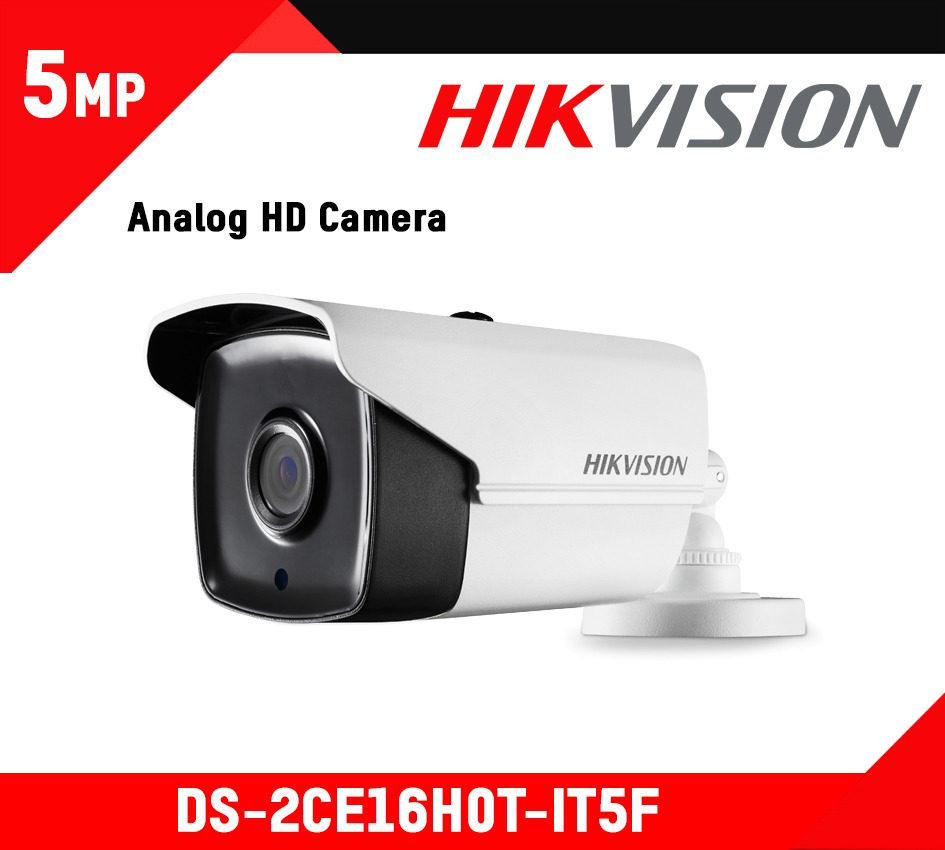

User Manual : DS-2CE16H0T-IT5F
| Model | DS-2CE16H0T-IT5F |
|---|---|
| Image Sensor: | 5MP CMOS Image Sensor |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360° |
| Day& Night: | IR cut filter with auto switch |
| Video Frame Rate: | 2560 × 1944 @ 20fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| D/N Mode: | Auto / Color / B/W |
| Auto White Balance: | Auto/MWB |
| BLC: | Support |
| Language: | English |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±25% |
| Weather Proof: | IP67 |
| IR Range: | Up to 80m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | 86.7 mm × 81.6 mm × 226 mm (3.41″ × 3.23″ × 8.67″) |
| Weight: | Approx. 680 g (1.5 lb.) |
