Description

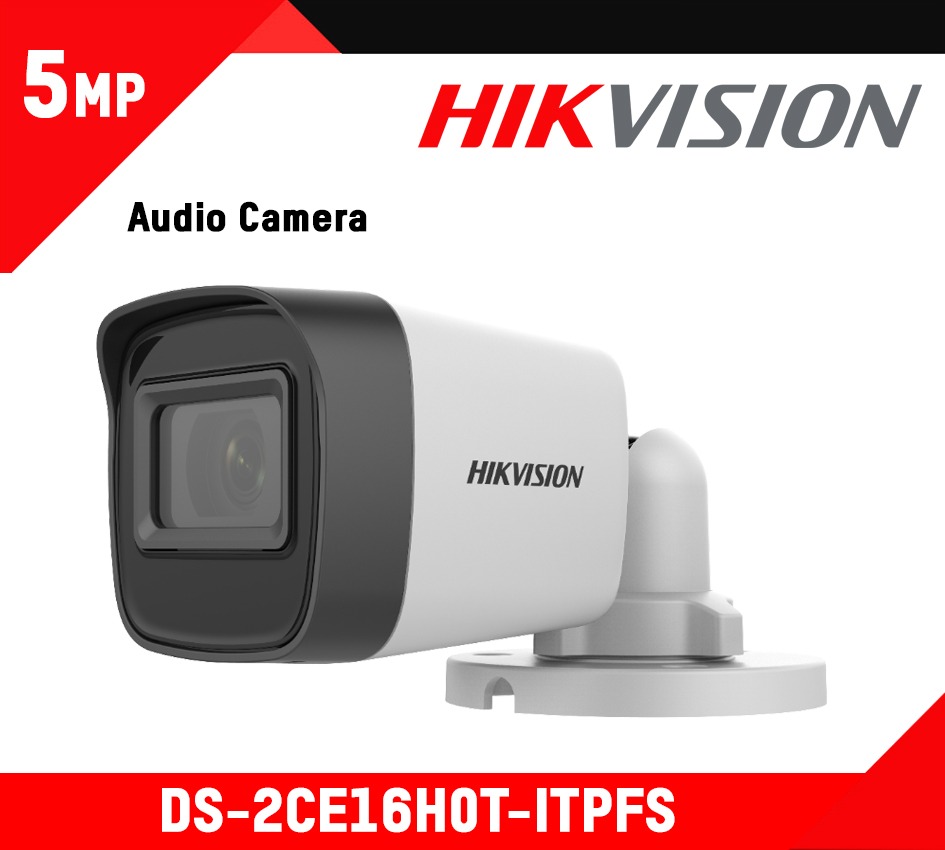

Data Sheet : DS-2CE16H0T-ITPFS
User Manual : DS-2CE16H0T-ITPFS
| Camera | |
|---|---|
| Lens : | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Horizontal Field Of View : | 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm) |
| Lens Mount : | M12 |
| Day & Night : | IR cut filter |
| Synchronization : | Internal synchronization |
| Angle Adjustment : | Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360° |
| Image Sensor : | 5 MP CMOS image sensor |
| Frame Rate : | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| Resolution : | 2560 (H) × 1944 (V) |
| Min. Illumination : | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time : | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Menu | |
| AGC : | Support |
| Day/Night Mode : | Auto/Color/BW (Black and White) |
| White Balance : | ATW/MWB |
| Backlight Compensation : | Support |
| DWDR (Digital Wide Dynamic Range) : | Support |
| Language : | English |
| Functions : | Brightness, Sharpness, DNR , Mirror, Smart IR |
| Interface | |
| Video Output : | 1 HD analog output |
| Switch Button : | TVI/AHD/CVI/CVBS |
| General | |
| Operating Condition : | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply : | 12 VDC ±25% |
| Power Consumption : | Max. 4.3 W |
| Protection Level : | IP67 |
| Material : | Plastic |
| IR Range : | Up to 20 m |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions : | 58 mm × 61 mm × 163 mm (2.28″ × 2.40″ × 6.42″) |
| Weight : | Approx. 350 g (0.77 lb.) |
