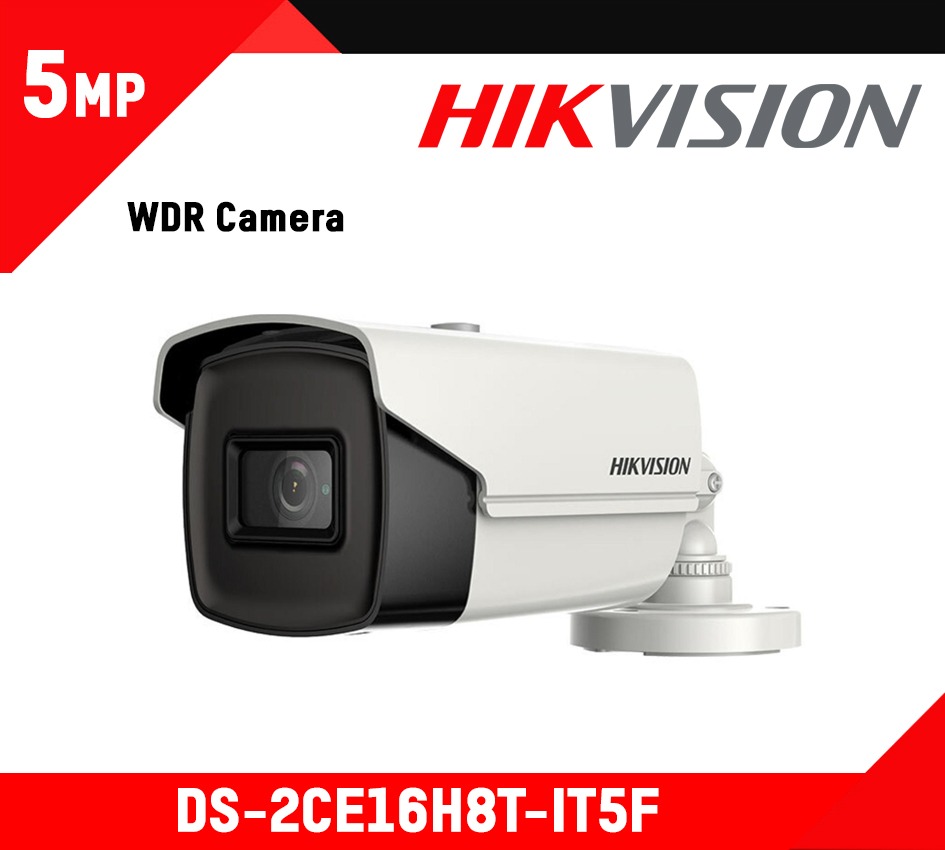

Quick Start Guide: DS-2CE16H8T-IT5F
Specification
| Lens : | 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens |
| Horizontal Field Of View : | 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm) |
| Lens Mount : | M12 |
| Day & Night : | IR cut filter |
| Synchronization : | Internal synchronization |
| WDR (Wide Dynamic Range) : | ≥ 130 dB |
| Angle Adjustment : | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| Image Sensor : | 5 megapixel progressive scan CMOS |
| Signal System : | PAL/NTSC |
| Frame Rate : | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC |
| Resolution : | 2560 (H) × 1944 (V) |
| Min. Illumination : | Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time : | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| AGC : | Yes |
| Day/Night Mode : | Auto/Color/BW (Black and White) |
| White Balance : | Auto/Manual |
| Privacy Mask : | 4 programmable privacy masks |
| Motion Detection : | 4 programmable areas |
| Backlight Compensation : | Yes |
| WDR : | Yes |
| 3D DNR (Digital Noise Reduction) : | Level 1 to 9 |
| Language : | English |
| Functions : | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Video Output : | 1 HD analog output |
| Switch Button : | TVI/AHD/CVI/CVBS |
| Operating Condition : | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Power Supply : | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption : | Max.6.6 W |
| Material : | Metal |
| IR Range : | Up to 80 m |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions : | 81.9 mm × 86.7 mm × 217.9 mm (3.22″ × 3.41″ × 8.58″) |
| Weight : | Approx. 570 g (1.26 lb.) |
| Ingress Protection : | IP67 |
