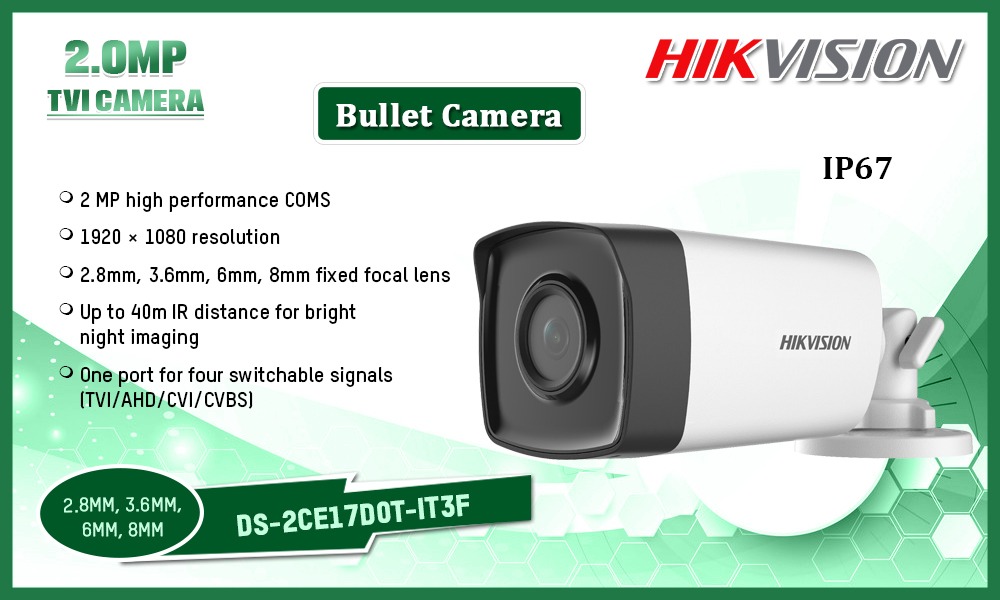

DS-2CE17D0T-IT3F

Description

Datasheet: DS-2CE17D0T-IT3F

User Manual: DS-2CE17D0T-IT3F

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal System: PAL/NTSC

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm fixed lens
• Focal Length & FOV
  • 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
  • 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
  • 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
  • 8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°
• Lens Mount: M12


• Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate
  • TVI: 1080P@30fps, 1080P@25fps
  • CVI: 1080P@30fps, 1080P@25fps
  • AHD: 1080P@30fps, 1080P@25fps
  • CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: DWDR/BLC/HLC/Global
• Noise Reduction: Yes
• White Balance: Auto/Manual
• AGC: Yes

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Material
  • Front Cover: Metal
  • Main Body: Plastic
• Dimension: 78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″)
• Weight: Approx. 320 g (0.71 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ± 25%
• Consumption: Max. 3.9 W
• IR Range: Up to 40 m

Approval

• Protection: IP67
